A single mislabeled cable can turn a routine maintenance task into hours of frustration, or worse, cause an unplanned outage that affects critical systems. Whether you’re managing a hospital’s network backbone or a government facility’s data room, cable labeling best practices aren’t just about keeping things tidy. They’re the difference between a team that can troubleshoot in minutes and one that’s still tracing lines with a flashlight at 2 a.m.
At Trindom Global, we design, build, and install structured cabling systems across healthcare, commercial, and government environments. Over years of headend buildouts and network installations, we’ve seen firsthand what separates a well-documented cable plant from a chaotic one. It almost always comes down to how cables are labeled from day one, and whether the labeling scheme follows recognized standards like ANSI/TIA-606.

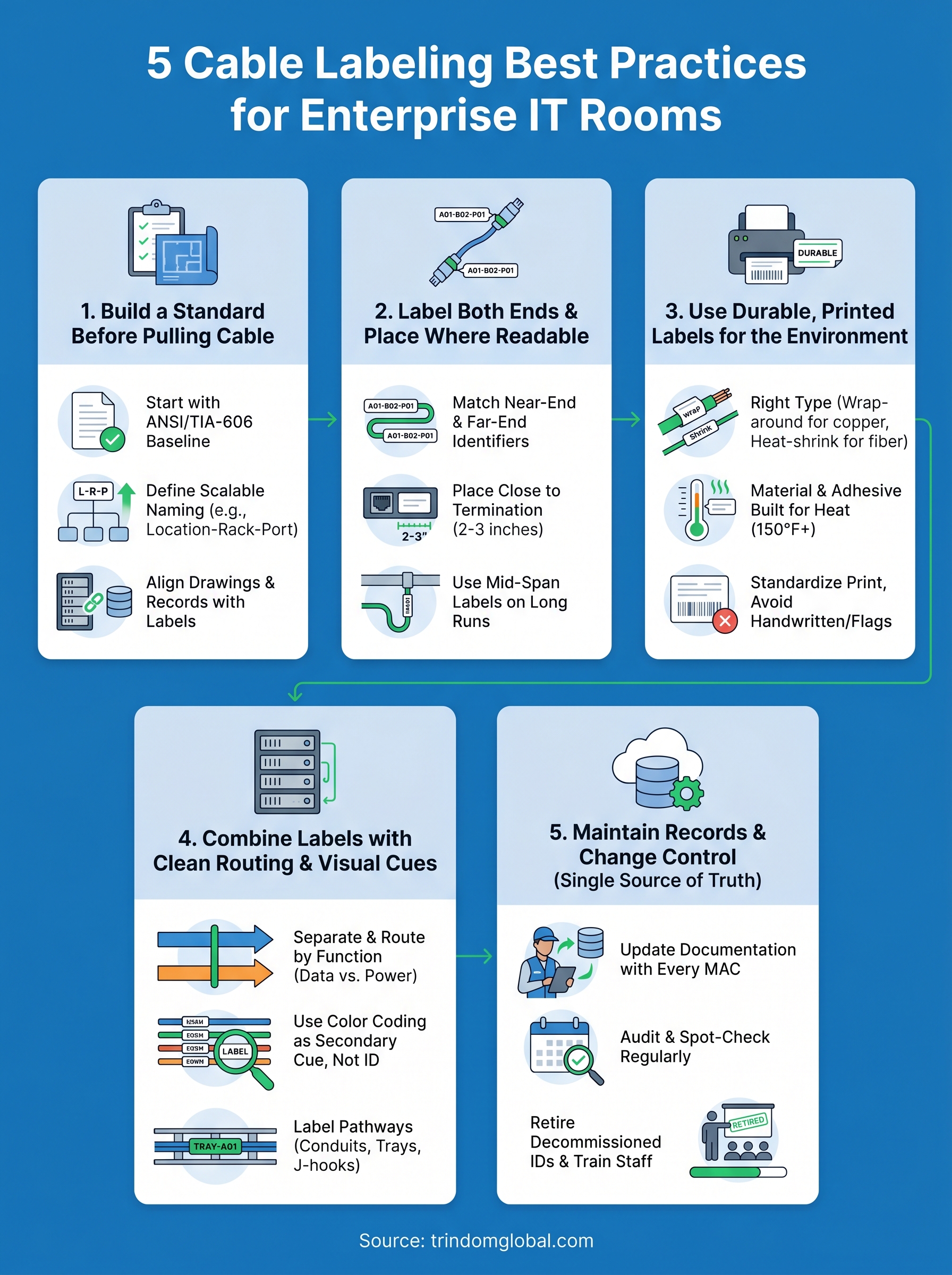

This article breaks down five proven practices that keep enterprise IT rooms organized, compliant, and ready for whatever comes next. Each one is drawn from real-world project experience and aligned with industry standards, so you can apply them whether you’re building a new infrastructure or cleaning up an inherited mess.
1. Build a labeling standard before you pull cable
Skipping this step is one of the most expensive mistakes on a cabling project. If you define your labeling scheme and documentation structure before installation begins, you avoid the far more painful work of retrofitting labels onto a live, finished cable plant.
Start with ANSI/TIA-606 as your baseline
ANSI/TIA-606 sets the administration standard for telecommunications infrastructure, covering identifiers for links, terminations, spaces, and pathways. Adopting it as your baseline gives your team and every future contractor a shared language from day one.
A recognized standard also makes third-party audits and facility expansions significantly easier to manage.
Define a naming convention that scales
Your convention needs to handle your current port count and at least double the capacity without requiring a format change. A location-rack-port prefix structure keeps IDs unique, self-describing, and sortable across the entire site.
Decide what goes on the label and what stays in records
Labels carry only the unique cable identifier. Circuit descriptions, IP assignments, and service details belong in your documentation system, not printed on the cable jacket. Keeping labels short reduces transcription errors and keeps them legible on small-diameter runs.
The documentation platform is where the full story lives. The label is simply the lookup key.
Align drawings, rack elevations, and port maps with labels
Every as-built drawing and rack elevation diagram must use the exact same identifiers you print on the cable. When every source matches, a tech can cross-reference the physical plant and documentation in under a minute.
Mismatches between drawings and labels are one of the most common causes of extended troubleshooting windows. Align them before installation starts, not after.
When to involve a design-build integrator like Trindom Global
Bringing in a design-build partner before the first conduit run lets you embed cable labeling best practices into the project scope from the start. Trindom Global works with clients during the planning phase to set labeling standards, documentation templates, and change-control rules before a single cable is pulled.
2. Label both ends and place labels where techs can read them
A cable with a label at only one end creates ambiguity the moment someone needs to trace it. Following cable labeling best practices means every run carries matching identifiers at both termination points so any tech can confirm the circuit without guessing.
Label both ends and match near-end and far-end identifiers
Print the same unique identifier on both ends of every run. The near-end and far-end labels must match exactly so a tech at either termination point can confirm the cable’s identity immediately without walking the full route.

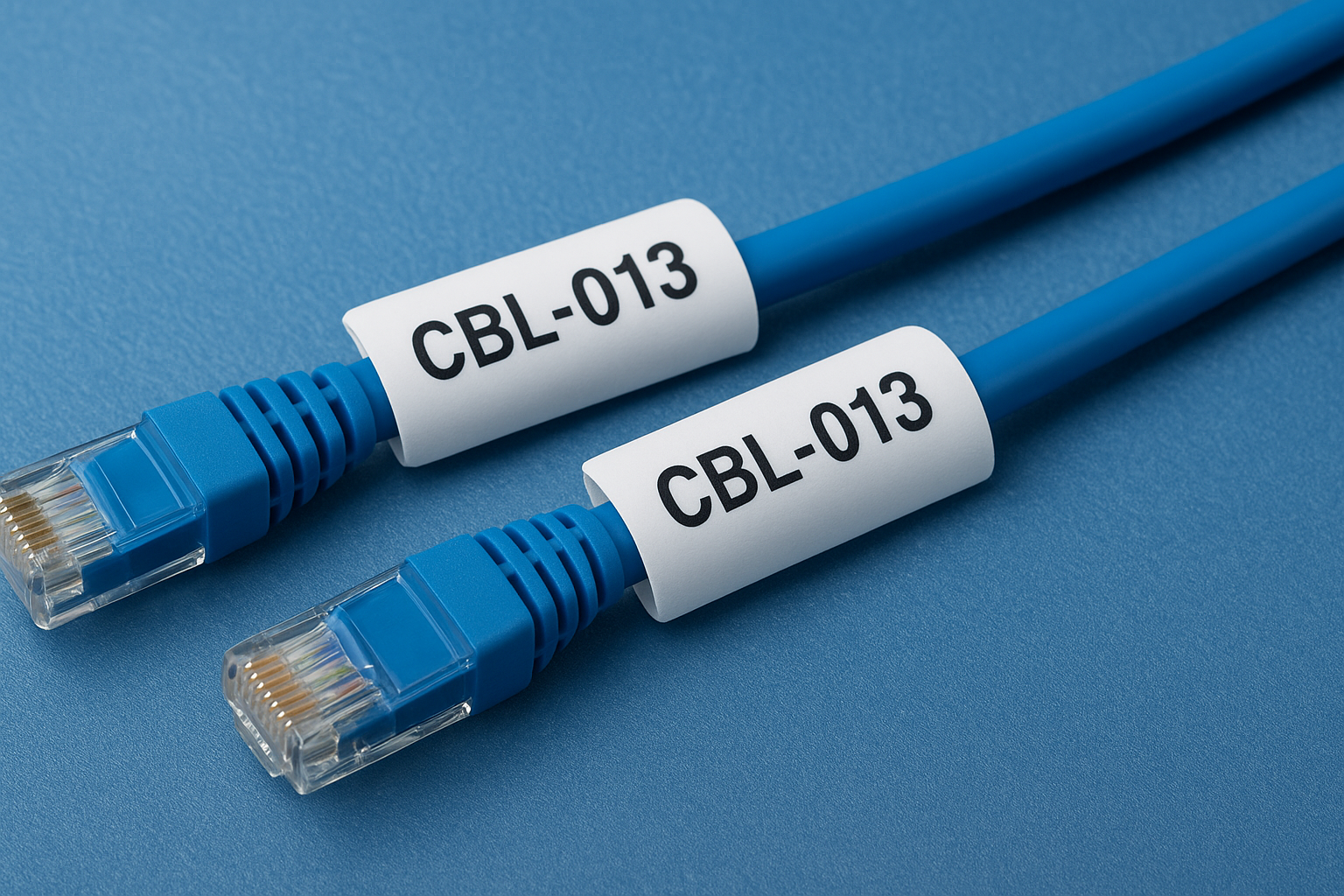

Place labels close to termination points
Position labels within two to three inches of each termination. Labels placed too far back get buried under cable dressing or shift when cables are moved, making them hard to locate quickly.
Consistent placement is as important as the label content itself.
Add mid-span labels on long runs and key waypoints
On runs longer than 100 feet, add labels at j-hooks, pull boxes, and pathway transitions. These waypoints let you confirm continuity and trace routes without following the cable from end to end.
Keep labels readable after dressing and bundling
Apply labels before final bundling, then verify you can still read them once ties are in place. Wrap-around labels on grouped bundles identify the run without forcing anyone to separate cables to find an ID.
Verify labeling during testing and turn-up
Check each label during continuity testing, not afterward. Catching mismatches at test time costs far less than correcting them once the system is carrying live traffic.
3. Use durable, printed labels that survive the environment
Label quality directly determines how long your cable labeling best practices hold up in the field. A label that fades, peels, or tears within a year forces rework on an otherwise solid installation.

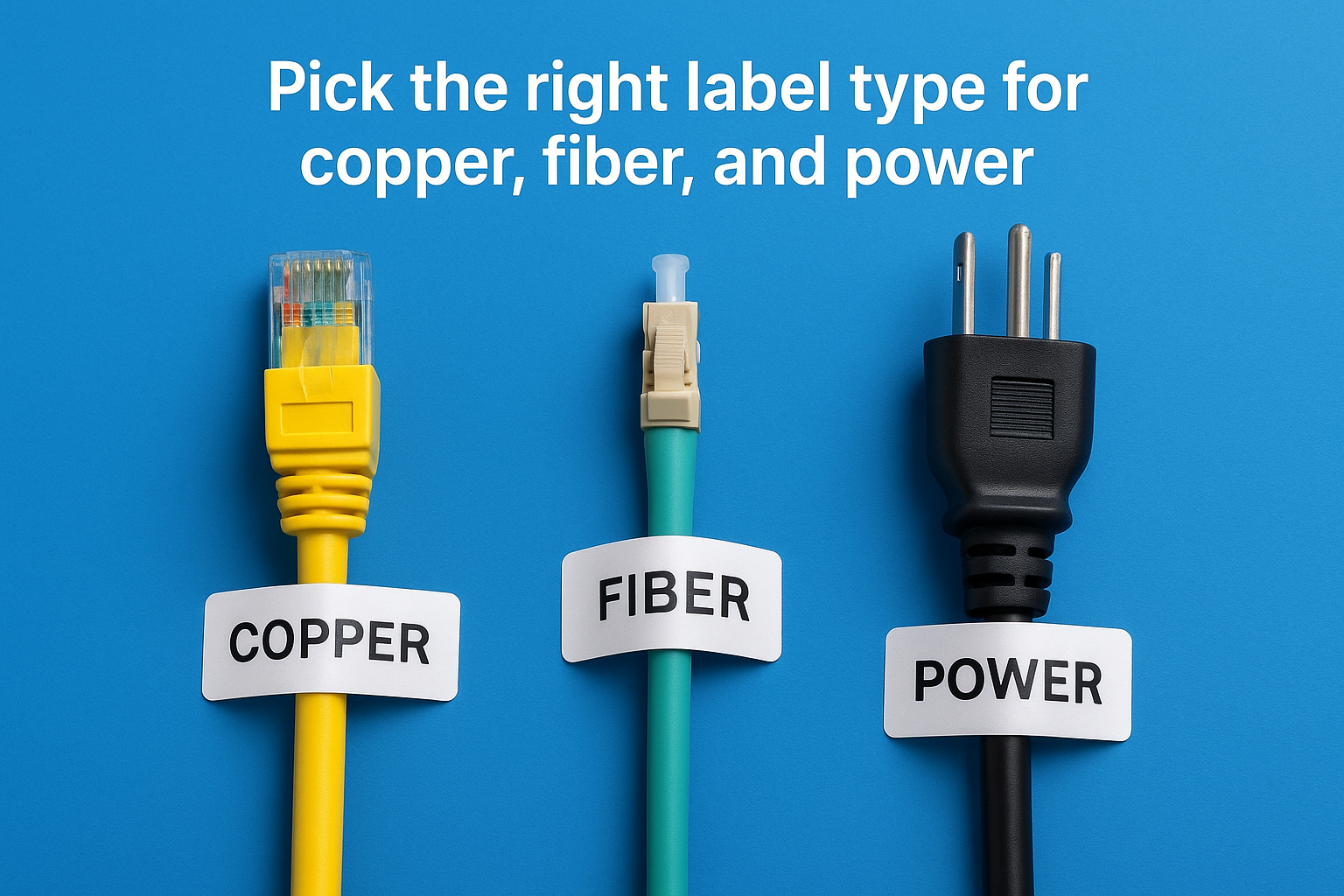

Pick the right label type for copper, fiber, and power
Wrap-around labels work well on copper patch cables, while heat-shrink labels are the standard choice for fiber strands and small-diameter runs. Power cables need labels rated for higher temperatures and moisture near PDUs.
Use materials and adhesives built for heat and abrasion
Choose polyester or vinyl label stock with aggressive adhesives rated for at least 150°F. Cabinet interiors near active equipment run hotter than you expect, and labels that lift at the corners quickly become unreadable.
Thermal-transfer printing outlasts laser-printed labels in high-heat environments by a significant margin.
Standardize fonts, print size, and barcode or QR use
Print every label from the same template using a minimum 8pt font. Adding a barcode or QR code lets technicians scan directly into your documentation system rather than transcribing IDs by hand.
Avoid handwritten labels and flag labels that snag
Handwritten labels fade, smear, and break your naming convention. Flag-style labels snag on adjacent cables during moves and often rotate, hiding the printed text entirely.
Handle special cases like patch cords and breakouts
Breakout cables need labels on every individual strand at the fan-out point, not just the trunk. Patch cords deserve the same wrap-around treatment as permanent runs since they move frequently and lose identification first.
4. Combine labels with clean routing and simple visual cues
Cable labeling best practices work best when your physical routing reinforces what the labels say. A well-routed cable plant lets techs find, trace, and verify runs quickly without disturbing adjacent circuits.
Separate and route by function and risk
Route high-voltage power and data cables in separate pathways to reduce interference risk and make identification faster. When cables of different functions share the same tray, even the best labels slow down a tech who has to sort through mixed bundles.
Use color coding as a secondary cue, not the identifier
Color-coded jackets or ties help techs sort cables visually at a glance, but color alone is never the primary identifier. Your printed label and unique cable ID always carry the authoritative information.
Treat color as a shortcut, not a substitute for a documented naming convention.
Manage slack, service loops, and bend radius without hiding IDs
Coil service loops neatly at termination points so labels stay visible and accessible. Never tuck slack behind panels or bundle it so tightly that you obscure the label.
Label pathways and spaces, not just cables
Conduits, trays, and j-hooks deserve their own identifiers so you can cross-reference them in your documentation. Labeling the pathway ties the physical route to your rack elevations and as-built drawings.
Keep access clear for troubleshooting and MAC work
Route cables with future access in mind, leaving enough clearance to read labels and swap runs without disturbing live circuits. Good cable management and clear labels together cut MAC work time significantly.
5. Maintain records and change control so labels stay true
Labels lose their value every time someone makes a change without updating the documentation. Applying cable labeling best practices through installation means nothing if your records drift from reality within the first year.
Create a single source of truth for cable IDs and endpoints
Store every cable identifier, endpoint location, and circuit detail in one documentation system, whether that’s a DCIM platform or a structured spreadsheet. Duplicate records stored in multiple places always fall out of sync.
Require updates for moves, adds, and changes
Make documentation updates a required step in every MAC work order, not an optional follow-up. Techs who complete a change without updating records create silent discrepancies that surface at the worst possible time.
Treat an undocumented change as an incomplete job, not a finished one.
Audit and spot-check labels on a schedule
Run quarterly spot-checks on high-traffic areas like patch panels and top-of-rack switches. Scheduled audits catch label wear and undocumented changes before they compound into larger problems.
Set rules for decommissioning and reuse of identifiers
Retire decommissioned cable IDs formally in your records before reusing them. Reusing an active identifier without proper retirement creates confusion during future troubleshooting.
Train techs and vendors on your standard
Give every technician and third-party vendor a written copy of your labeling standard before they touch the cable plant. Your standard document should cover at minimum:
- Your naming convention and label format
- Required update steps for MAC work
- Rules for decommissioning identifiers
Next steps
Putting these cable labeling best practices into action before your next installation saves your team far more time and money than fixing a disorganized cable plant after the fact. Start by drafting your naming convention and documentation standard, then align your drawings, labels, and records so every identifier points back to a single source of truth. From there, the physical work follows a clear, repeatable process that every tech on your team can execute consistently.
If your current cable plant has already drifted, a structured audit using the five practices above will show you exactly where the gaps are. Prioritize high-traffic areas like patch panels and top-of-rack switches first, then work outward from there.
