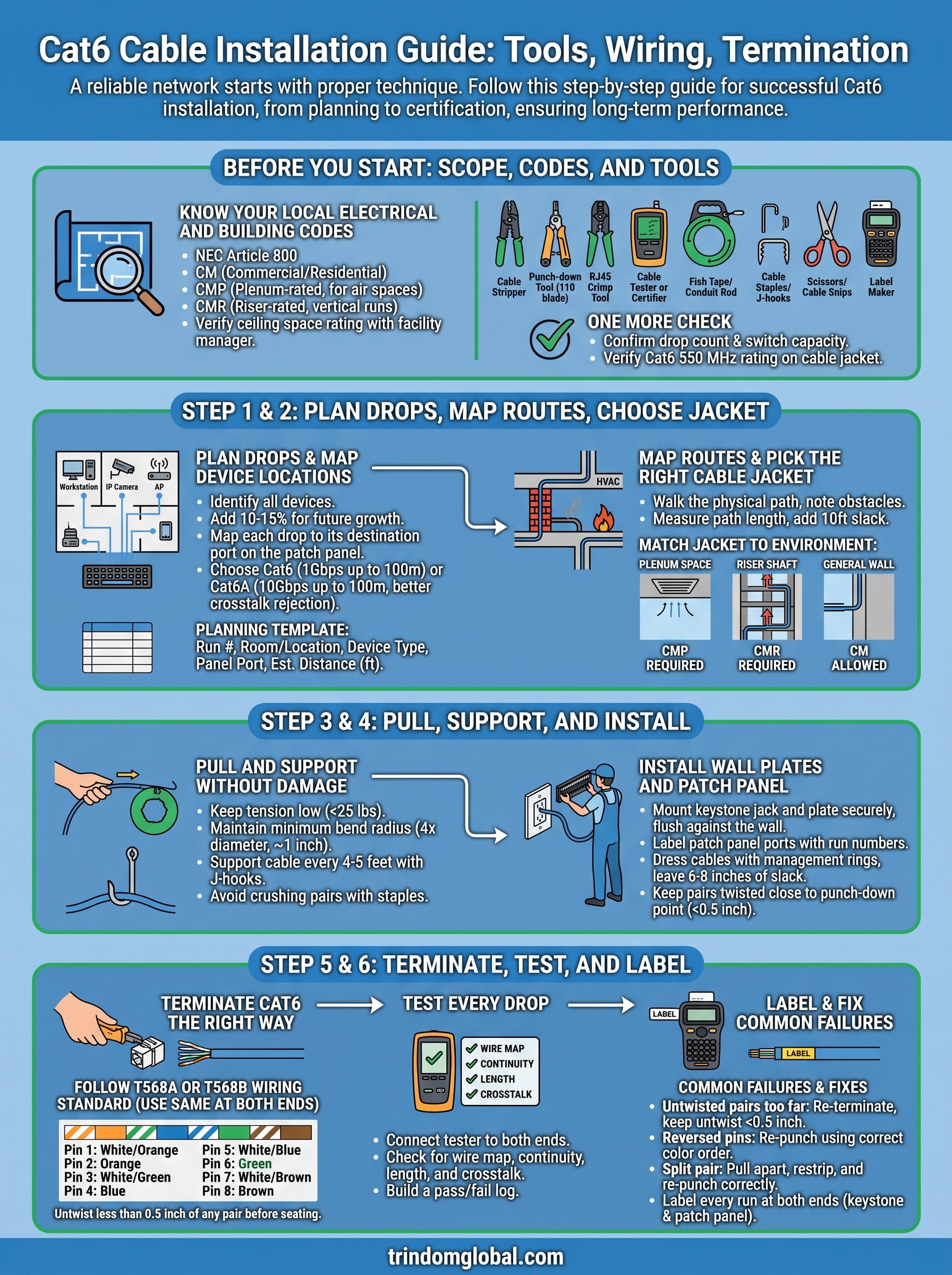

Cat6 Cable Installation Guide: Tools, Wiring, Termination

A single poorly terminated connection can take down an entire network run. Whether you’re pulling cable through a hospital’s ceiling plenum or wiring a patch panel in a commercial headend, the difference between a reliable link and a frustrating failure often comes down to technique. This Cat6 cable installation guide covers everything you need, from selecting the right tools to terminating connectors and keystones using T568A and T568B wiring standards.

At Trindom Global, structured cabling and headend buildouts are core to what we do. Our certified technicians install and terminate Cat6 across hospitals, commercial facilities, and multi-family residential properties every day. We built this guide to share the same foundational knowledge our teams rely on, so you can approach your own project with real technical confidence.

Below, you’ll find step-by-step instructions for terminating Cat6 cable to RJ45 connectors, keystone jacks, and wall plates. We also cover common mistakes that compromise performance and the specific tools you’ll need before making your first cut. Let’s get into it.

Before you start: scope, codes, and tools

Before you touch a cable run, you need a clear picture of what the project actually involves and what rules govern it. Residential and commercial installs follow different building codes, and some environments like hospitals or plenum spaces require specific cable jacket types that directly affect which materials you buy. Skipping this step costs money and time when an inspector flags non-compliant materials or you have to repull cable through a finished wall.

Know your local electrical and building codes

National Electrical Code (NEC) Article 800 covers communications wiring in the US, and your local jurisdiction may layer additional requirements on top of it. The two cable jacket ratings you’ll encounter most are CM (commercial/residential) and CMP (plenum-rated). Plenum spaces are any areas used for air circulation in an HVAC system, including above drop ceilings in most commercial buildings. If your cable runs through plenum space, you’re required to use CMP-rated cable because it produces less toxic smoke when burned.

If you’re working in a healthcare facility or a commercial building with drop ceilings, confirm the ceiling space rating with the building’s facilities manager before ordering materials.

CMR (riser-rated) cable covers vertical runs between floors in non-plenum shafts. Using the wrong jacket type is a code violation and a fire risk, so verify before you order. Most residential projects allow standard CM or UTP cable without a plenum or riser rating, but check with your local authority having jurisdiction to confirm.

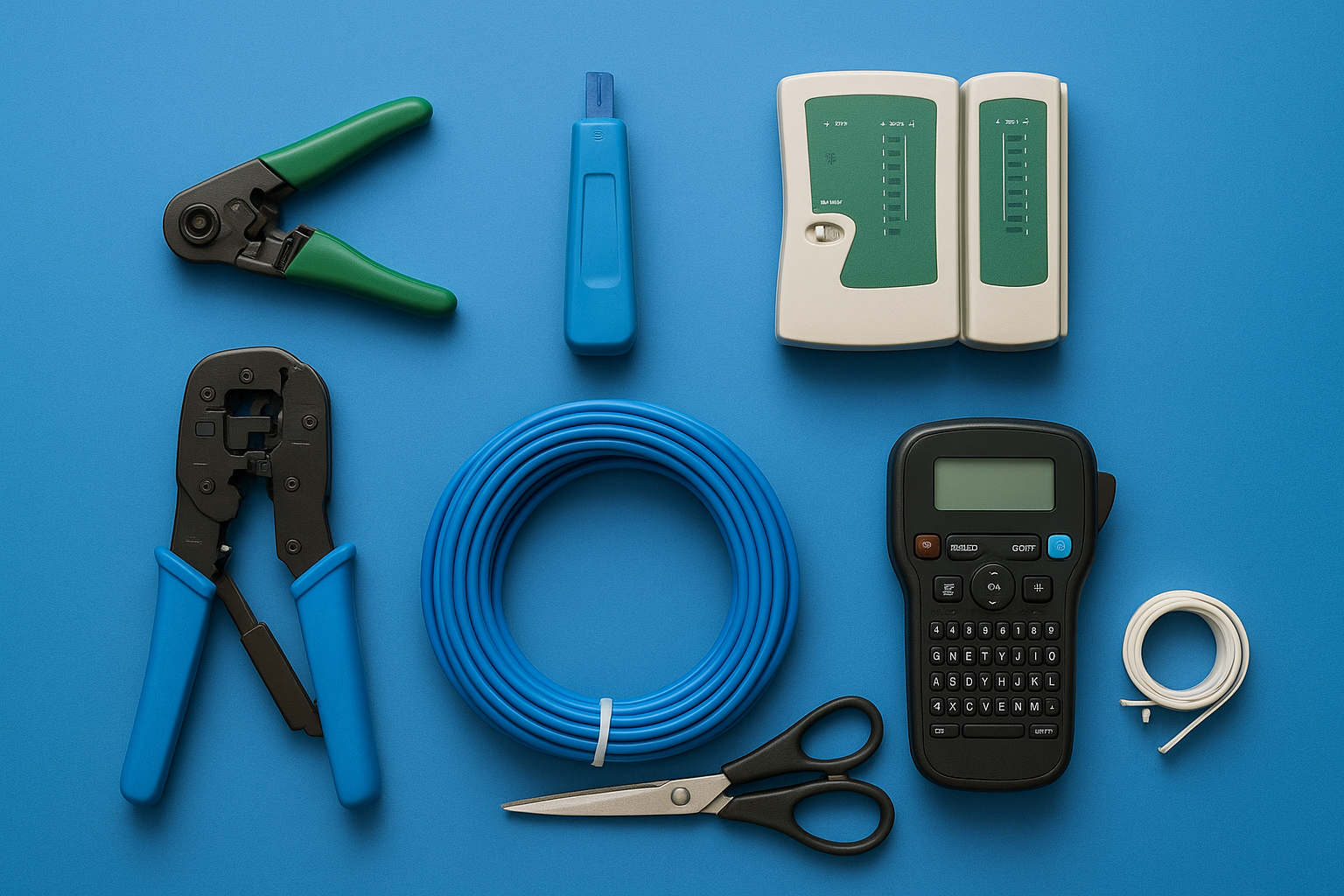

The full tool list

You won’t get far in any cat6 cable installation guide without the right tools on hand. Trying to terminate cable with inadequate tools produces inconsistent punch-downs and loose RJ45 connections that fail certification tests. Gather everything before you start pulling cable.

Here’s what you need for a complete install:

A basic continuity tester costs around $30 to $60 and catches miswires and open pairs. For a commercial client or any environment with performance guarantees, invest in a certifier that tests to TIA-568 standards and generates a pass/fail report. That document protects you if a performance issue surfaces later.

One more check before you start

Confirm how many cable drops you need and where patch panel ports align with your switch capacity. Running short on ports mid-project stalls everything. Also verify that your Cat6 cable is rated to 550 MHz and not mislabeled Cat5e, which is common with off-brand bulk cable. Check the printing on the cable jacket itself before you unroll it.

Step 1. Plan drops and choose Cat6 or Cat6A

Planning your drops before pulling a single foot of cable saves you from costly repulls and mid-project material shortages. Walk the space and identify every device that needs a wired connection: workstations, IP cameras, VoIP phones, wireless access points, printers, and any IoT devices on your network. Add 10 to 15 percent extra drops beyond your current count to account for future growth, because pulling cable through a finished wall or ceiling later costs far more in labor than running a few extra lines during the original install.

Count your drops and map device locations

Every drop on your plan should correspond to a real device location or a logical zone in the space. Map each drop to its destination port on the patch panel before you pull any cable, so you know exactly how many patch panel ports you need and can confirm your switch has enough capacity to match. A simple spreadsheet works well here: list each room, the number of drops, the run number, and the destination port. Here’s a basic planning template to follow:

Track every run in this format before you order materials so your bulk cable order matches the actual job and you’re not making a second trip to the supply house.

Cat6 vs Cat6A: which one do you actually need?

Standard Cat6 cable supports 10 Gbps up to 55 meters and 1 Gbps at the full 100-meter limit. For most office environments, light commercial spaces, and residential projects, Cat6 is sufficient. Cat6A pushes 10 Gbps across the full 100-meter channel and includes better crosstalk rejection, which becomes important in dense cable trays or environments with significant electrical interference nearby.

If your project involves any future 10GbE switch upgrades or runs through a commercial headend with tightly bundled cables, pull Cat6A now rather than returning to repull later.

This cat6 cable installation guide covers Cat6 termination throughout, but the techniques for Cat6A are identical. The key practical difference is that Cat6A cable is noticeably thicker and heavier, so you’ll need to pay closer attention to bend radius and cable support spacing during the pull.

Step 2. Map routes and pick the right cable jacket

Route mapping determines how much cable you order, where you need conduit, and which jacket type to buy. Walking the physical path of each run before pulling any cable reveals obstacles like fire-rated walls, HVAC equipment, and conduit bottlenecks that don’t appear on a floor plan. Taking 30 minutes to trace routes in advance keeps surprises off the job site and protects your material budget.

Trace your route before you pull

Walk from the patch panel location to each drop point and note every obstacle along the way. Mark where you’ll need to drill through walls or studs, where fire-rated barriers require firestop fittings, and where horizontal cable trays or J-hooks will support the run. Measure the actual path length, not the straight-line distance, and add 10 feet of slack at each end to allow for clean terminations and future moves.

A simple route log captures this information before you order materials:

Log the jacket type at the route stage, not after you’ve already placed your order. This keeps your purchase order accurate the first time and prevents a second supply run mid-project.

Match the jacket to the environment

Every environment covered in this cat6 cable installation guide has a corresponding jacket rating, and mixing them up creates compliance issues. CMP-rated (plenum) cable is required anywhere air circulates in an HVAC system, which includes most drop ceilings in commercial buildings. If your run passes through plenum space even briefly, the entire run must use CMP cable.

If you’re unsure whether a ceiling void qualifies as plenum, treat it as plenum and use CMP cable. Over-specifying is far less costly than a failed inspection.

CMR (riser-rated) cable handles vertical runs between floors through enclosed shafts. Standard CM cable covers in-wall runs in non-plenum, non-riser environments. Confirm the classification with the building’s facilities team before placing your material order, especially in healthcare or mixed-use buildings where jacket requirements vary by floor and zone.

Step 3. Pull and support the cable without damage

The physical pull is where most installers introduce performance problems they won’t discover until testing. Cat6 cable contains tightly twisted pairs that maintain specific twist rates to control crosstalk and signal integrity. Pulling too hard, bending too sharply, or stapling too tightly crushes those pairs and degrades the cable’s electrical properties before you ever terminate it.

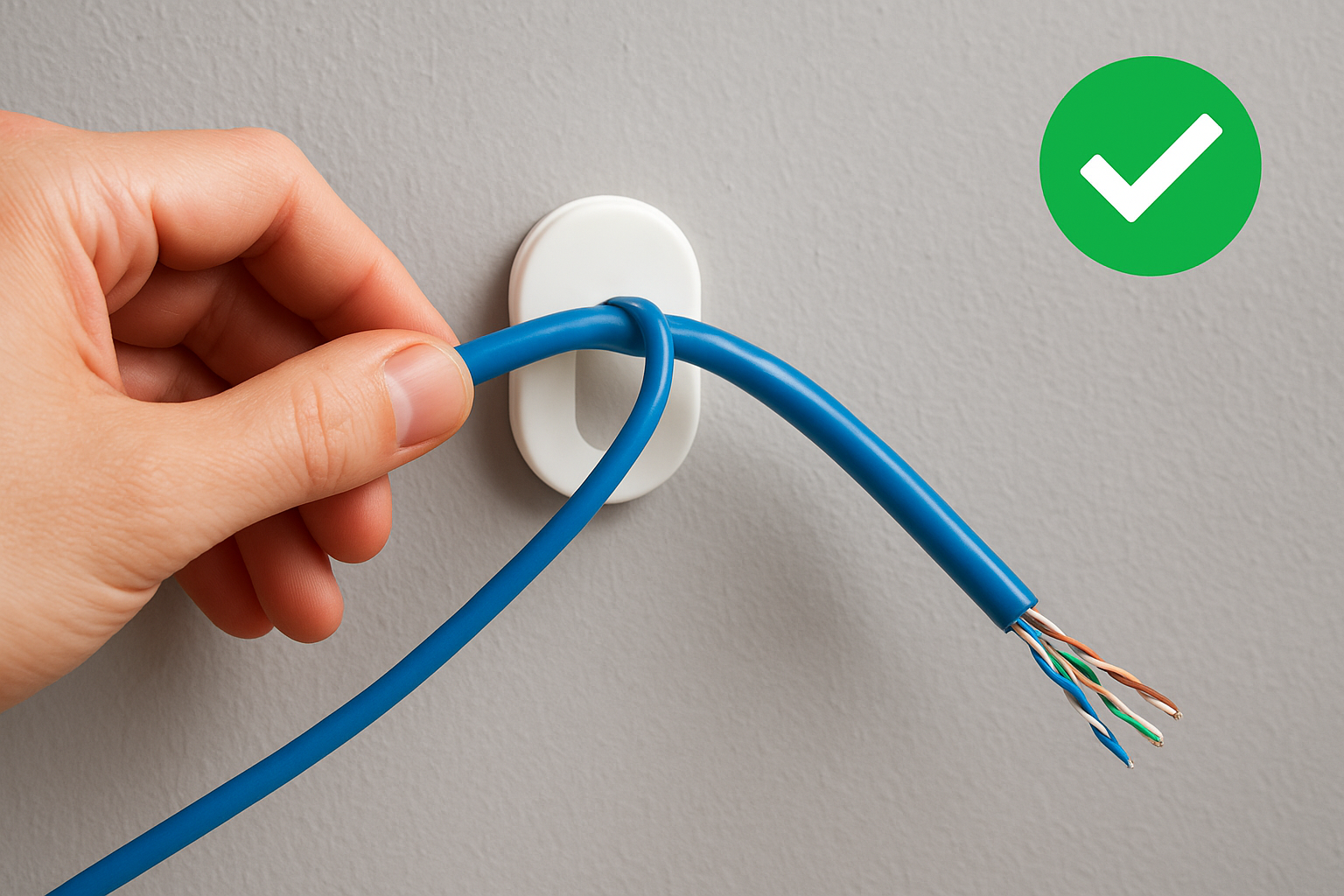

Keep tension low and bend radius safe

Cat6 cable has a maximum pulling tension of 25 pounds, and exceeding it stretches the conductors and unravels the pairs inside the jacket. Use a fish tape or conduit rod to guide the cable rather than yanking it through tight spaces. If you’re pulling multiple cables through a conduit, calculate the fill ratio before you start: a standard conduit should not exceed 40 percent fill when running multiple cables, or friction increases pulling tension beyond safe limits.

Maintain a minimum bend radius of 4 times the cable diameter, which works out to roughly 1 inch for most Cat6 cable. Sharp bends around corners, conduit fittings, or building framing compress the pairs and create impedance irregularities that show up as return loss failures during certification. At every corner, use a cable guide or conduit elbow to keep the bend gradual rather than forcing the cable around a hard angle.

If a run requires pulling through multiple bends in sequence, use a pulling lubricant rated for communications cable to reduce friction and protect the jacket.

Support the cable every 4 to 5 feet

Proper support prevents sag, strain, and long-term jacket fatigue in horizontal runs. Use J-hooks rated for communications cable rather than cable staples when running through open ceiling spaces. J-hooks cradle the cable without compressing the jacket, while staples driven too firmly will crush the pairs and create the same problems as a sharp bend.

Space your J-hooks or cable supports every 4 to 5 feet along horizontal runs, and use a dedicated hook at every point where the cable changes direction. When securing cable to a stud or joist with a staple gun, leave a small amount of slack in the jacket so the staple holds position without pinching the cable. This single detail in any practical cat6 cable installation guide is consistently overlooked, but it directly affects whether your runs pass certification on the first attempt or require troubleshooting after the walls are closed.

Step 4. Install wall plates and patch panel

Wall plates and patch panels are the physical endpoints of every cable run, and both need to be mounted securely and positioned correctly before you terminate anything. Rushing through this step creates loose hardware and crooked plates that look unprofessional and, more importantly, put unnecessary stress on terminated connections over time. Take ten minutes to get every mount right before picking up your punch-down tool.

Mount the keystone jack and wall plate

Single-gang and dual-gang wall plates accept keystone inserts that snap into pre-cut ports in the face plate. Start by stripping roughly 1 inch of the outer jacket from each cable at the wall outlet location, keeping the pairs as intact as possible. Seat the keystone jack into the wall box before you terminate it, so you’re working with the final orientation in place. Once you terminate and snap the jack into the plate, run your hand across the surface to confirm the plate sits flush against the wall with no gaps.

Here is a quick checklist to confirm correct wall plate installation before moving to termination:

• Wall box is secured to a stud or drywall anchor with no movement
• Cable jacket extends at least 0.5 inch beyond the box edge before stripping
• Keystone jack is oriented with the correct side facing out (check the label direction printed on the jack body)
• Plate screws are tightened evenly so the face sits flat
• Cable is not kinked or sharply bent where it exits the wall box

Seat cables into the patch panel

Patch panels in this cat6 cable installation guide are typically 110-style punch-down panels mounted on a 19-inch rack or wall bracket. Before you terminate a single port, label the back of each port with the run number from your planning spreadsheet so every port maps directly to a known drop location. Labeling at this stage takes two minutes per panel and prevents hours of tracing mistakes after the network goes live.

Always dress your cables across the back of the patch panel with cable management rings or a lacing bar before punching them down, so the weight of the runs does not pull terminated connections loose over time.

Route each cable through the panel’s cable management bracket, leave 6 to 8 inches of slack at each port, and keep the pairs twisted as close to the punch-down point as possible. Untwisting more than 0.5 inch of pair before seating wires into the 110 block degrades crosstalk rejection and will likely cause a near-end crosstalk failure during certification.

Step 5. Terminate Cat6 the right way

Termination is the most technically demanding part of any cat6 cable installation guide, and it’s where most wiring errors occur. Small mistakes here, like untwisting pairs too far or seating wires in the wrong order, produce continuity failures and crosstalk problems that a cable tester will catch immediately. Taking your time on each termination pays off when your runs pass certification on the first attempt.

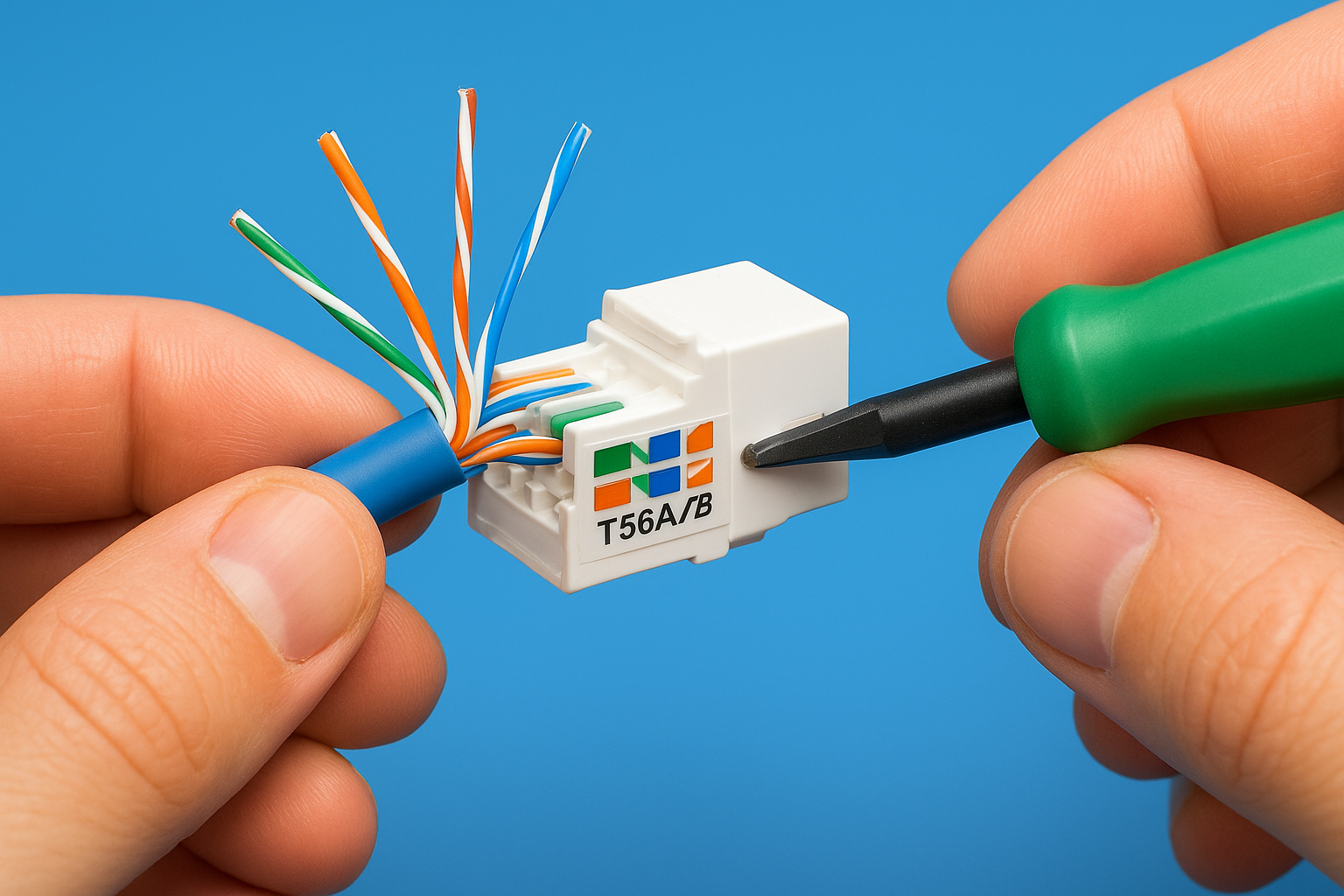

Follow the T568A or T568B wiring standard

Both T568A and T568B are valid standards defined by TIA-568, and both deliver identical electrical performance. The only rule is that you use the same standard at both ends of every run. Most commercial and enterprise installs in the US default to T568B, so use that unless your client or existing infrastructure specifically calls for T568A.

If you’re connecting two switches or devices directly without a patch panel, use T568A on one end and T568B on the other to create a crossover cable, but for standard runs, keep both ends identical.

Use this color order as your termination reference at every port:

Punch down keystone jacks correctly

Strip no more than 1 inch of outer jacket from the cable before seating the pairs. The keystone jack body is printed with both T568A and T568B color codes on each side, so align your wires to the standard you chose and seat each conductor into its slot before pressing with the punch-down tool. Hold the tool perpendicular to the jack and press firmly in one motion. The blade seats the wire and trims the excess in the same stroke. Untwisting more than 0.5 inch of any pair before seating degrades crosstalk performance, so keep the pairs twisted as close to the termination point as possible.

Crimp RJ45 connectors for patch cables

For field-terminated patch cables, use pass-through RJ45 connectors that allow conductors to extend through the front of the plug before crimping. Arrange all eight conductors in T568B order, verify the color sequence before inserting the cable, and seat them fully so each wire contacts the crimp pins at the front. One firm, complete stroke with the crimp tool locks the conductors and seats the strain relief simultaneously.

Step 6. Test, label, and fix common failures

Testing and labeling are the final steps that separate a professionally completed job from one that generates callbacks. Every run you pulled and terminated needs a verified test result and a clear label at both ends before you call the project done. Skipping either step means you’re handing over a network with unknown failure points that will surface at the worst possible time.

Run the cable tester on every drop

Connect your tester to both ends of each run and check for four results: wire map, continuity, length, and crosstalk. A wire map failure means at least one pin is miswired or open. A split pair failure, where the tester shows correct continuity but the wrong color pairs are grouped together, is one of the most common errors in any cat6 cable installation guide and causes near-end crosstalk failures even though all eight pins show connected.

If a run fails on length and measures longer than your route plan estimated, the cable may have been kinked or sharply bent during the pull, which adds effective electrical length to the run.

Use the tester results to build a simple pass/fail log before you close walls or button up the patch panel:

Label both ends before you close anything up

Label every run at the keystone jack and at the patch panel port using the same run number from your planning spreadsheet. A label maker with cable-rated tape produces labels that stay readable for years, unlike handwritten tape that peels or fades. Mark the wall plate port number and destination room on the patch panel side so any technician can trace a connection without hunting through cable runs behind the panel.

Fix the most common termination failures

Most test failures trace back to three causes: untwisted pairs seated too far from the keystone, reversed pins at one end, or a split pair where blue and green wires were grouped together instead of their correct pairs. Pull the failed termination apart, restrip the cable, and re-punch using the color chart from Step 5. Keep your untwist length under 0.5 inch on the re-termination, and retest immediately before moving to the next failed port. Fixing problems in sequence prevents you from losing track of which runs still need attention.

All set

You now have every step from this cat6 cable installation guide in one place: route planning, jacket selection, proper pull technique, keystone termination, and test verification. Apply these steps in order on your next project and your runs will pass certification on the first attempt rather than requiring repulls or re-terminations after the walls close.

Structured cabling done right stays invisible and reliable for years. Every detail covered here, from keeping untwist length under 0.5 inch to labeling both ends before you close the patch panel, protects your network’s performance over the long term and saves you from chasing failures later.

If your project involves a commercial facility, healthcare environment, or multi-family property that needs professional design-build cabling work, our certified technicians handle installs at that scale every day. Reach out to the structured cabling and IT infrastructure experts at Trindom Global to discuss your next project.
