A single mislabeled or tangled cable can turn a routine maintenance task into a hours-long scavenger hunt. Multiply that across hundreds or thousands of connections, and you’ve got a real problem, restricted airflow, increased downtime, and frustrated technicians. That’s exactly why solid data center cable management tips matter more than most teams realize until something goes wrong.
Good cable management isn’t just about aesthetics. It directly affects cooling efficiency, troubleshooting speed, and the long-term scalability of your infrastructure. When cables are routed with intention and labeled with precision, every upgrade and every repair becomes faster and less prone to human error.
At Trindom Global, we design, build, and install structured cabling and IT infrastructure systems across healthcare, commercial, government, and hospitality environments. Our teams have seen firsthand what separates a well-managed rack from a liability, and the difference almost always comes down to planning and discipline. We put together these eight tips based on what actually works in the field, so you can keep your racks clean, cool, and ready for whatever comes next.
1. Start with a rack-by-rack cabling plan
No plan means no order. Before you pull a single cable, you need a detailed rack layout that accounts for every device, every connection, and every pathway in the room. Teams that skip this step end up retrofitting organization onto a chaotic install, which costs far more time and money than planning from the start.
Why this tip prevents cable sprawl
Cable sprawl happens when installers make on-the-fly routing decisions without a reference document to guide them. One improvised run leads to another, and within a few racks, you have cables crossing paths, blocking ports, and restricting airflow. A rack-by-rack plan gives every technician a consistent set of rules to follow, which eliminates guesswork from day one.
A cabling plan created before installation begins is the single most effective tool for preventing the disorganized rack that costs hours to troubleshoot later.
How to map pathways, ports, and zones
Start by drawing out each rack in a diagram or floor plan, marking where power, data, and fiber connections will land. Assign dedicated zones within each rack for specific cable types, such as patch cords at the front and longer horizontal runs along the sides or rear. Document the path each cable will travel from source to termination so no two runs compete for the same space.
What to standardize before install day
Standardization makes your plan repeatable across every rack and every technician on the job. Before installation begins, lock in these three decisions:
- Color codes assigned by cable function (power, data, fiber, RF)
- Port naming conventions applied consistently across all panels and switches
- Maximum cable lengths for each run type based on your rack layout
Settling these details early means your team installs consistently rather than making independent choices at each rack.
When to bring in a structured cabling partner
Some environments are too complex to plan internally. High-density racks, multi-floor builds, or mixed-use facilities with copper, fiber, and coax all running together benefit from a partner who has designed and built these systems before. A qualified structured cabling partner brings standardized processes, manufacturer certifications, and field-tested documentation templates that reduce design time and cut rework during installation.
2. Right-size cable lengths and reduce slack
Ordering the right cable lengths before install day sounds simple, but most teams default to longer runs “just in case.” That habit produces excess slack that bunches up inside racks, blocks airflow paths, and turns a quick port swap into an untangling exercise. Cutting slack out of the equation starts with knowing your runs before you order.
Why excess slack kills airflow and access
Excess cable creates physical obstructions that restrict the cold-air flow your equipment depends on to stay within operating temperatures. Even a few inches of bundled slack pushed in front of a server intake forces components to run hotter. Beyond cooling, bulky loops block visibility and access to the ports behind them, slowing down every technician who needs to trace or swap a connection.
Slack management is a cooling strategy as much as an organization strategy. Treat every extra foot of cable as a direct threat to your airflow design.
How to measure runs and choose lengths
Measure each run from patch panel to switch port along the actual path the cable will travel, not in a straight line. Add a few inches for routing around corners and strain relief at each end, then match that number to the nearest standard cable length available from your supplier. Pre-terminated cables in standard increments reduce on-site cutting and keep your terminations consistent.
What to do with unavoidable extra length
Sometimes a run is between standard lengths. In those cases, use a velcro cable tie to create a small managed loop tucked behind the vertical cable manager rather than letting it hang free. Keep loops flat and secured so they stay out of the airflow path.
Mistakes that create the spaghetti effect
The most common mistake is letting installers cut or pull cable without a measured plan in hand. A second mistake is routing cables over equipment rather than through designated pathways, which creates crosses that grow messier with every new connection. Both problems trace back to a missing length standard established before installation begins.
3. Use dedicated pathways and rack cable managers
Routing cables without a defined pathway is one of the most common mistakes in data center builds. Without vertical and horizontal cable managers, runs pile up across equipment faces, block ports, and create the exact chaos that slows down your team during incidents. Dedicated pathways keep every cable in its lane from the moment you install it.
Why pathways beat ad hoc routing
Ad hoc routing lets each installer make independent decisions about where a cable should go, and those decisions compound into disorder fast. Dedicated pathways enforce consistent routing regardless of who is on the job, which means your infrastructure stays predictable whether you’re adding a switch or pulling a failed drive at 2 a.m. Consistency here is one of the most practical data center cable management tips you can implement.
A cable manager costs a fraction of what a disorganized rack costs you in troubleshooting time and cooling repairs over its lifetime.
How to route in-row, overhead, and underfloor
Your routing choice depends on your facility layout. In-row cable managers work well in high-density deployments where short horizontal runs stay close to the rack. Overhead cable trays suit environments where long runs between racks need a clear, accessible path. Underfloor routing works in raised-floor facilities but requires careful airflow planning to avoid blocking cold-air plenums.
How to add strain relief and protect connectors
Strain relief prevents connectors from bearing the weight of the cable behind them. Use strain relief clips at every termination point to keep tension off the connector body. This matters especially for RJ45 and fiber LC connectors, which fail early under repeated mechanical stress.
What to check for bend radius and pinch points
Every cable type has a minimum bend radius that, if exceeded, degrades signal or damages the cable internally without any visible sign. Fiber is especially vulnerable. Walk your pathways after install and look for tight corners, zip ties pulled too hard, or cables pinched between rack ears, and correct them before they cause intermittent failures.
4. Bundle the right way with Velcro and spacing
How you bundle cables is just as important as where you route them. Improper bundling compresses cables, traps heat, and creates tension that degrades signal quality over time, sometimes without any obvious sign until you start seeing intermittent failures.
Why tight bundling can damage cables
Bundling cables too tightly restricts their natural flex and increases internal heat buildup, especially in high-density runs. Copper data cables can tolerate moderate compression, but sustained pressure on the jacket changes the geometry of the twisted pairs inside, which affects impedance and crosstalk performance. Fiber is even less forgiving and can suffer microbending that raises insertion loss without breaking the cable outwardly.
How to bundle copper vs fiber safely
Keep copper and fiber in separate bundles and never route fiber in the same tie as heavier copper runs. For copper, keep bundle diameters manageable, roughly 1 to 1.5 inches, so cables at the center aren’t compressed by those on the outside. Fiber bundles should be even smaller and always secured with soft velcro rather than anything that cinches tight under tension.
Velcro wraps let you open and reorganize a bundle in seconds without cutting and replacing ties, which makes future moves and adds far faster.
Where to place anchor points and tie-downs
Anchor points should land at consistent intervals, typically every 12 to 18 inches, along vertical cable managers and at each bend or direction change. Space tie-downs evenly so no single point carries the full weight or tension of the run.
What to avoid with zip ties and overstuffed rings
Zip ties pulled tight enough to deform the cable jacket are one of the most common violations of solid data center cable management tips. Use velcro wraps instead, and never fill a cable ring beyond two-thirds of its rated capacity. Overstuffed rings cause the same compression problems as tight ties and block the airflow running through and around your cable managers.
5. Separate power, data, and RF to cut interference
Running power cables alongside data and RF cables in the same bundle introduces electromagnetic interference (EMI) directly into your signal paths. That interference degrades throughput, raises error rates, and creates noise problems that are difficult to trace back to their source. Keeping these cable types physically separated is one of the most overlooked data center cable management tips in mixed-use installations.
Why separation protects performance and safety
Power cables carry alternating current that radiates an electromagnetic field, and any data or RF cable running parallel picks up that field as noise. Beyond performance, unseparated power and signal cables also present a safety risk if insulation fails, particularly near high-voltage UPS systems or PDUs.

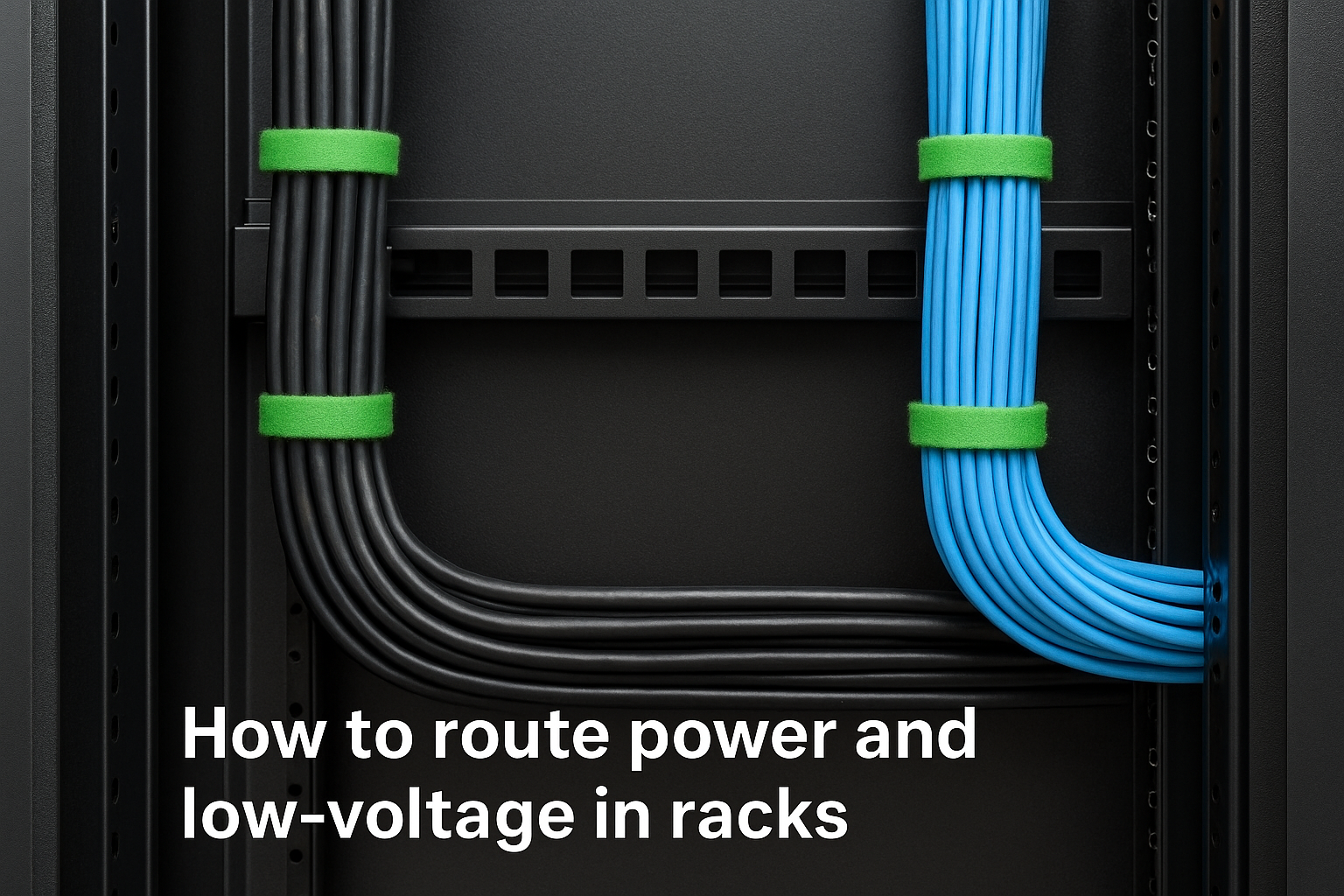

How to route power and low-voltage in racks
Route your power cables on one side of the rack and data cables on the opposite side to maintain physical separation throughout the run. Use dedicated horizontal managers for each cable type rather than sharing trays, and avoid letting cable types cross except at perpendicular angles where they must intersect.
Even a few inches of separation between power and data runs meaningfully reduces EMI pickup in high-density rack environments.
When shielding and grounding matter most
Shielding and proper grounding become critical in environments with high-density power feeds, RF broadcasting equipment, or long parallel runs next to data cables. Always verify that your shielded cable terminations connect the drain wire to ground at one end only to prevent ground loops that introduce their own interference.
How to keep PoE runs and heat in check
PoE cables carry both data and electrical current in the same jacket, which generates heat along the full run. Keep your PoE bundles smaller than standard data bundles and route them with extra spacing so heat can dissipate without affecting adjacent cables or raising ambient rack temperature.
6. Label, color code, and document every connection
Skipping labels is one of the most expensive shortcuts in data center work. When an outage hits at 3 a.m. and your team is tracing live connections under pressure, clear labels and accurate documentation are the difference between a 10-minute fix and a two-hour crisis. This is a foundational element of any solid set of data center cable management tips.
Why labels pay off during outages and moves
Every unlabeled cable becomes a liability the moment someone who didn’t install it has to work with it. Moves, adds, and changes (MACs) slow to a crawl when technicians must trace cables manually rather than reading a label and acting. A consistent labeling system also reduces the risk of accidentally disconnecting a live circuit during routine maintenance.
The time you invest in labeling every connection during installation comes back to you many times over the first time your team handles an unplanned change.
What a good label scheme includes
Your labels should capture the source port, destination port, and cable type on both ends of every run. Use machine-printed labels rather than handwritten ones, and choose materials rated for the temperature and humidity range of your environment so they stay legible over time.
How to handle fiber identifiers and polarity
Fiber requires extra attention because polarity errors cause complete link failures that look identical to physical damage during troubleshooting. Mark each fiber strand with its TX/RX orientation at both termination points, and keep strand counts documented at the patch panel level.
What to capture in your as-built documentation
Your as-built records should reflect what was actually installed, not what was planned. Document every port assignment, cable length, and pathway route and store that record in a shared location your whole team can access and update after any change.
7. Keep patching disciplined at the rack face
The rack face is where most hands-on work happens, and it shows first when patching discipline breaks down. Loose patch cords, unlabeled ports, and random jumper lengths at the front of your rack slow down every technician who touches it. Building consistent patching habits around how you route and label connections keeps your infrastructure accessible and your team efficient under pressure.
Why front-of-rack organization drives uptime
A clean rack face means faster troubleshooting and fewer accidental disconnections during maintenance. When patch cords run straight from panel to switch without crossing other connections, your team traces any circuit in seconds rather than spending minutes untangling cords to find the right one.
How to route patch cords for fast tracing
Route each patch cord directly to its port without looping through adjacent panels or crossing over other cords. Short, direct runs stay visible and easy to trace when your team responds to an incident under time pressure. Keeping cords at the front plane of the rack rather than draping them over equipment makes every connection readable at a glance.
Patch cords routed with a clear, direct path to their port cut incident response time more than almost any other front-of-rack practice.
How to use patch panels to simplify changes
Patch panels give you a fixed, organized termination point that absorbs all your moves and changes without disturbing the horizontal cabling behind the rack. Every add or swap stays at the panel level, which protects your permanent infrastructure and keeps port assignments consistent across every rack in the room.
What to standardize for port naming and jumpers
Assign clear port names that match your as-built documentation on every panel and switch, and choose a standard jumper length, typically 1 or 3 feet, for all front-of-rack patch work. Mixing lengths is one of the quiet violations of good data center cable management tips that creates visual disorder faster than most teams expect.
8. Audit, clean, and remove abandoned cabling
Cabling from decommissioned equipment doesn’t disappear when you pull the server. Orphaned cables stay in racks, trays, and pathways long after the hardware they served is gone, and over time they accumulate into physical obstructions that block airflow, hide active connections, and make every future change harder to execute safely. Skipping regular audits is one of the fastest ways to undo every other data center cable management tip you’ve implemented.
Why abandoned cable blocks cooling and growth
Dead cables fill cable managers and overhead trays that your active infrastructure needs. They create dense, unmapped bundles that restrict cold-air delivery to your equipment and leave no clear path for new runs when your footprint expands.
How to schedule audits without causing downtime
Schedule cable audits during planned maintenance windows so technicians can trace and verify connections without risk to live services. A quarterly review cycle works well for most environments, but high-change facilities benefit from monthly checks.
A brief, scheduled audit prevents the multi-day cleanup that follows years of accumulated abandonment.
How to verify what you can safely remove
Before pulling any cable, trace both ends and confirm the circuit is inactive in your documentation. Cross-reference your as-built records against your active port inventory to identify runs with no current assignment, and flag every discrepancy for review before removal.
What to inspect for damage, heat, and wear
Run your hand along active cables during each audit and check for heat buildup, kinking, or jacket damage. Pay close attention to cables routed near exhaust vents or sharp rack edges, and replace any run showing visible wear or deformation before it causes an unplanned failure.
Next steps

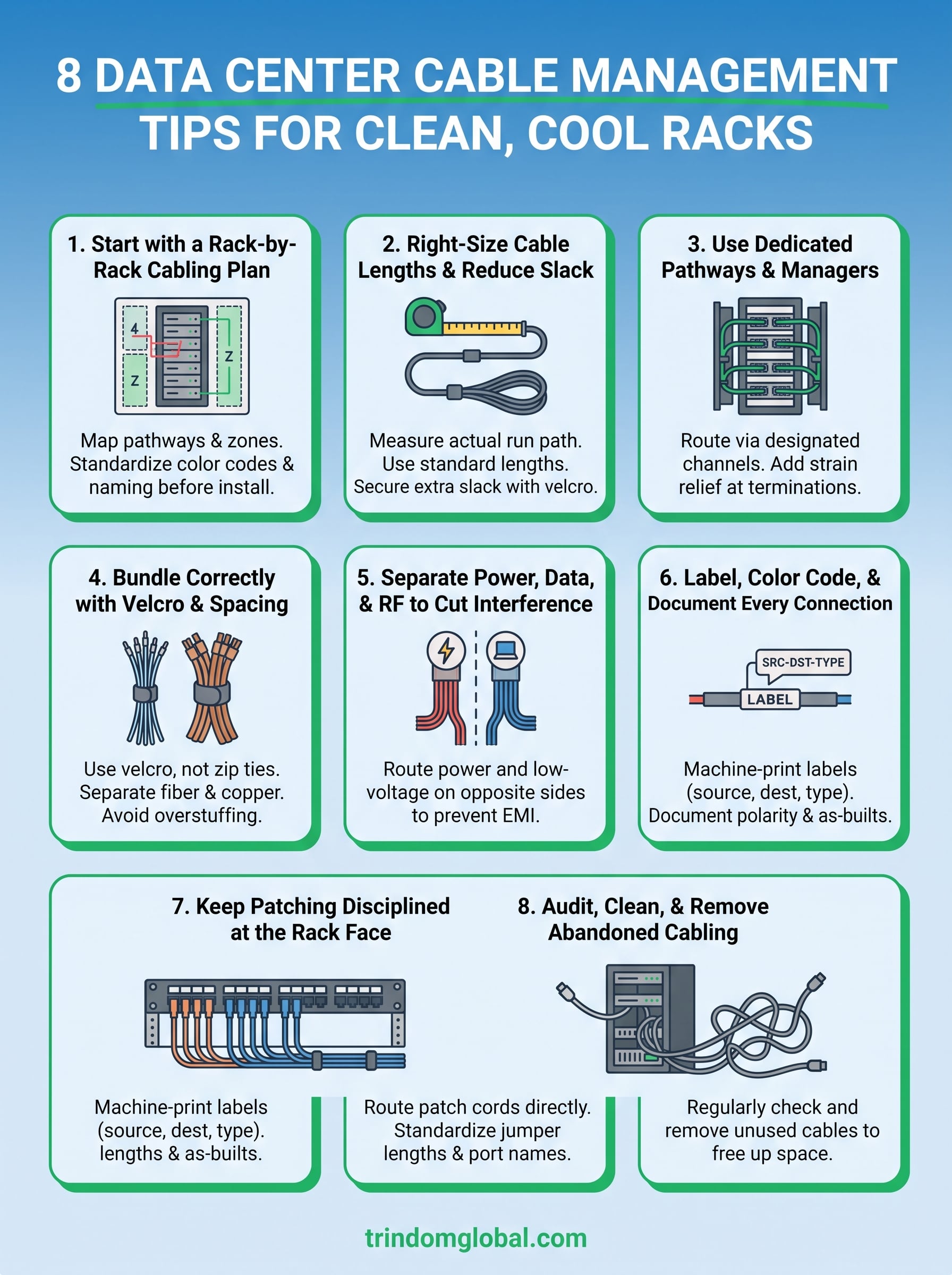

These eight data center cable management tips cover the full cycle from initial planning to ongoing audits, and every one of them compounds when you apply them together. A clean rack face means nothing if your pathways are overcrowded. Good labels lose their value fast if your documentation doesn’t stay current after each change.
Start with the tips that address your biggest current pain point. If your racks already look tangled, prioritize the audit and removal process first, then build your labeling and patching standards from there. If you’re planning a new build or expansion, start with the rack-by-rack cabling plan before you order a single cable.
If your project is too large or complex to tackle internally, our team at Trindom Global can help you design and build a structured cabling system that scales with your infrastructure. Contact Trindom Global to talk through your requirements with our team.
