A disorganized rack doesn’t just look bad, it costs you time during troubleshooting, increases the risk of accidental disconnections, and makes future upgrades a headache. When your team follows proven data center cabling best practices, every cable run has a purpose, every pathway is documented, and network performance stays predictable as you scale.
The problem is that cabling often gets treated as an afterthought. Equipment goes in first, cables get routed wherever they fit, and labels get skipped because “we’ll remember.” Six months later, nobody remembers. At Trindom Global, we’ve seen this firsthand across hundreds of structured cabling and headend buildout projects for hospitals, commercial facilities, and government agencies. The difference between a rack that runs clean for years and one that turns into a rat’s nest almost always comes down to installation discipline from day one.

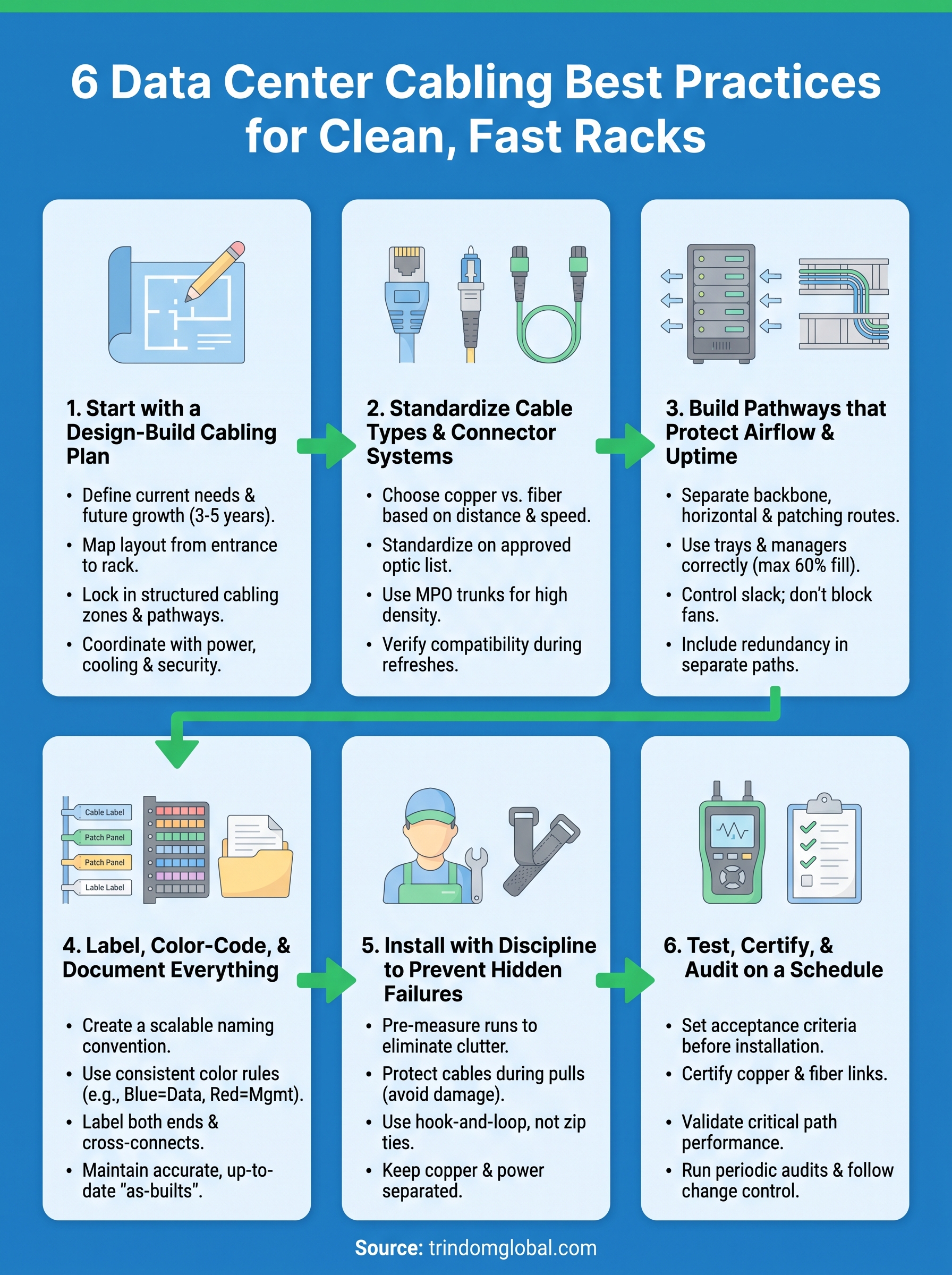

This article breaks down six practices that keep your racks organized, your airflow unobstructed, and your maintenance windows short. Whether you’re building out a new data center or retrofitting existing infrastructure, these guidelines will help you get the cabling right, and keep it right. Each practice is something our design-build and integration teams apply on active projects, so you’re getting field-tested advice, not theory.
1. Start with a design-build cabling plan
Before you pull a single cable, you need a written cabling plan that covers your current needs and your next three to five years of growth. Skipping this step is the single most common reason data center cabling projects fall apart during installation or after the first major upgrade.
Define goals, constraints, and growth targets
Start by documenting your bandwidth requirements, the number of ports you need today, and a realistic estimate of what you’ll need in two to three years. Factor in your budget ceiling, physical space limits, and any regulatory or compliance requirements that restrict how you run cable.
Map the layout from entrance to rack
Walk the physical space and trace every path a cable might take from the building entrance point to the patch panel to the end device. Your map should show where conduit runs, raised floor tiles, overhead trays, and wall penetrations sit before you finalize any run lengths.
Lock in structured cabling zones and pathways
Divide your space into defined cabling zones: main distribution area, horizontal distribution area, and zone distribution areas if your facility requires them. Locking these zones in early keeps your pathway management consistent and prevents contractors from improvising routes that block future work.
A plan that doesn’t assign specific zones to backbone, horizontal, and patching runs will produce a messy install, every time.
Coordinate early with power, cooling, and security
Cable pathways that cross power feeds or sit above cooling units create interference and airflow problems that are expensive to fix after the fact. Bring your electrical, mechanical, and physical security teams into the plan early so pathways are routed around conflicts, not through them.
Decide what to standardize across rows and rooms
Standardization is one of the most overlooked data center cabling best practices. Pick a consistent patch cord length, connector type, and color scheme per function, then document those decisions so every row in every room follows the same visual and physical standard.
Set an install-ready scope for vendors and in-house teams
Your plan should be specific enough that a vendor or installer can quote it accurately and execute without repeated clarification calls. Define run counts, panel locations, labeling requirements, and acceptance test criteria so the install scope leaves no room for interpretation.
2. Standardize cable types and connector systems
One of the most impactful data center cabling best practices is locking in your cable types and connector standards before installation starts. Mixing standards without a deliberate plan creates compatibility problems that slow down every future upgrade and troubleshooting effort.
Choose copper vs fiber based on distance and speed
Cat6A copper handles most in-rack and short horizontal runs, but once you exceed 100 meters or need speeds above 10Gbps, fiber becomes the practical choice. Match the medium to the specific link requirement, not to what you have left over from a previous project.
Pick fiber grades and use cases
OM4 or OM5 multimode fiber suits shorter intra-datacenter runs, while single-mode OS2 handles longer backbone and campus connections. Mixing grades without clear documentation creates testing failures that are difficult to trace.
Align transceivers, optics, and port types to the plan
Your transceiver selection must match the fiber type, distance, and switch port specifications at the same time. Standardize your approved optic list before any equipment enters the rack to eliminate the most common source of layer-one failures.
Locking your optic and fiber standards into one approved list before the build starts prevents emergency procurement mid-project.
Reduce adapter sprawl with a connector strategy
Adapter accumulation is a quiet reliability risk. Standardize on LC duplex or MPO connectors across your panels and restrict adapters to documented exceptions only.
Plan for high-density builds with trunking
Pre-terminated MPO trunk cables reduce installation time and keep high-density runs clean. Use them wherever port counts per rack exceed what individual patch cords can manage neatly.
Avoid compatibility traps during refresh cycles
When you refresh equipment, verify connector and transceiver compatibility against your existing plant before ordering. A small audit at the planning stage prevents costly surprises mid-project.
3. Build pathways that protect airflow and uptime
Poorly routed cables block airflow, force technicians to reach around tangled runs, and make every maintenance window longer than it needs to be. Following data center cabling best practices means treating your pathways as infrastructure, not an afterthought.
Separate backbone, horizontal, and patching routes
Keep your backbone, horizontal, and patch cable routes physically separated. Mixing them creates congestion at cable managers and makes tracing individual circuits under pressure nearly impossible.

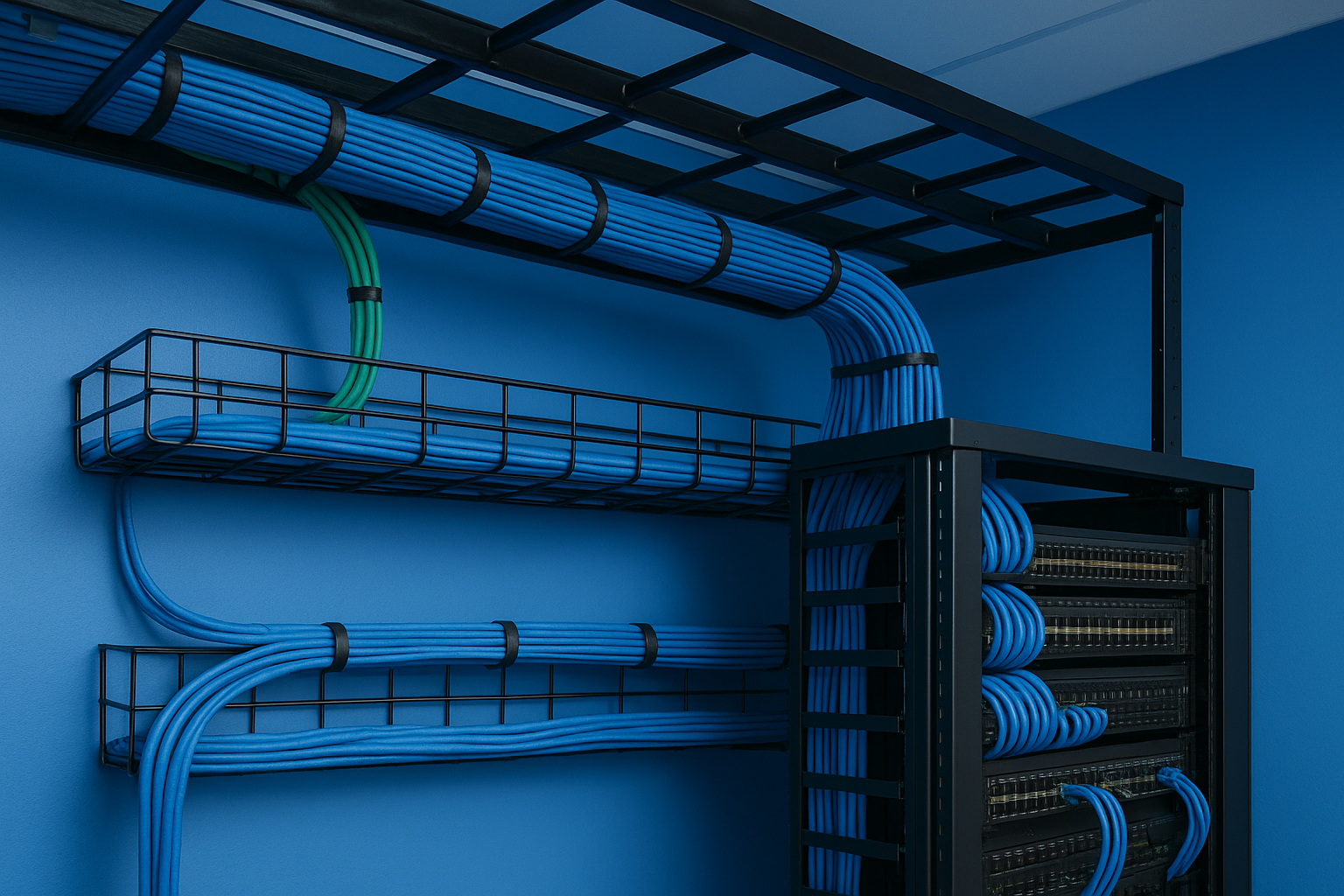

Use trays, ladder racks, and vertical managers correctly
Ladder racks work well for backbone and high-count horizontal runs, while wire management panels and vertical managers handle patching zones. Assign each pathway type to the right hardware and document the assignment.
Fill your trays and managers to no more than 60 percent capacity so you leave room for future runs without disrupting what is already in place.
Keep bend radius and fill limits within spec
Exceeding bend radius limits degrades signal performance and produces latent failures that only show up under load. For Cat6A, maintain a minimum bend radius of four times the cable diameter through every turn.
Control slack so it never blocks service loops or fans
Excess slack in front of a rack blocks fan exhaust and creates a fire hazard. Cut patch cords to length or use pre-measured stock to eliminate unnecessary loops.
Design for easy adds, moves, and changes
Leave defined spare capacity in every pathway. Structured pathways that require you to disturb existing cables just to add new ones slow down every future change.
Include redundancy where outages cost real money
Route redundant circuits through physically separate pathways so a single cable management failure cannot take down both primary and backup connections simultaneously.
4. Label, color-code, and document everything
Labels and documentation are what separate professional cabling installations from ones that fail at the worst possible moment. Following data center cabling best practices means every cable, panel, and port has a clear identity before you close the rack.
Create a naming convention that scales
Your naming convention should encode location, function, and sequence in a format that works whether you have 10 racks or 100. Build and document it before you label a single cable, not after the install is already underway.

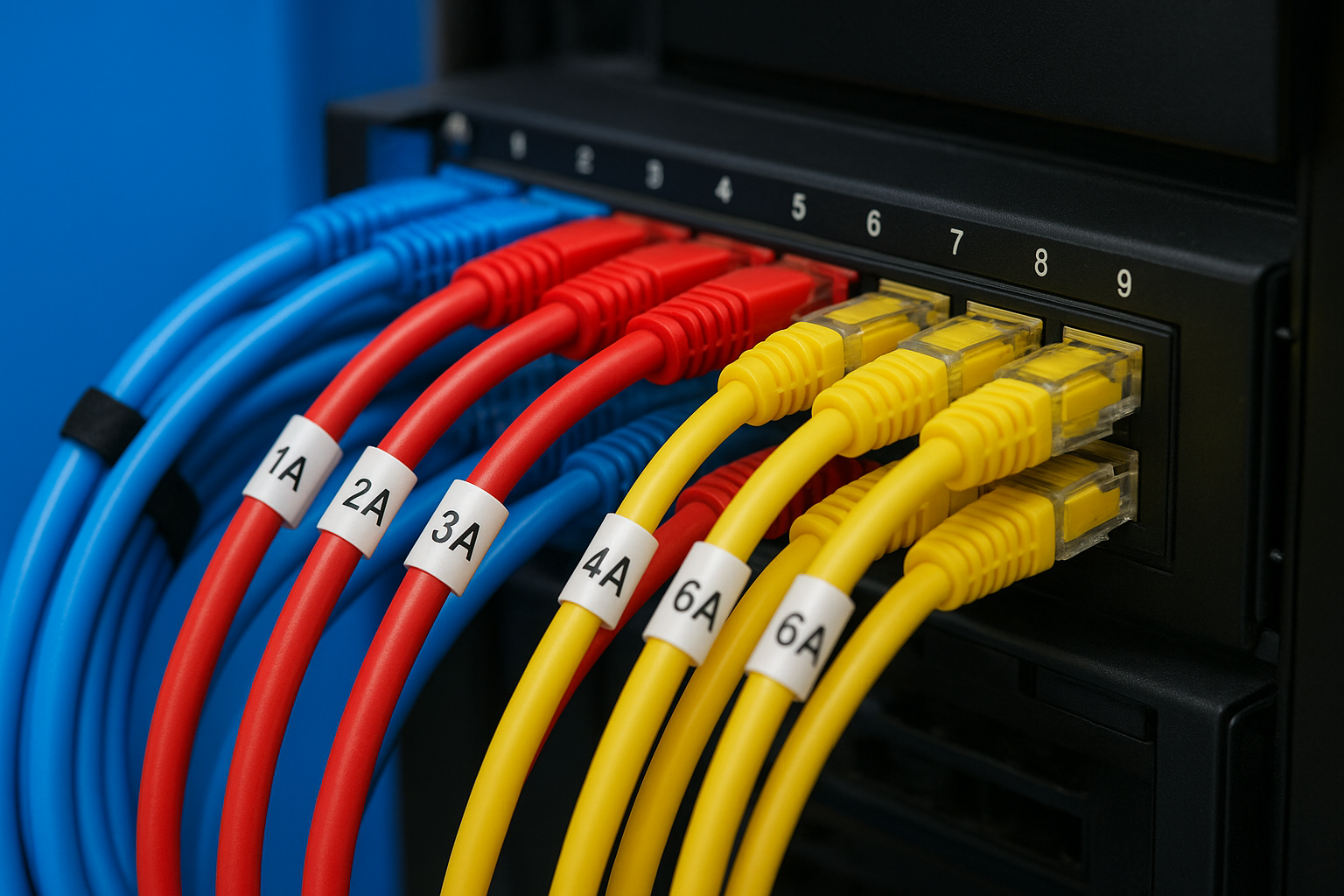

Use consistent color rules for function and risk
Assign specific cable colors to specific functions and write the scheme into a shared reference document. Common standards include:
- Blue for data links
- Red for management or out-of-band access
- Yellow for fiber runs
Label both ends and every cross-connect point
Every cable needs a label at both the source and destination, plus any intermediate patch panel where it terminates. A label at one end only sends technicians to the wrong port under pressure.
A missing far-end label turns a five-minute trace into a thirty-minute incident during a production outage.
Maintain accurate as-builts after every change
Update your as-built documentation the same day a change happens. Stale records are more dangerous than no records because they send technicians confidently in the wrong direction.
Track ports, panels, and circuits with a single source of truth
Keep all port assignments and circuit records in one system so your team never needs to cross-reference two sources to confirm a single connection.
Make troubleshooting safe and fast during incidents
Accurate labels and current documentation let your team isolate a fault without disturbing adjacent circuits. That accuracy directly protects both network uptime and the surrounding cabling during high-pressure incidents.
5. Install with discipline to prevent hidden failures
Following data center cabling best practices during the physical install is where planning meets reality. Poor installation technique creates hidden failures that pass initial testing and only surface under production load or during a critical maintenance window.
Measure runs and patch cords to eliminate clutter
Pre-measure every run before you pull cable and cut patch cords to the actual length needed. Excess cord bunched inside a rack blocks airflow and access, two problems that compound over time.
Protect cables during pulls and terminations
Pull cables with steady, controlled tension and never exceed the maximum pulling force specified by the manufacturer. Damaged jackets and stressed conductors at termination points are the most common source of intermittent link failures.
A cable that looks fine on the outside can carry internal damage that degrades performance for months before it fails completely.
Use strain relief and routing that prevents micro-bends
Secure every cable with proper strain relief at patch panels and equipment ports. Micro-bends from tight routing or sharp angles cause signal attenuation that certified testing may not always catch.
Prefer hook-and-loop over zip ties where appropriate
Hook-and-loop fasteners let you add and remove cables without cutting, which protects both new and existing runs. Over-tightened zip ties crush cable jackets and degrade copper performance over time.
Keep copper and power separated to reduce interference
Route copper data cables at least six inches away from power feeds and use separate pathways wherever you can. Proximity to power creates electromagnetic interference that raises error rates across affected links.
Handle grounding, bonding, and firestopping correctly
Proper grounding and bonding protect both equipment and personnel from electrical faults. Seal every wall and floor penetration with rated firestopping material to meet code and contain any fire spread.
6. Test, certify, and audit on a schedule
Testing is the final checkpoint that confirms your cabling plant performs as designed, not just looks organized. Skipping this step means hidden faults stay hidden until they cause a production outage.
Set acceptance criteria before the first cable gets pulled
Define your pass/fail standards for every link type before installation begins. Document acceptable insertion loss, return loss, and propagation delay thresholds so your team and any outside contractors share identical performance targets from the start.
Certify copper links and record results
Use a field certification tester that meets the appropriate category standard and save every result to a physical or digital report. These records serve as your baseline for future audits and protect you during vendor disputes over link performance.
Test fiber with the right method for the link type
Insertion loss testing works for most intra-datacenter fiber runs, while OTDR testing adds value for longer backbone segments where you need to locate specific faults. Match your test method to the link length and criticality before you start.
A certified test report is the only reliable evidence that a link meets spec on day one.
Validate end-to-end performance for critical paths
Run traffic tests across your most critical circuits after physical certification to confirm performance holds under real load conditions.
Run periodic audits to catch drift and documentation gaps
Schedule quarterly or semi-annual audits to verify that your as-built records still match the physical plant.
Build a repeatable change control process for patching
Require a documented work order for every patch change so your records stay accurate without relying on memory.
Next Steps
These six data center cabling best practices give you a clear framework to build from, whether you are starting a new facility or cleaning up an existing installation. The difference between a rack that stays organized for years and one that becomes a maintenance burden almost always comes down to how much discipline you apply during planning and installation, not the equipment you choose.
Your next move is to audit what you currently have. Walk your space, check your labels, and compare your physical plant against your documentation. Identify the gaps and prioritize fixes by risk: documentation failures and airflow problems usually come first, followed by any links that have never been certified.
