Every cable run, patch panel, and fiber connection inside a data center either meets a recognized standard or introduces risk. Data center cabling standards exist to remove guesswork from infrastructure design, giving engineers and facility managers a shared framework for reliability, performance, and safety. Without them, even well-funded builds can end up with signal degradation, failed inspections, or costly rework that pushes projects weeks past deadline.
At Trindom Global, we design, build, and install structured cabling systems across healthcare, commercial, government, and multi-family environments. Our teams work directly with standards like ANSI/TIA-942, ISO/IEC 24764, and BICSI guidelines every day, not as abstract references, but as practical blueprints that shape how we pull cable, terminate connections, and validate completed infrastructure. That hands-on experience is exactly why we put this guide together: to give you a clear, usable reference for the standards that matter most.
This article breaks down the major data center cabling standards, explains what each one covers, and shows how they overlap or differ. You’ll learn which standards apply to your environment, what compliance actually requires at the installation level, and where common mistakes happen. Whether you’re planning a new data center build or auditing an existing facility, this guide will help you understand the rules your cabling infrastructure needs to follow, and why those rules exist in the first place.
Why cabling standards matter in data centers
A data center’s cabling infrastructure carries every bit of traffic that flows through your facility. When that infrastructure is built without a recognized framework, you end up with inconsistent performance, unpredictable failure points, and an environment that’s nearly impossible to troubleshoot efficiently. Data center cabling standards exist to close those gaps by giving your design team, installation crew, and facility managers a common language and a set of proven rules to follow.
Performance and reliability from the ground up
Poor cabling choices don’t always show up immediately. A cable that’s been kinked during installation, a connector terminated slightly outside specification, or a pathway that creates excessive bend radius can all degrade signal quality gradually, making the root cause difficult to trace once problems surface. Standards define exact tolerances for bend radius, pull tension, connector performance, and pathway fill ratios precisely so these failure modes don’t accumulate silently inside your infrastructure.
Following performance thresholds set by recognized standards is one of the most effective ways to prevent intermittent failures that are expensive to diagnose after the fact.
Structured cabling standards also specify how horizontal and backbone runs should be organized, which directly affects how quickly your team can identify and isolate faults when something does go wrong. A well-documented, standards-compliant cabling plant can cut troubleshooting time from hours to minutes.
Compliance, audits, and liability
Many industries tie regulatory compliance directly to infrastructure standards. Healthcare facilities, government contractors, and financial institutions often face third-party audits that review whether the physical layer of their IT infrastructure meets specific benchmarks. Failing those audits can delay go-live timelines, trigger remediation costs, or in regulated sectors, create legal and contractual exposure for the building owner or the contractor who performed the work.
Your insurance carrier may also have strong opinions about how your facility was built. Some policies require documented evidence of standards compliance as a condition of coverage for equipment damage or downtime losses, which means the paper trail your installation team produces has real financial consequences beyond just satisfying a checkbox.
Cost control over the infrastructure lifecycle
Most data center operators focus on upfront installation costs, but the total cost of ownership for a cabling plant extends over 10 to 15 years. Standards-compliant infrastructure costs more to plan and install correctly upfront, but it dramatically reduces the frequency of moves, adds, and changes that would otherwise require full recertification or replacement of non-conforming sections. Cutting corners at installation often means paying two or three times the original labor cost to remediate the work later when your facility scales or undergoes a technology refresh.

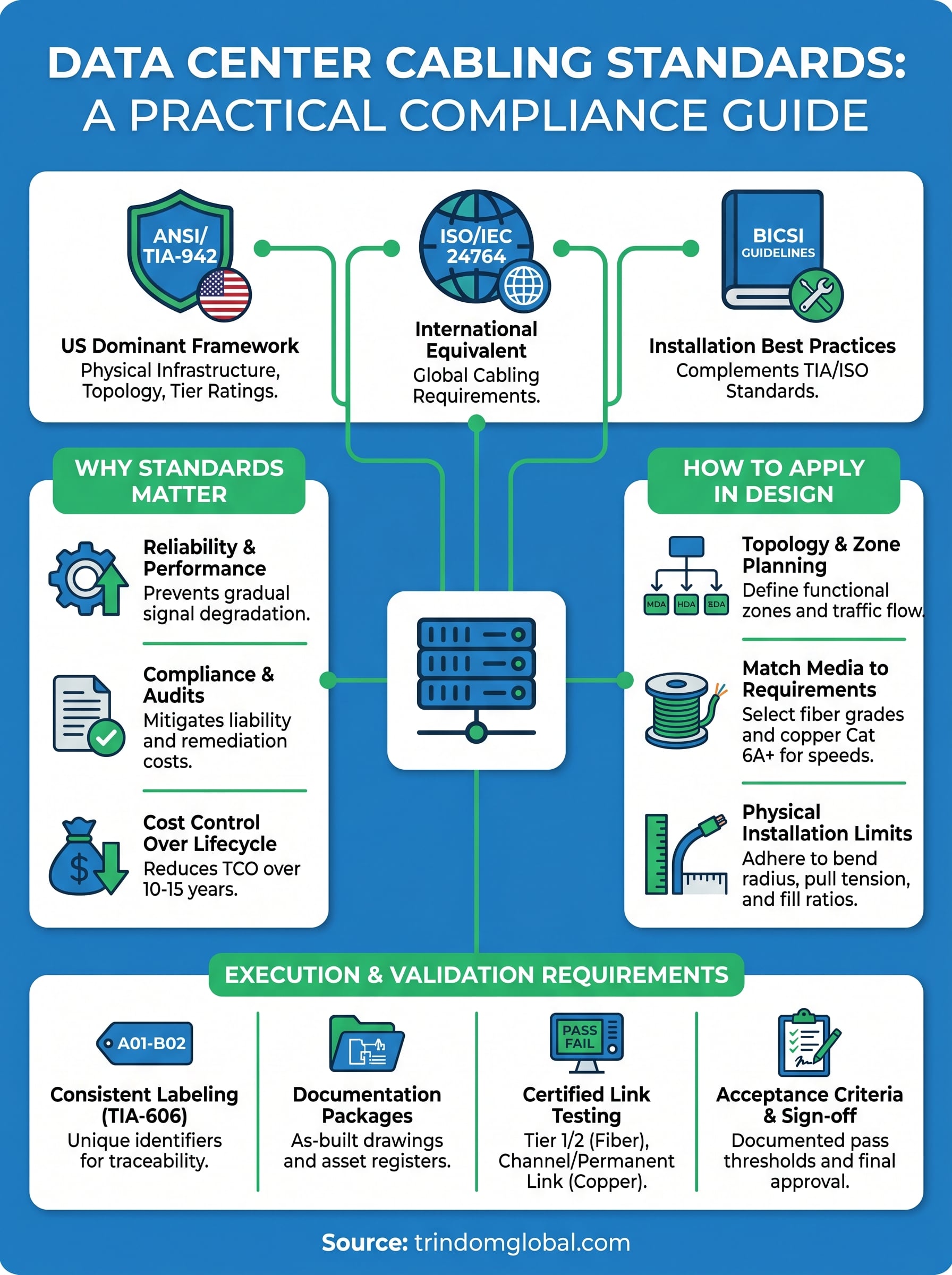

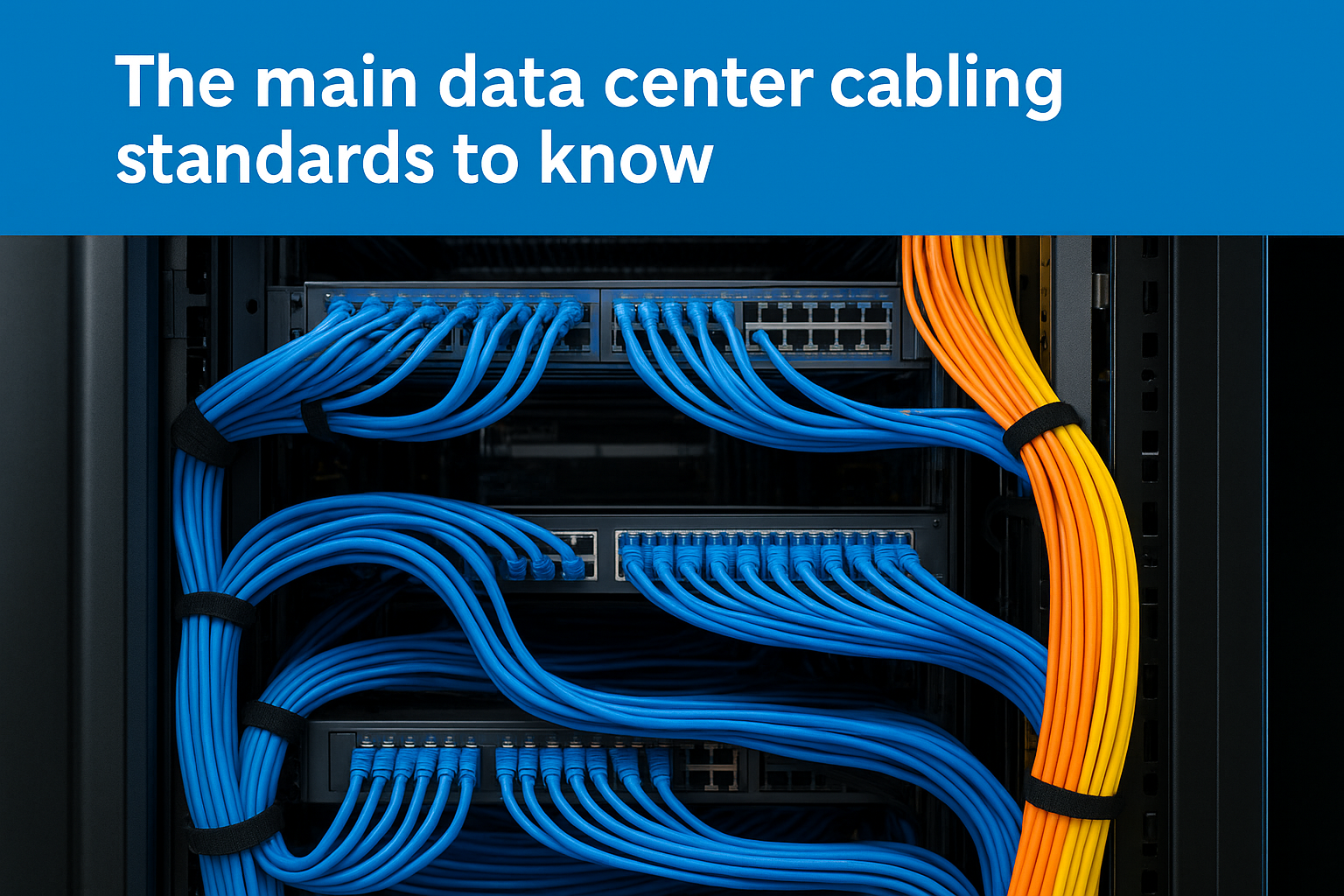

The main data center cabling standards to know
Three frameworks define the majority of data center cabling standards work you’ll encounter in practice. Each one approaches the topic from a slightly different angle, and understanding the scope of each standard helps you apply them correctly rather than treating them as interchangeable.
ANSI/TIA-942
The ANSI/TIA-942 standard is the dominant framework for data center design in the United States. It covers physical infrastructure requirements including topology, cabling distances, pathway specifications, and the four-tier rating system (Rated 1 through Rated 4) that describes redundancy and availability levels. Most US-based data center builds reference TIA-942 as the primary compliance benchmark, and many vendor warranties and insurance requirements explicitly cite it.
If you’re building or upgrading a data center in the United States, ANSI/TIA-942 is typically your starting point before any other standard comes into play.
ISO/IEC 24764
The ISO/IEC 24764 standard provides the international equivalent to TIA-942, covering generic cabling requirements for data centers across global markets. If your organization operates facilities outside the US, or if you work with international clients and partners, you’ll likely need to demonstrate alignment with ISO/IEC 24764 alongside or instead of TIA-942. The two standards share significant overlap in topology and performance requirements, but they differ in terminology and some specific thresholds.
BICSI Guidelines
BICSI publishes BICSI 002, a comprehensive design and implementation manual that complements TIA and ISO standards rather than replacing them. Where TIA-942 focuses on specifications, BICSI 002 goes deeper into installation best practices, pathway planning, and project documentation procedures. Facilities that want both a compliant and well-executed cabling plant typically treat BICSI guidelines as the implementation-level guidance that sits alongside the compliance frameworks.
How to apply standards in a cabling design
Knowing which data center cabling standards exist is only half the job. The harder part is translating those documents into actual design decisions before your team pulls a single cable. Standards give you the rules; your design process is where you decide how those rules map to your specific topology, equipment layout, and growth requirements.

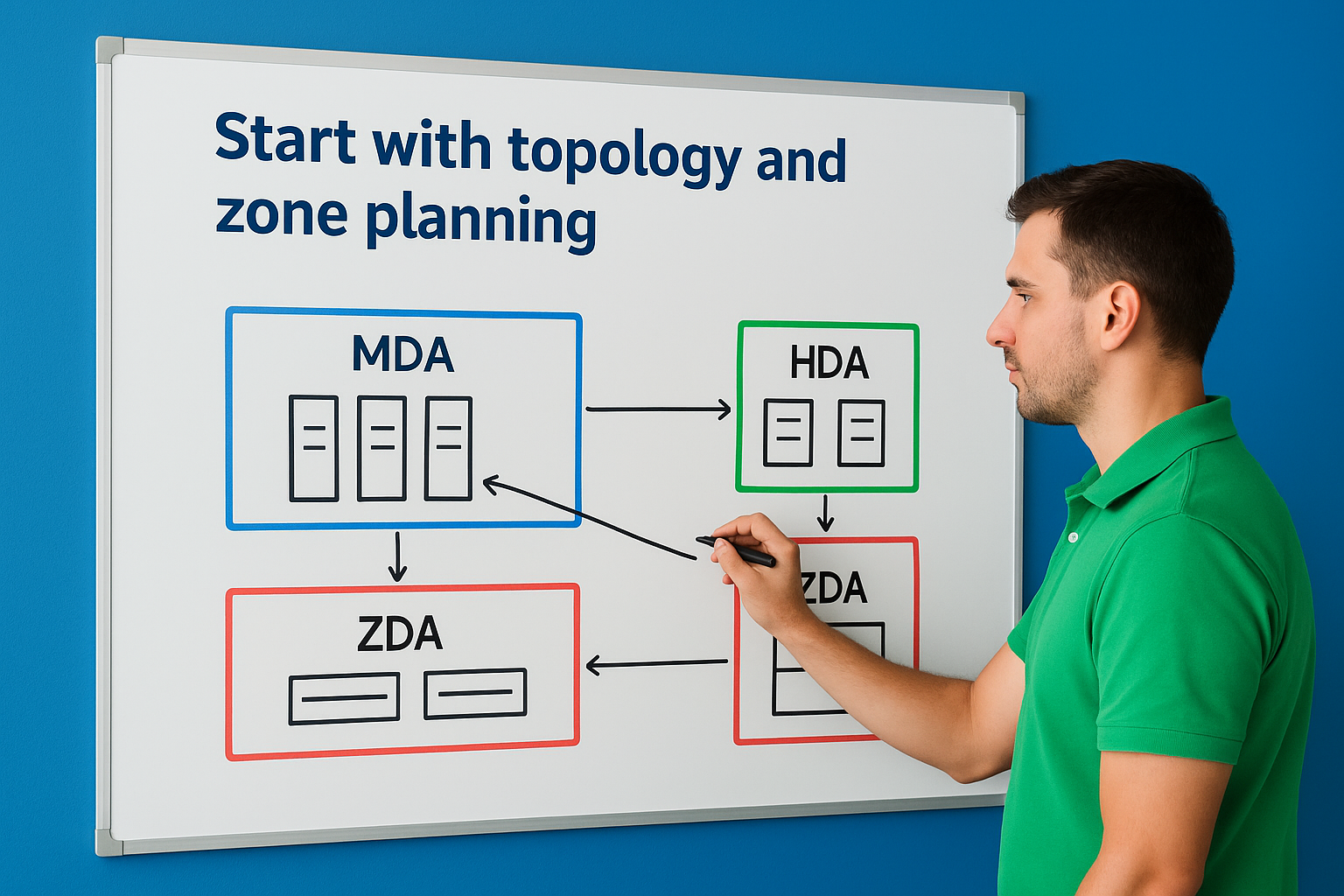

Start with topology and zone planning
Your first step is defining the cabling topology your facility will use. ANSI/TIA-942 specifies a hierarchical structure built around the main distribution area (MDA), horizontal distribution areas (HDAs), and zone distribution areas (ZDAs). Before you route a single pathway, you need to map out where each of these functional zones will sit relative to your equipment rows and how traffic will flow between them.
Getting zone placement right early prevents the most common and expensive redesigns later in the project.
Distance limits also factor in here. TIA-942 sets maximum channel lengths based on media type, and your topology has to stay within those limits or you’ll need to introduce additional distribution points or switch to higher-grade media. Getting this wrong forces costly mid-project rework that could have been avoided entirely at the design stage.
Match media type to your performance requirements
Once your topology is set, you need to select the cable media that supports your target speeds and distances. Multimode fiber grades (OM3, OM4, OM5) and single-mode options each carry different reach and bandwidth profiles, and your design should match media selection to the specific application running across each link rather than defaulting to the lowest-cost option available.
Copper cabling still plays a role in structured designs, particularly for shorter horizontal runs to end devices. TIA-568 performance categories (Cat 6A and above) define what copper supports at 10GbE speeds, so your design documentation should specify category ratings for every copper segment in the plant.
Installation, labeling, and documentation requirements
A compliant design means nothing if your installation team doesn’t execute it correctly. Data center cabling standards specify physical installation requirements that govern how your crew handles cable during the pull, how they terminate connections, and what bend radius and fill ratio limits they must stay within throughout the process. Getting installation right is where compliance either holds or falls apart.
Physical installation practices
During the pull, your technicians need to respect maximum pull tension limits for each cable type to avoid internal conductor damage that won’t show up visually but will degrade performance over time. Cables also need to be dressed and secured consistently along every pathway, with no sharp bends, pinch points, or areas where cable weight creates stress on terminations.
How your crew installs cable matters as much as which cable they choose, poor physical handling invalidates even the highest-grade media.
Labeling conventions
TIA-606 sets the labeling standard your installation team should follow. Every cable, panel port, and pathway needs a unique identifier that ties directly to your documentation, so any technician working in the space can trace a connection without guessing. Labels need to be durable, machine-printed, and readable from a normal working position without disturbing adjacent infrastructure.
Consistent labeling also speeds up moves, adds, and changes significantly. When every element carries a clear, permanent identifier, your team spends less time tracing cables manually and more time executing the actual work.
Documentation packages
Your final documentation package should include as-built drawings, test reports for every link, and a complete asset register tied to your labeling scheme. Standards require this package to reflect the actual installed state rather than the original design intent, so any field changes made during installation need to be captured before the project closes out.
Testing and acceptance for standards compliance
Once installation wraps up, your project isn’t finished until every link passes formal testing against documented acceptance criteria. This is the step where your team confirms that the physical work actually meets the data center cabling standards specified in your design documents, and it’s the only reliable way to catch installation errors before your facility goes live.
Link testing and verification
Your testing team should use certified field test equipment calibrated to the specific standard and performance tier you’re targeting. For fiber links, that means running Tier 1 insertion loss tests at minimum, with Tier 2 OTDR testing required for any links that will carry high-speed backbone traffic. For copper, your testers need to run a full channel and permanent link certification suite that measures insertion loss, return loss, NEXT, and propagation delay against the category limits defined in your design specification.
A link that passes visual inspection but fails certification testing is a failed link, never accept completed work without documented test reports.
Your test equipment should generate pass/fail reports at the individual link level so you can track exactly which terminations need rework rather than spending time isolating problems manually. Keep those reports as part of your permanent project record.
Acceptance criteria and sign-off
Define your acceptance criteria in writing before installation begins, not after. This document should specify which test standard applies, what performance limits define a passing result, and who has authority to approve the final test package on behalf of the facility owner. Having this agreed upfront removes disputes at project closeout.
Your final sign-off package should tie test report data directly to your labeling scheme so every passing link is traceable to a specific port and pathway. That connection between test data and as-built documentation is what makes your compliance record useful when auditors or your own team need it later.
Quick wrap-up
Data center cabling standards give your infrastructure a foundation that holds up under real operational pressure. ANSI/TIA-942 defines the topology and rating system for US facilities, ISO/IEC 24764 covers international requirements, and BICSI 002 provides the installation-level guidance that makes both of those frameworks executable in the field. Apply them together from the design stage forward, and you reduce the risk of costly rework, failed audits, and performance issues that surface after your facility is already live.
Compliance doesn’t stop at pulling cable. Your team needs to label every element, document every link, and test every connection against defined acceptance criteria before the project closes out. Following that process consistently is what separates infrastructure that performs reliably over a 10 to 15 year lifecycle from a plant that creates ongoing problems.
