Getting fiber optic cable from point A to point B isn’t just about pulling glass through conduit. Fiber optic installation requirements span building codes, fire ratings, bend radius limits, connector types, and testing protocols, and missing any one of them can mean failed inspections, signal loss, or costly rework. Whether you’re running fiber into a hospital headend, a hotel backbone, or a multifamily residential campus, the standards you follow determine whether the network actually performs once it’s lit.
At Trindom Global, we handle structured cabling and network installations across healthcare, commercial, hospitality, and government environments. We’ve seen firsthand what happens when fiber projects skip the planning stage or cut corners on code compliance. Proper preparation isn’t optional, it’s what separates a clean, certified install from one that gets torn out and redone. That hands-on experience is exactly what shaped this guide.

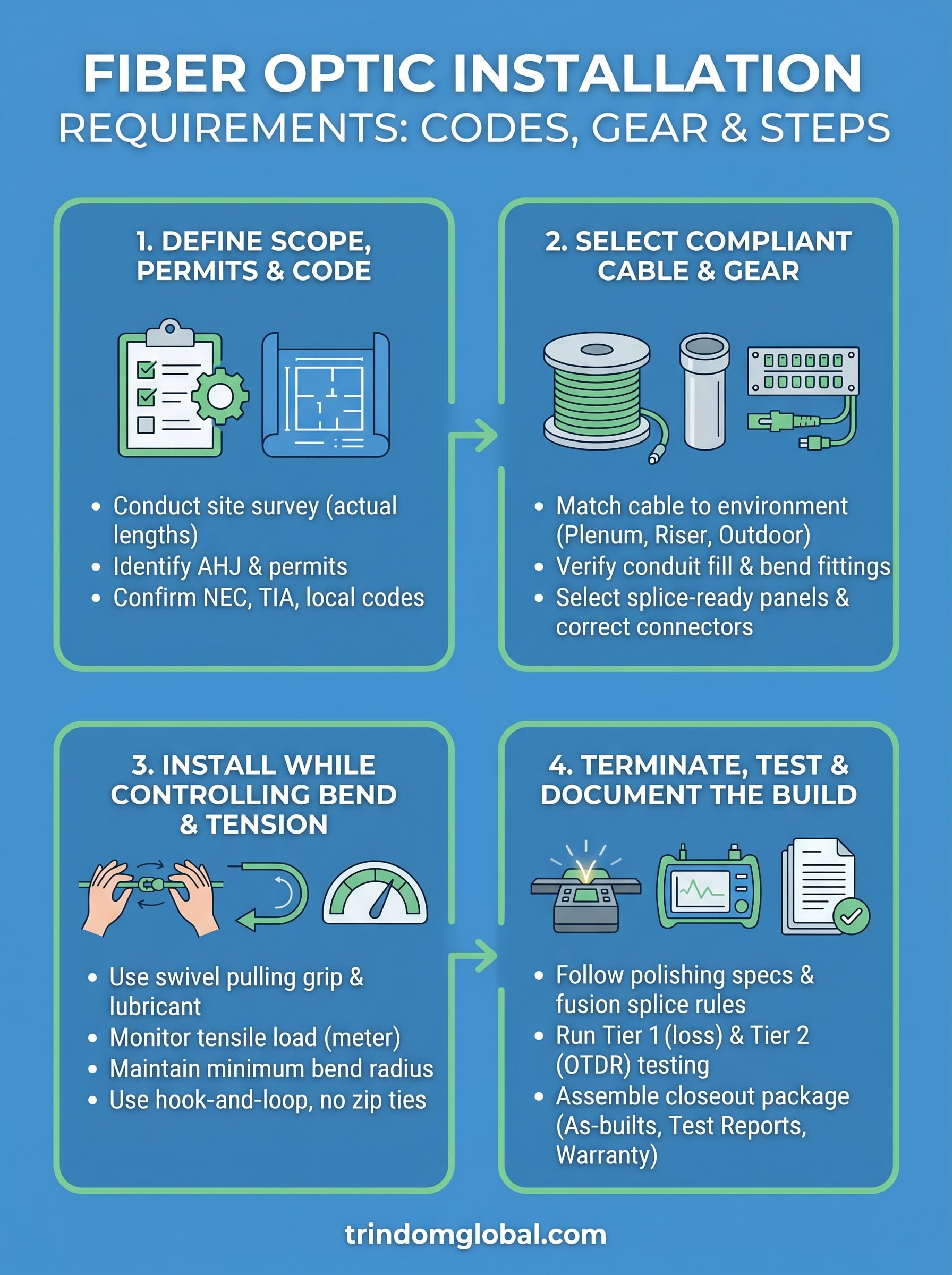

Below, we break down the codes and standards you need to meet, the gear and tools required for a professional-grade installation, and the step-by-step process from site survey through final testing. By the end, you’ll have a clear picture of what it takes to plan and execute a fiber optic installation that passes inspection and holds up long-term.
What “installation requirements” include
When most people hear “fiber optic installation requirements,” they picture pulling cable through conduit and calling it done. The reality is that requirements touch every phase of a project, from the permit you pull before the first hole is drilled to the test report you submit after the last connector is polished. Understanding the full scope upfront is what keeps you from hitting costly surprises mid-project.
Standards and codes that govern the work
Industry standards and local building codes form the foundation of any compliant fiber installation. In the United States, three bodies set the rules you’ll encounter most often:
| Standard | Body | What It Covers |
|---|---|---|
| TIA-568 | Telecommunications Industry Association | Structured cabling performance, connector specs, testing requirements |
| NFPA 70 (NEC) | National Fire Protection Association | Cable fire ratings, conduit fill, grounding |
| BICSI TDMM | BICSI | Design and installation best practices for certified installers |
Local jurisdictions frequently adopt the NEC and layer additional requirements on top of it, so always verify with your authority having jurisdiction (AHJ) before finalizing your design. Hospitals and government facilities typically enforce their own internal standards as well, which means your code checklist can grow quickly depending on the project environment.
Meeting code is not a formality. A fiber installation that fails inspection delays your project and can require full re-pulls of cable that has already been terminated and secured.
Physical and environmental constraints
Fiber optic cable is more sensitive to physical handling than copper, and that sensitivity drives a significant portion of what “requirements” means in practice. Every cable type carries a minimum bend radius (typically 10x the cable diameter during installation and 15x at rest), a maximum tensile load rating, and a crush resistance specification. Violate any of these, and you risk cracking or stressing the glass core without any visible damage to the jacket, producing signal loss that only appears during final testing.
Beyond the cable itself, pathway and space requirements add another layer. Conduit fill ratios, cable tray loading limits, and minimum separation distances from electrical runs all apply to fiber runs. In plenum spaces, you must use plenum-rated cable to satisfy fire suppression requirements. For outdoor or direct-burial runs, the cable must carry the appropriate UV resistance and moisture protection ratings for the specific environment it will sit in.
Documentation and testing requirements
A completed fiber installation is not finished until every link is tested and the results are documented. Tier 1 testing covers insertion loss and link length, which is the baseline. Most commercial and enterprise projects also require Tier 2 OTDR testing, which produces a trace showing splice loss, connector reflectance, and any anomalies along the entire fiber path.
As-built drawings, test reports, and warranty documentation all belong in the project closeout package. For healthcare and government work, these records are often required for regulatory compliance and future maintenance. Skipping documentation is one of the most common oversights on otherwise solid installations, and it creates real problems when the network needs troubleshooting or expansion years down the road. Treating documentation as a deliverable, not an afterthought, is what separates a professional-grade project from one that just barely crossed the finish line.
Step 1. Define scope, permits, and code obligations
Before you order a single spool of cable, you need a clear picture of what the project actually involves and which rules apply to your specific site and environment. Skipping this step is the single fastest way to end up mid-installation with a design that doesn’t meet local code or a permit that wasn’t pulled before work started. Defining scope, permits, and code obligations upfront saves you from that outcome.
Conduct a site survey and define the cable routes
Walk the entire cable path yourself before you finalize anything. Measure actual run lengths from each termination point back to the headend or distribution frame, accounting for vertical risers, conduit bends, and any required service loops. Identify where the cable will pass through fire-rated walls or floors, because those penetrations require firestop fill that must appear on your drawings.
Document the environmental conditions along each route: plenum ceiling spaces, outdoor segments, areas with high electromagnetic interference, and any locations where cable will share pathways with high-voltage electrical runs. Each condition changes your cable specification in the next step.
Measure cable routes with actual length on paper before you spec the cable. Estimating “about 200 feet” has caused more short pulls than any other single mistake.
Identify permits and your authority having jurisdiction
Contact your local building department early to confirm which permits apply. Most commercial fiber installations require at least a low-voltage electrical permit, and projects in healthcare or government facilities often require additional approvals from the facility’s own engineering or compliance teams. Find out who your AHJ is and ask them directly what they need to sign off on the work.
Use the checklist below to track your permit and AHJ requirements before breaking ground:
| Item | Responsible Party | Status |
|---|---|---|
| Low-voltage permit pulled | Project lead | |
| AHJ contact identified | Project lead | |
| Fire-rated penetration approvals | AHJ / facility engineer | |
| Healthcare or government facility approvals | Facility compliance team | |
| As-built drawing format confirmed | Designer |
Confirm which codes apply to your project
Most US projects start with NEC Article 770 for optical fiber cables and TIA-568 for structured cabling performance. Write down every standard that applies, then verify with your AHJ whether the local jurisdiction has adopted amendments. Fiber optic installation requirements vary enough between environments that a single code checklist rarely fits every project, so build yours specifically for the site you’re working on.
Step 2. Select compliant cable, pathways, and equipment
With your scope defined and permits confirmed, your next task is to match every material choice to the environment and standards you documented in Step 1. Fiber optic installation requirements don’t allow generic selections. Each segment of your project has specific cable ratings, conduit types, and hardware specs that must align before you start pulling anything.
Choose the right cable type for the environment
Cable type determines both performance and code compliance for every run on your project. The table below maps common installation environments to the cable specification you should be selecting:
| Environment | Cable Type | Key Requirement |
|---|---|---|
| Indoor plenum (above ceiling tiles) | OM4 or OS2, OFNP-rated | NEC 770.154 plenum rating required |
| Indoor riser (vertical between floors) | OM4 or OS2, OFNR-rated | NEC 770.154 riser rating required |
| Outdoor, aerial or buried | OS2, armored or direct-burial rated | UV and moisture resistance |
| Indoor to outdoor transition | OS2 dual-rated (OFNP + outdoor) | Single cable avoids a mid-run splice point |
| Healthcare headend connections | OS2 single-mode | Low-loss performance over longer distances |
Multimode fiber (OM3 or OM4) works for short campus runs under 400 meters, while single-mode OS2 is the correct choice for anything longer or for any run that may need to scale. Substituting multimode on a long hospital corridor run because it costs less upfront is a mistake that shows up during testing, not before.
Never swap a cable rating to save money on materials. Replacing a non-plenum cable pulled through a plenum ceiling costs far more in labor than the cable itself ever would have.
Select pathways and hardware that meet code
Conduit, cable trays, and innerduct protect your fiber and must meet both NEC fill ratios and your AHJ’s specific requirements. For a 0.9mm tight-buffered fiber cable inside 1/2-inch EMT conduit, the standard 40% fill ratio limits you to roughly two cables. Exceeding that limit makes future pulls harder and can stress cables that are already in place.
Use this checklist when specifying pathways and passive hardware for your project:
- Conduit fill: confirm 40% maximum fill per NEC Chapter 9
- Bend radius fittings: use sweep elbows, not standard 90-degree conduit elbows
- Cable tray: size for current load plus 20% capacity for future expansion
- Fiber enclosures: select splice-ready panels with enough ports for your strand count plus spares
- Patch panels: verify connector type (LC, SC, or MPO) matches your active equipment ports
Every hardware decision you make in this step directly affects whether the physical layer performs once the network is live.
Step 3. Install cable while controlling bend and tension
The physical pull is where fiber optic installation requirements move from paper into practice, and mistakes made here are often invisible until testing reveals them. Unlike copper, fiber doesn’t kink or show obvious damage when it’s overstressed. A cracked or micro-bent fiber core looks identical on the outside to a perfectly healthy one, which means you have to control your technique rather than rely on visual cues to catch problems.
Set up pulls to avoid exceeding tensile limits
Before you pull a single foot of cable, confirm the maximum tensile load rating on your cable’s spec sheet and build your setup around that number. Most indoor fiber cables rate between 100 and 600 newtons during installation. Attach a swivel pulling grip to the cable end, not directly to the jacket, so twisting stress doesn’t transfer into the fiber strands. For longer runs, position a crew member at each intermediate conduit entry point to hand-feed slack and reduce the load on the pulling end.
Work through this checklist before each pull:
- Attach a swivel pulling grip to the cable, never tie off to the jacket directly
- Set a calibrated pull meter inline so you can monitor tension in real time
- Lubricate conduit runs with a cable pulling lubricant rated for fiber optic cable
- Station a helper at each intermediate pull point for runs over 100 feet
- Mark your minimum bend radius on any turn in the route before the pull starts
If your pull meter spikes above the cable’s rated tensile limit, stop immediately, identify the cause, and do not continue until the obstruction is cleared.
Maintain bend radius at every turn
Every bend in your cable route needs to respect the minimum radius specified by the manufacturer, which is typically 10x the cable’s outer diameter during the pull and 15x at rest. A standard 3mm indoor cable requires a 30mm bend radius while pulling and a 45mm radius once it’s secured and dressed. Replace any standard 90-degree conduit elbows with sweep elbows or large-radius bends before you start, because correcting bend radius violations after cable is in place typically means re-pulling the entire segment.
Dress and secure every fiber run with hook-and-loop straps, not zip ties pulled tight, which can crush the cable jacket and introduce micro-bends that raise your insertion loss. Tight final dressing is the last physical protection your fiber receives before testing begins.
Step 4. Terminate, splice, test, and document the build
With your cable in place and every run dressed and secured, your final step converts raw fiber into a certified, working network. This is also where most of the fiber optic installation requirements you defined in Step 1 get verified against real-world results. Sloppy terminations and missing test records will fail inspections and create troubleshooting problems that follow the project for years.
Terminate and splice at enclosures
Connector termination quality determines your insertion loss at every patch point, so work in a clean environment and follow your connector manufacturer’s published polishing procedure for the connector type you specified. For LC and SC connectors on single-mode OS2 fiber, your end-face geometry must meet IEC 61300-3-35 limits: radius of curvature between 7mm and 25mm, fiber height between -50nm and +50nm, and an apex offset under 50 micrometers.
For fusion splicing on longer runs or at building entry points, set your splicer’s arc calibration before the first splice of the day, not just at the start of the project. Each fusion splice should show estimated loss under 0.1 dB on the splicer’s display before you close the splice protector. Mechanical splices are acceptable for some applications but carry higher loss and should not be used on runs that will undergo Tier 2 OTDR testing without clear project approval.
Run Tier 1 and Tier 2 testing
Tier 1 testing with a light source and power meter confirms that insertion loss on each fiber link falls within the budget you calculated during design. Every link gets tested in both directions and the results get logged by fiber number and link endpoint.
Record every test result at the time of measurement. Reconstructing test data from memory after the fact is unreliable and will not satisfy most commercial project closeout requirements.
Tier 2 OTDR testing maps the full length of each fiber and pinpoints splice loss, connector reflectance, and any physical anomalies introduced during the pull. Run the OTDR from both ends of each link and save the trace files with a clear naming convention, such as building-floor-panel-port-direction.
Assemble your closeout documentation
A complete project closeout package protects you and the building owner long after the installation crew leaves the site. Use the template below as your minimum deliverable checklist:
| Document | Details to Include |
|---|---|
| As-built drawings | Final cable routes, conduit paths, panel locations, fiber counts |
| Tier 1 test report | Link ID, loss result, pass/fail, date, technician |
| Tier 2 OTDR traces | Saved trace files, event table, link ID |
| Splice records | Splice number, estimated loss, splicer model |
| Warranty certificates | Cable, connectors, and enclosure manufacturer warranties |
Submit this package to the facility owner or general contractor before the project is officially closed out, and retain a copy in your own records for at least five years.
Next Steps
You now have a complete picture of fiber optic installation requirements: pulling permits, confirming code obligations, selecting rated cable, controlling bend and tension during the pull, and delivering a tested, documented closeout package that satisfies both the facility owner and any regulatory reviewers.
Every step in this guide exists because skipping it creates rework, failed inspections, or a network that underperforms from day one. Projects in healthcare, hospitality, government, and multifamily environments carry layers of complexity on top of the baseline NEC and TIA standards, and certified technicians with real-world project management experience make the difference between a clean first-pass installation and one that drags past deadline with mounting change orders.
