Adding a network switch to your setup is one of the simplest ways to expand your wired network, but doing it wrong can lead to connectivity issues, bottlenecks, or downtime you didn’t plan for. Whether you’re connecting a few devices in a home office or wiring up a small business, knowing how to install a network switch correctly from the start saves you from troubleshooting headaches later. The good news: with the right equipment and a clear process, most installations take under an hour.
At Trindom Global, we design, install, and integrate network infrastructure for hospitals, commercial buildings, and multi-family properties across the country. Our certified technicians handle structured cabling and network buildouts at every scale. That hands-on experience is exactly what we’ve distilled into this guide, practical steps that actually work, not just theory copied from a manual.
Below, you’ll find a complete walkthrough covering everything from choosing the right switch for your needs to physically connecting it, configuring basic settings, and verifying that your devices communicate properly. Let’s get your network expanded the right way.
What you need before you start
Before you learn how to install a network switch, gather everything you need so you’re not stopping mid-install to track down a cable or look up a password. A few minutes of preparation here prevents most of the common problems people run into during setup.
Hardware and cables
You’ll need the switch itself, an Ethernet cable to connect the switch to your router, and individual cables to run from the switch to each device you plan to wire up. Use Cat5e as the minimum standard for speeds up to 1 Gbps, but Cat6 or Cat6a is a better choice if you’re wiring a business environment or expect to handle heavy traffic. Make sure your cables are long enough to reach each device without pulling tight.
A cable that’s too short strains the connectors; one that’s far too long creates clutter that’s genuinely difficult to manage once other devices are in place.
Here’s a quick checklist of physical items to have ready:
- Network switch (unmanaged or managed, depending on your needs)
- Cat5e, Cat6, or Cat6a Ethernet cables for each connection
- Power adapter or PoE source for the switch
- Screwdriver if you’re rack-mounting the switch
Network details to have on hand
Gather your router’s IP address and make sure you have access to your router’s admin panel before you start. For an unmanaged switch, this is mostly just a precaution.
For a managed switch, login credentials and a basic IP addressing plan matter from the beginning. Use this reference to know what to collect:
| Detail | Why you need it |
|---|---|
| Router IP address | Confirms gateway for device routing |
| Admin username and password | Required for managed switch configuration |
| Subnet range | Needed to assign a static IP to the switch |
| VLAN requirements | Determines port segmentation during setup |

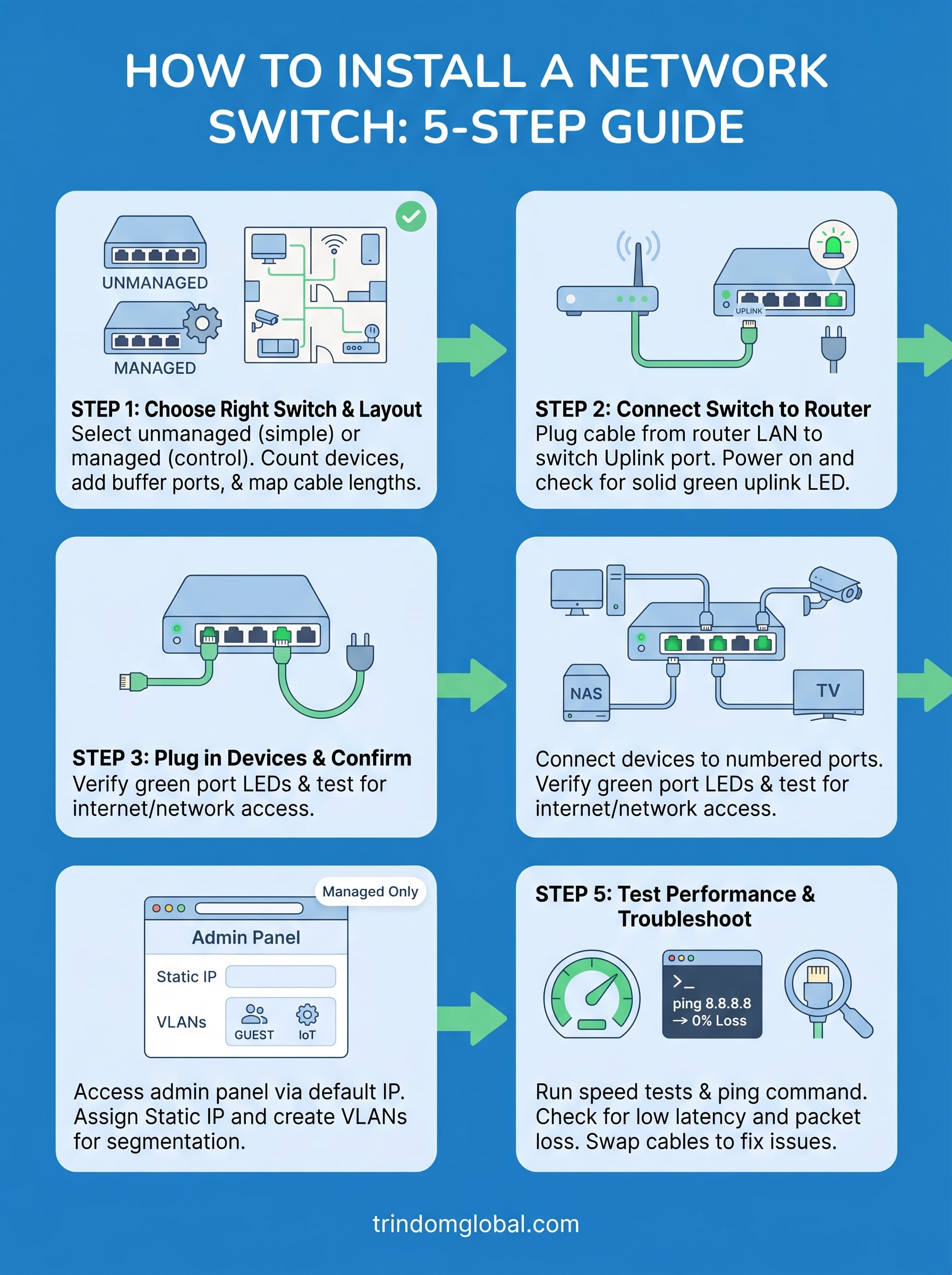

Step 1. Choose the right switch and layout
The first real decision in how to install a network switch is picking the right type for your situation. Unmanaged switches work out of the box with no configuration required, making them the right call for home offices or simple setups where you just need more ports. Managed switches give you control over VLANs, traffic prioritization, and port monitoring, which matters in business environments.
Port count and placement
Count your devices first, then add two to three extra ports as a buffer for future connections. An 8-port switch handles most small setups, while a 16- or 24-port model fits a growing business without requiring an upgrade shortly after installation.
Place the switch as close to your router as possible to keep the uplink cable short and reduce signal loss.
Your layout also affects which cable lengths you need. Map out where each device sits relative to the switch before buying cables, and you’ll avoid guesswork at install time.

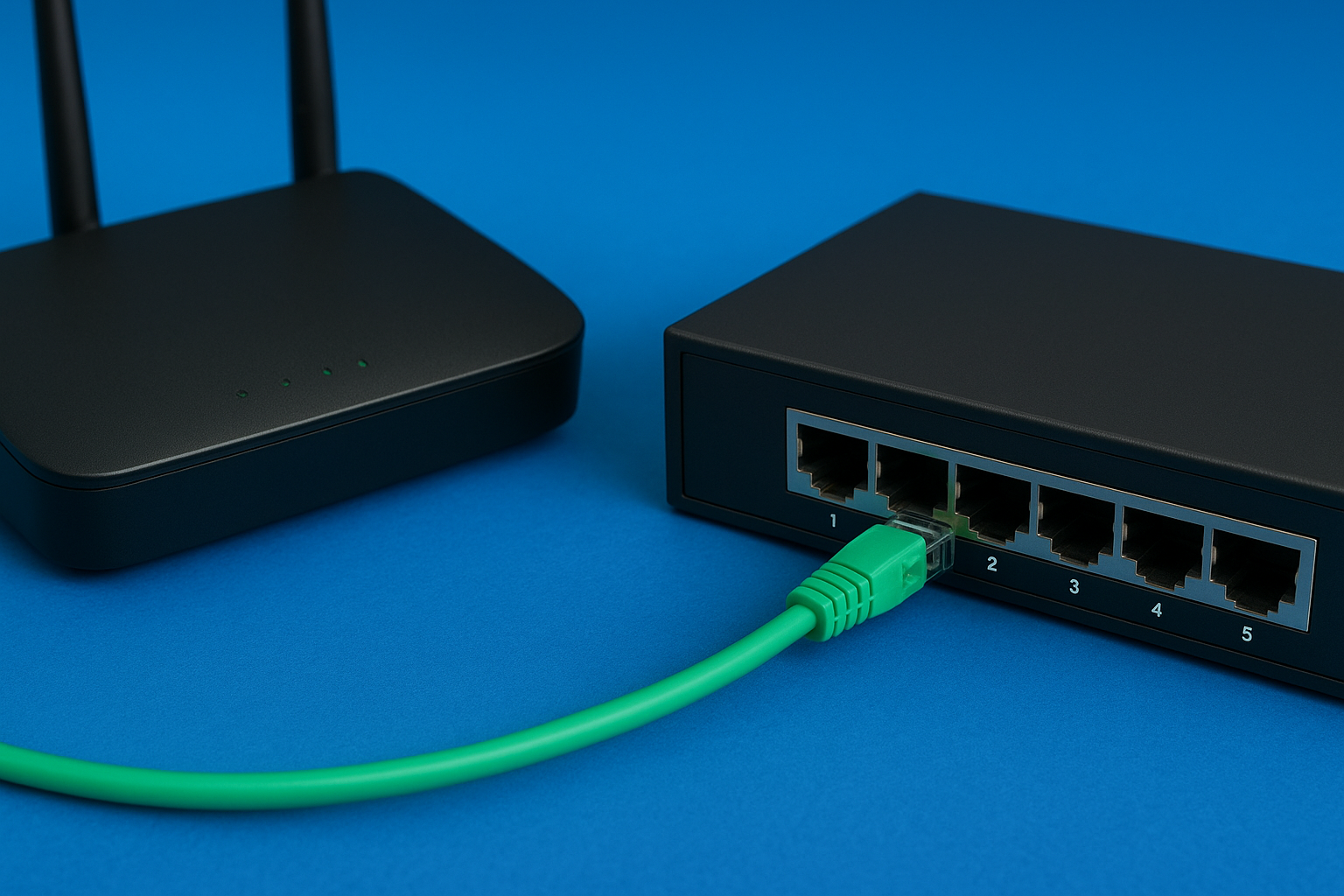

Step 2. Connect the switch to your router
The physical uplink connection is one of the most important steps in how to install a network switch correctly. Take one Ethernet cable and plug one end into any available LAN port on your router, then connect the other end to the uplink port on your switch. Most switches label this port “Uplink” or mark it separately from the numbered ports. If no dedicated uplink port exists, use Port 1.
Power and link confirmation
Once the cable is seated, plug in the switch’s power adapter and allow a few seconds for the device to initialize. Check the LED indicators on the front panel. A solid or blinking green light on the uplink port confirms the switch detected a live connection to your router.
If the uplink light stays dark, swap the cable or try a different LAN port on your router before assuming the switch is faulty.
| LED Status | Meaning |
|---|---|
| Solid green | Active link detected |
| Blinking green | Traffic is passing through |
| No light | No connection or cable fault |
Step 3. Plug in devices and confirm connectivity
With the switch powered and linked to your router, you can now connect your devices. Plug one Ethernet cable into any numbered port on the switch, then connect the other end to the network port on your device, whether that’s a desktop, NAS drive, IP camera, or smart TV. Repeat this for each device you’re wiring up. This step is straightforward, but checking each connection individually as you go is the right way to approach it when learning how to install a network switch without creating problems you have to untangle later.
Verifying each connection
Once devices are plugged in, check the LED indicator for each occupied port on the switch front panel. A green light confirms a live link between the switch and that device. Then open a browser or run a quick ping from your device’s command prompt to confirm it reaches your network.
If a device shows no connectivity, swap the cable before assuming a port failure, since faulty cables cause the majority of connection problems at this stage.
- LED light on the switch port is green
- Device receives an IP address automatically via DHCP
- Device can reach the internet or local network resources
Step 4. Configure managed features when needed
If you’re using a managed switch, this is where how to install a network switch involves a few extra steps. Open a browser, type the switch’s default IP address into the address bar (printed on the label or in the manual), and log in with the default credentials to reach the admin panel.
Assign a Static IP and Configure VLANs
Your first task inside the admin panel is to assign the switch a static IP address within your subnet range. This keeps the switch accessible at a predictable address whenever you need to make changes. Once that’s done, you can configure VLANs to segment your network traffic, for example isolating cameras or guest devices from your primary workstations.
A dedicated VLAN for IoT or guest devices limits the exposure if any of those devices are ever compromised.
| VLAN ID | Suggested Use | Ports |
|---|---|---|
| 1 | Main network | 1-4 |
| 10 | Guest devices | 5-6 |
| 20 | IoT or cameras | 7-8 |
Step 5. Test performance and troubleshoot issues
The final step in how to install a network switch is confirming everything works under real conditions. Open a browser on each connected device and verify it loads pages correctly. Then run a speed test from a wired device to compare against your router’s baseline speed.
If wired speeds fall significantly below your router’s capacity, check whether your switch supports the same Gigabit standard as your other hardware.
Run a ping test and check for packet loss
Open Command Prompt on Windows (or Terminal on Mac) and type ping 8.8.8.8 to send packets to Google’s DNS server. A healthy connection returns responses with 0% packet loss and latency under 10ms on a local network. High packet loss points to a bad cable or a faulty port, so swap the cable first, then try a different port if the problem continues.
| Symptom | Likely Cause | Fix |
|---|---|---|
| No IP address | DHCP not reaching device | Reboot switch and check uplink |
| Packet loss | Faulty cable or port | Swap cable or use a different port |
| Slow speeds | Cable standard mismatch | Replace Cat5 with Cat6 |
Wrap up and next steps
You now have a complete process for how to install a network switch, from selecting the right hardware and running your uplink cable to confirming device connectivity and configuring managed features. Follow the steps in order, check your LED indicators at each stage, and run a ping test at the end to confirm the network performs as expected. Most installations complete cleanly when you gather your materials upfront and verify each connection before moving to the next.
For home offices and simple setups, an unmanaged switch gets you running in under an hour. Business environments with VLANs, IP cameras, or multiple user groups require a managed switch and the additional configuration steps covered in Step 4. If your project involves a larger buildout, structured cabling, or integration with existing infrastructure, that’s where professional support pays off. Contact the Trindom Global team to discuss your network installation needs with certified technicians who handle projects at every scale.
