A disorganized rack isn’t just an eyesore, it’s a liability. Tangled patch cords slow down troubleshooting, block airflow, and turn simple port changes into hour-long headaches. Good network rack cable management tips can mean the difference between a rack that runs reliably for years and one that becomes a nightmare the moment something fails.
At Trindom Global, we’ve built and dressed thousands of racks across hospitals, government facilities, and commercial properties through our structured cabling and headend buildout services. The patterns behind messy racks are predictable, and so are the fixes. Poor planning, skipped labeling, and cheap accessories account for most of the chaos we see during site assessments.
This article breaks down five practical tips we apply on every install, from layout planning to cable routing, so you can keep your racks clean, accessible, and ready for whatever comes next.
1. Plan the rack build before you install anything
Every clean rack starts with a drawing, not a cable. Before you pull a single patch cord, you need to know what goes where, how power and data will flow, and how much space each device requires. Skipping this step is the single most common reason racks end up looking like a bowl of spaghetti six months after installation.
What to do
Start by mapping your rack layout on paper or in a diagramming tool before any equipment arrives. Assign rack units (RUs) to each piece of gear and group similar devices together, such as patch panels near the top, active switching gear in the middle, and power distribution units (PDUs) at the bottom or sides. Plan your cable paths at this stage so you know exactly where horizontal and vertical managers need to go before a single screw is turned.
A complete rack diagram eliminates most cabling problems before the first cable ever touches the rack.
Tools and materials to use
Use a rack unit calculator or a simple spreadsheet to track space allocation across the full build. Diagramming software like Microsoft Visio lets you build accurate rack elevation drawings you can share with your team. You will also want a tape measure, printed blank rack elevation templates, and a confirmed list of every device with its RU height and port count before install day.
Mistakes to avoid
The two most costly mistakes at this stage are ordering cables before the layout is finalized and leaving zero open RUs for future equipment. Both decisions force rework. Also avoid placing heat-generating equipment directly above temperature-sensitive devices without reviewing airflow requirements for each unit first.
Done-right checklist
Before you move a single piece of equipment into the rack, confirm each item below:
- Rack diagram is complete with every device assigned a specific RU position
- Cable pathways are marked for both horizontal and vertical runs
- All equipment dimensions and port counts are verified against the diagram
- Future growth slots are reserved in the layout
- Power draw per device is documented and matched to PDU capacity

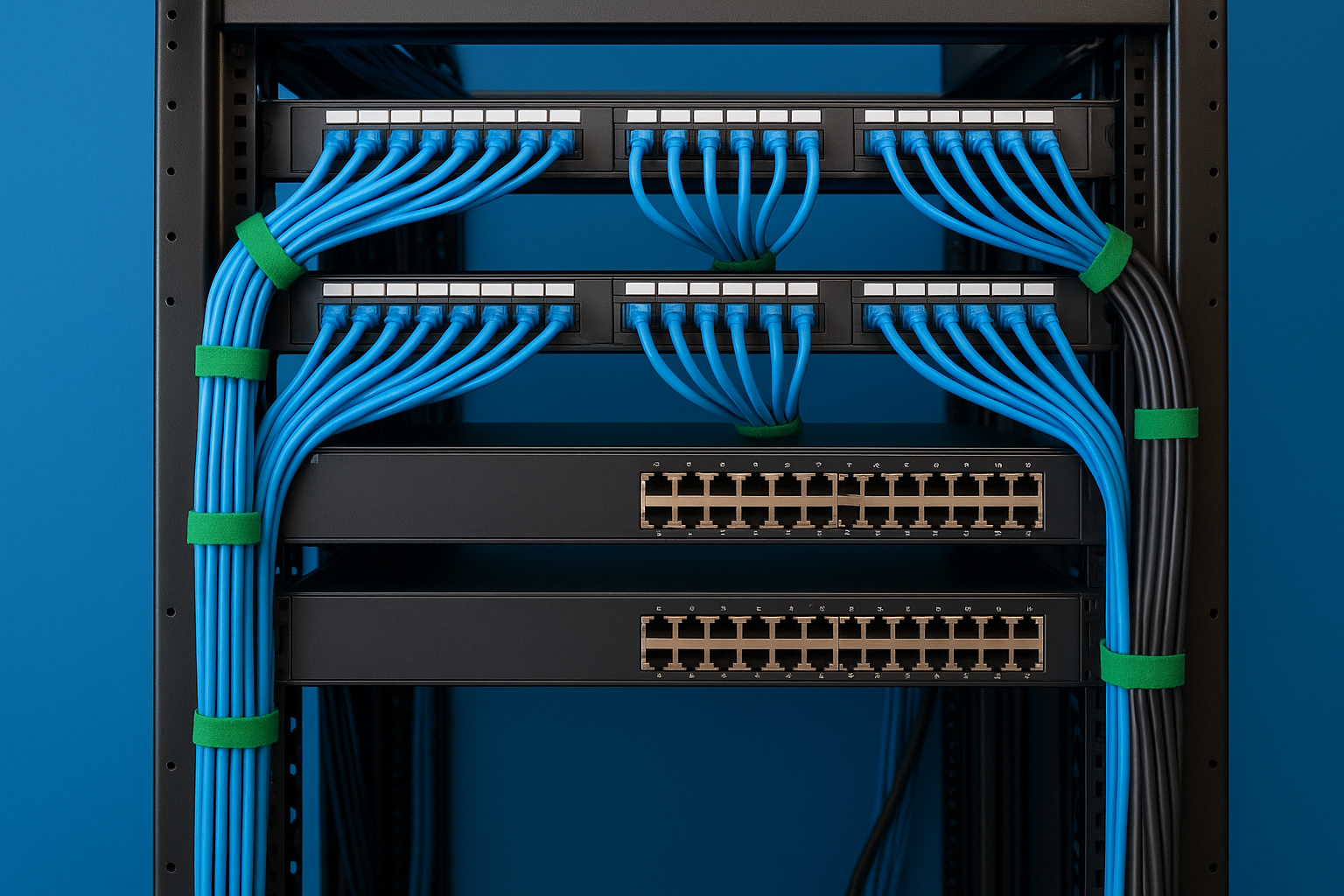

2. Route cables with clear horizontal and vertical paths
One of the most consistent network rack cable management tips professionals follow is treating cable paths like traffic lanes: defined, separated, and never crossing without reason. Horizontal cable managers handle the short runs between patch panels and switches, while vertical managers carry cables up and down the sides of your rack without cutting across active equipment.
What to do
Run data cables along dedicated horizontal managers at every patch panel row, and use vertical managers on both sides of the rack to guide longer runs cleanly from top to bottom. Keep power cables completely separate from data cables, routing them down opposite sides of the rack to reduce interference and simplify future work.
Separating power and data paths from the first run prevents interference problems that are frustrating to diagnose after the fact.
Tools and materials to use
Use 1U or 2U horizontal cable managers between your patch panels and switches, and mount vertical cable managers on both rack rails before any equipment goes in. Velcro straps secure your bundles cleanly without the damage risk that overtightened zip ties create.
Mistakes to avoid
Avoid routing cables across the front face of active equipment where they block airflow vents and cover port labels. Crossing power and data cables at any point introduces interference risk and creates confusion the next time someone needs to trace a connection.
Done-right checklist
- Horizontal managers installed at every patch panel row
- Vertical managers mounted on both sides before cabling begins
- Power and data runs kept on opposite sides of the rack
3. Label, color-code, and document every connection
An unlabeled rack creates problems you won’t notice until something fails at the worst possible moment. Color-coding by function and labeling both ends of every cable turns a reactive troubleshooting process into a quick visual scan that any technician can follow without needing to trace runs by hand.
What to do
Assign a specific color to each cable type or network segment before installation begins. Use consistent naming conventions on both ends of every patch cord so identifiers match your rack diagram exactly.
- Blue for data, red for management, yellow for voice
- Label format: [rack ID]-[panel row]-[port number]
Tools and materials to use
A label printer produces durable, machine-printed tags that hold up in warm rack environments far better than handwriting ever will. Stock color-coded patch cables and pre-printed port labels for your patch panels to round out the system.
Consistent labeling at both cable ends is the single fastest way to cut troubleshooting time during an outage.
Mistakes to avoid
Handwritten labels fade quickly in warm environments, so use a printer for every tag you apply in the rack.
Avoid assigning colors differently across racks in the same facility, which forces technicians to relearn your labeling scheme on every cabinet they touch.
Done-right checklist
Run through these items before moving on to the next section of your install:
- Both ends of every cable carry matching identifiers
- Color assignments are documented in the rack diagram
- Label printer output used throughout, no handwriting

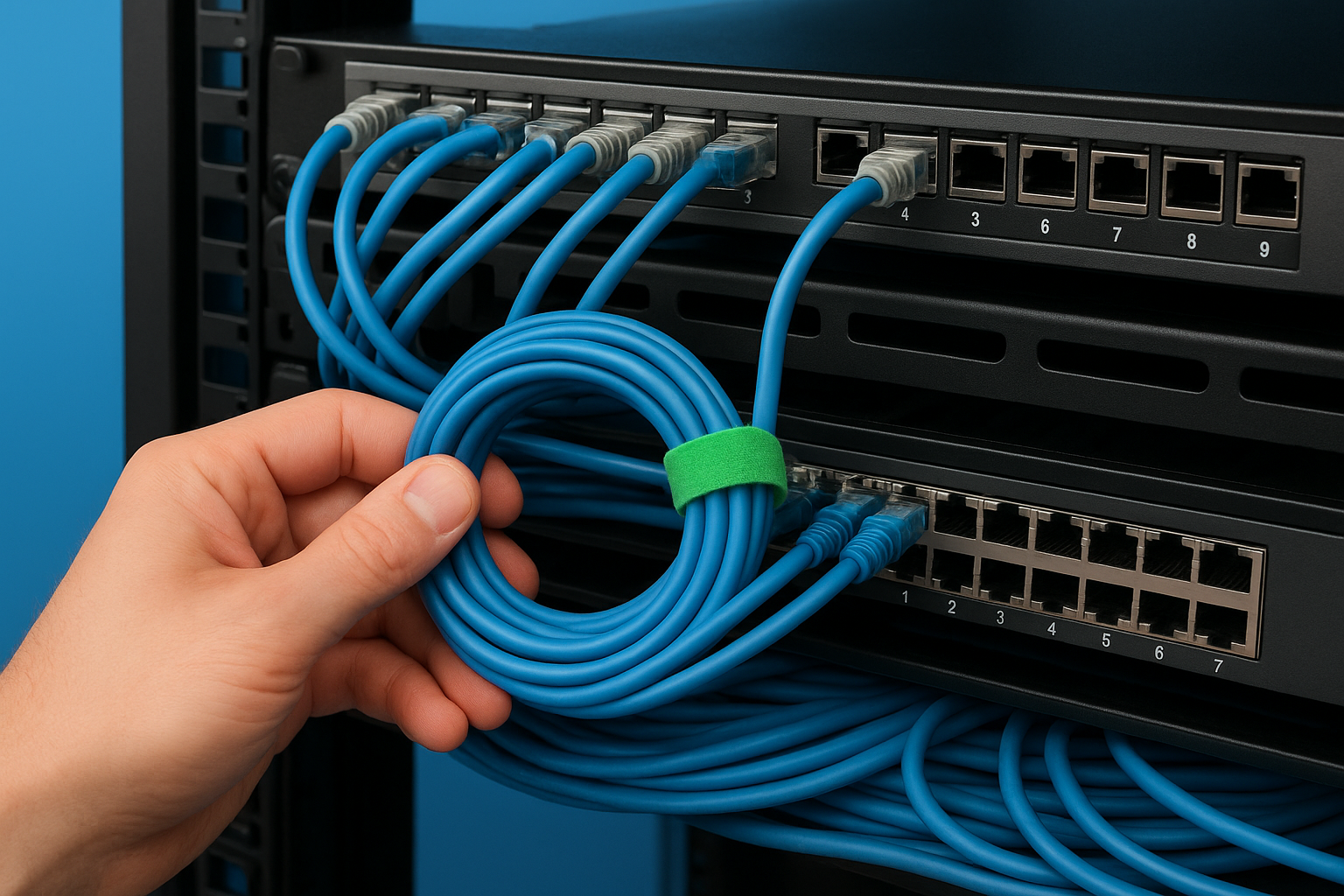

4. Use the right cable lengths and manage slack cleanly
Excess cable slack is one of the most overlooked problems in network rack cable management tips discussions. A patch cord that is six inches too long bunches up in front of active ports, restricts airflow, and makes it harder to trace connections quickly. Using cables purchased to the right length keeps your rack flat, clean, and easy to work in.
What to do
Measure each cable run on your rack diagram before ordering any patch cords. Order cables in standard incremental lengths (1 ft, 2 ft, 3 ft) to match specific runs rather than defaulting to a single long length across the board. Any unavoidable slack should be looped neatly and secured inside the vertical manager, never draped across equipment.
Matching cable length to the actual run distance is one of the fastest ways to improve rack appearance and accessibility at the same time.
Tools and materials to use
Stock a range of pre-made patch cables in multiple lengths and keep a small supply of Velcro cable ties on hand to secure any loops cleanly without crushing cable jackets.
Mistakes to avoid
Avoid using oversized cables as a shortcut when the correct length is unavailable. Bundling excess slack with zip ties pulled too tight damages cable jackets and degrades signal performance over time.
Done-right checklist
- Cable lengths are measured and matched to each specific run
- Slack loops are secured inside vertical managers, not draped over equipment
- Velcro ties secure all loops without pinching
5. Protect performance, airflow, and safety as you bundle
How you secure cables affects rack performance and technician safety directly. Tight bundles block airflow over active equipment, while loose bundles create tripping hazards and put stress on ports. Applying the right network rack cable management tips at the bundling stage protects your infrastructure long after the install wraps up.
What to do
Keep your bundles finger-loose so you can slide a finger under any strap without resistance. Separate data and power cables into distinct bundles on opposite sides of the rack, and never mix cable categories in the same bundle where signal integrity is a concern.
Bundles that are too tight restrict airflow and degrade performance over time, so check strap tension before you finalize any run.
Tools and materials to use
Use Velcro hook-and-loop straps instead of zip ties on any bundle that may need future adjustment. A cable comb keeps multi-cable runs parallel and prevents twisting along horizontal sections.
Mistakes to avoid
Avoid routing heavy power cables across the top of data bundles, where sustained weight stresses cable jackets over time. Never use zip ties in high-heat zones near PDUs, since plastic ties loosen and fail under prolonged heat exposure.
Done-right checklist
Confirm each item before signing off on the install:
- Bundles are finger-loose throughout the rack
- Data and power cables run in separate, dedicated bundles
- Velcro straps replace zip ties across all adjustable sections
Next steps

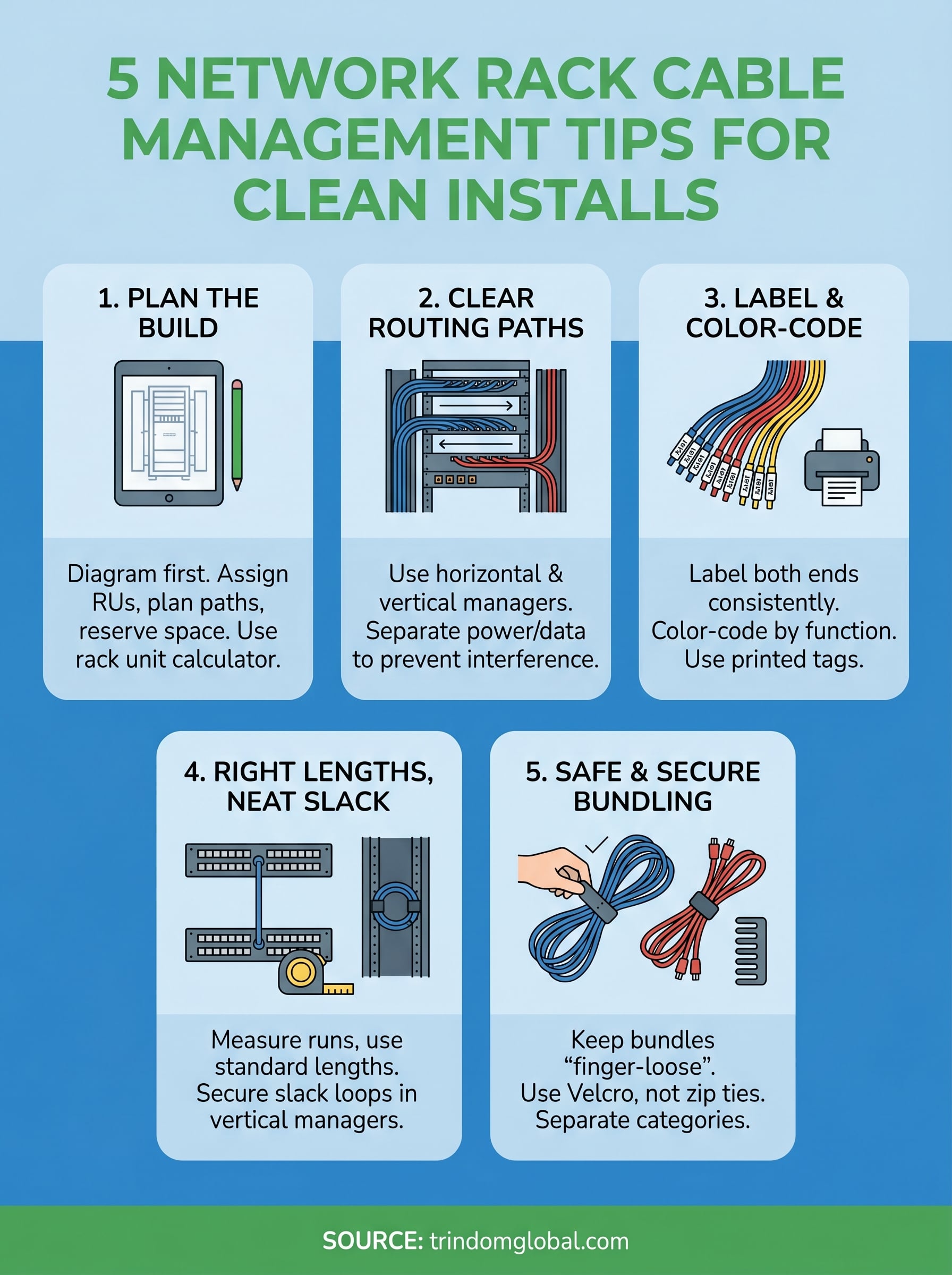

These five network rack cable management tips give you a clear framework for every build, from initial planning through final bundling. When you apply each one consistently, your racks stay cleaner, run cooler, and take far less time to troubleshoot when something goes wrong. Every step in this list works together, so skipping one tends to undo the benefit of the others.
