A poorly installed network rack leads to tangled cables, overheating equipment, and hours of troubleshooting that nobody has time for. Whether you’re building out a server closet in a hospital, outfitting a hospitality property, or upgrading a government facility, getting the rack right from the start saves you real headaches down the line. This network rack installation guide walks you through the full process, from choosing your rack type to mounting, organizing, and managing cables like a professional.
At Trindom Global, we’ve installed and integrated IT infrastructure across healthcare systems, commercial properties, and government facilities for years. Our teams handle everything from structured cabling and headend buildouts to full design-build projects, so we know exactly what separates a clean, functional rack setup from one that causes problems six months later. We built this guide to share that hands-on experience with IT teams, facilities managers, and contractors who want to get the job done right.

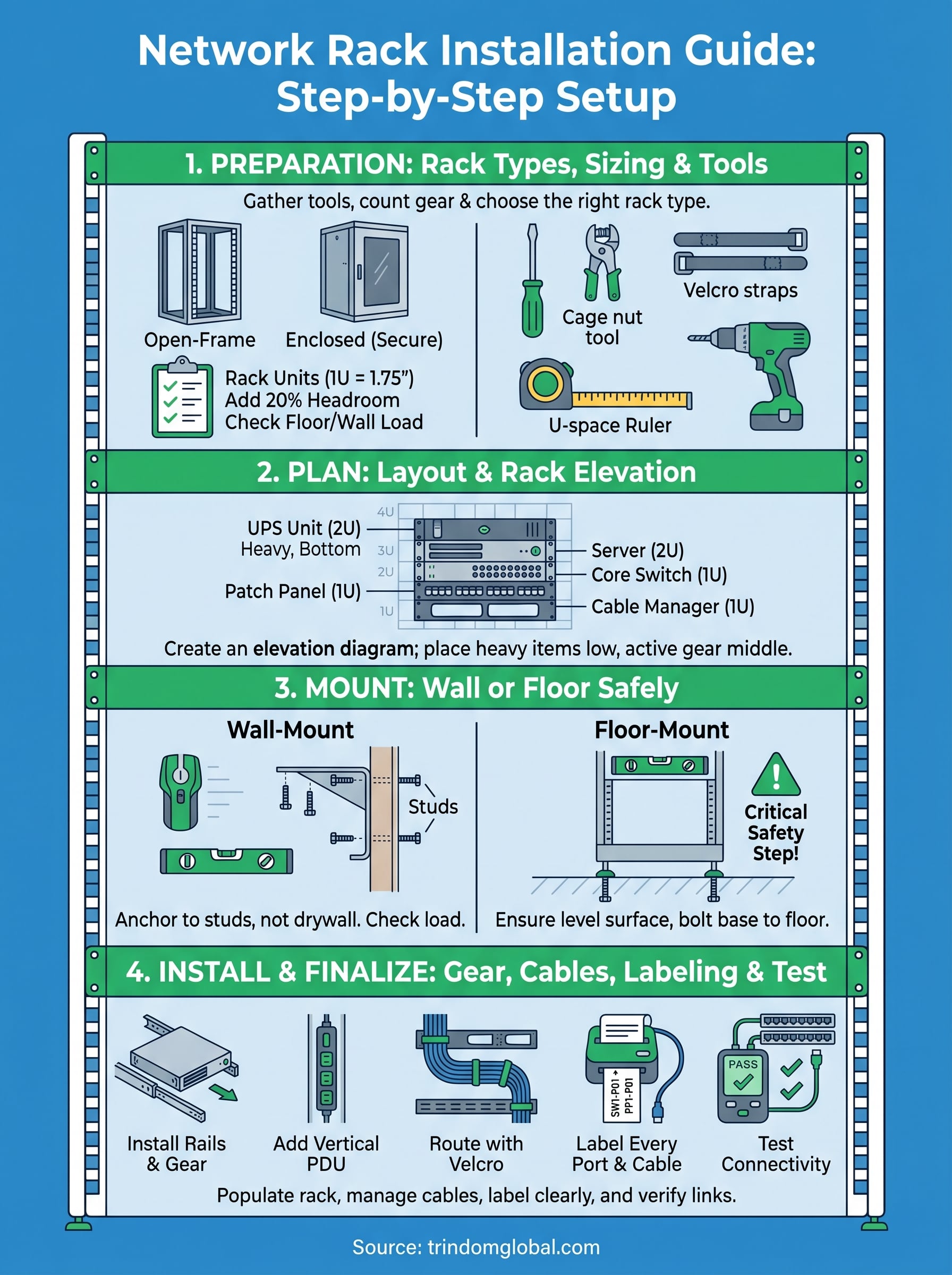

Below, you’ll find step-by-step instructions covering wall-mount and floor-mount options, equipment rail installation, power distribution, airflow management, and cable routing. Each section reflects the practices our certified technicians use on job sites every day, practical steps you can apply to your own environment immediately.
Before you start: rack types, sizing, and tools
Before you touch a single piece of equipment, you need to understand what kind of rack fits your environment and what gear you need on hand. Skipping this step leads to mismatched mounting hardware, undersized enclosures, and wasted time reordering parts mid-project. This network rack installation guide treats preparation as a core part of the job, not an afterthought, because the decisions you make here drive every step that follows.
Rack types and form factors
The two main rack types you’ll encounter are open-frame racks and enclosed cabinets. Open-frame racks work well in high-airflow environments and make maintenance easier since you can reach equipment from all sides. Enclosed cabinets offer physical security, dust protection, and cleaner aesthetics, which makes them the standard choice for healthcare and government facilities where equipment access needs to be controlled.
Choosing the wrong rack type for your environment can create airflow and security problems that are far harder to fix after installation than before.
Wall-mount racks are a practical choice when floor space is limited, such as in a small IDF closet or a single-room network setup. Floor-standing racks handle larger deployments with more equipment weight and better cable routing options. Racks are measured in rack units (U), where 1U equals 1.75 inches of vertical space. Common sizes range from 12U wall-mount units to 42U or 48U floor-standing cabinets.
| Rack Type | Typical Use Case | Common Sizes |
|---|---|---|
| Open-frame | Data centers, wiring closets | 12U to 48U |
| Enclosed cabinet | Healthcare, government, hospitality | 24U to 48U |
| Wall-mount | Small offices, IDF closets | 6U to 24U |
Sizing your rack correctly
Count every device going into the rack before you order anything. Add up the rack units for all switches, patch panels, servers, UPS units, and cable managers. Then add at least 20% headroom for future equipment. A rack that fills up at installation has no room to grow, and you’ll end up ordering a second unit sooner than planned.
Confirm your floor or wall load capacity before selecting a rack size. A fully loaded 42U cabinet can exceed 1,500 pounds. Check your floor load rating and locate wall studs well in advance so you’re not discovering structural problems on installation day.
Tools and materials to gather
Having the right tools on the job site before you start prevents costly delays. Here is a standard toolkit for a rack installation:
- Screwdriver set (Phillips and flathead, including a #2 Phillips)
- Cage nut installation tool to insert and remove cage nuts safely
- Cable ties and velcro straps for organized cable management
- Label maker for port and cable identification
- Torque screwdriver to fasten mounting screws to spec
- U-space ruler to count rack units accurately
- Level to confirm proper alignment on wall and floor mounts
- Power drill with drill bits sized for your mounting hardware
Step 1. Plan the layout and rack elevation
Planning your rack layout on paper before installation saves time and prevents equipment placement mistakes that are frustrating to fix later. A rack elevation diagram maps every device to a specific U position in the rack, giving you a clear picture of how the finished installation should look. This step also forces you to think through airflow, weight distribution, and cable routing before a single screw goes in.

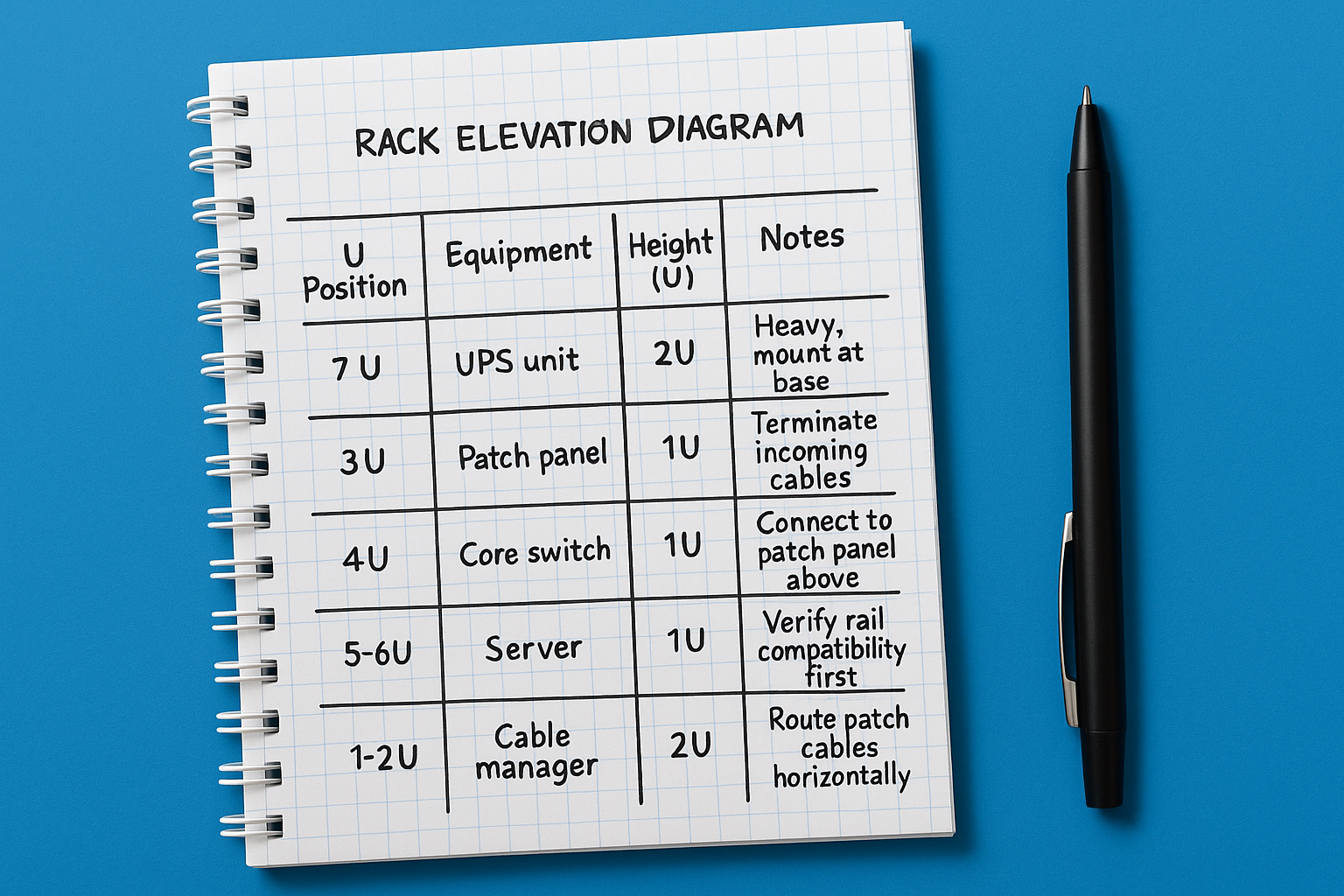

Create a rack elevation diagram
A rack elevation diagram is a visual grid that represents each U space in your rack. You can sketch this by hand or use a simple spreadsheet. List each piece of equipment, its rack unit height, and its intended position. Number your U spaces from bottom to top (1U at the bottom) to match standard industry practice, which is how most vendors document their equipment.
Documenting your layout before installation also gives you a reference point if equipment ever needs to be replaced or the rack is reconfigured by someone else later.
Here is a basic elevation planning template you can fill in:
| U Position | Equipment | Height (U) | Notes |
|---|---|---|---|
| 1-2U | UPS unit | 2U | Heavy, mount at base |
| 3U | Patch panel | 1U | Terminate incoming cables |
| 4U | Core switch | 1U | Connect to patch panel above |
| 5-6U | Server | 2U | Verify rail compatibility first |
| 7U | Cable manager | 1U | Route patch cables horizontally |
Assign rack units by priority
Place heavy equipment like UPS units and servers at the bottom of the rack to keep the center of gravity low, which matters especially for floor-standing racks. Mount active equipment such as switches and routers in the middle, with patch panels just above or below them to keep patch cable runs short. This arrangement keeps your rack stable and your cable paths logical throughout the full network rack installation guide process.
Step 2. Mount the rack safely on wall or floor
Once your layout is finalized, you’re ready to physically secure the rack. Proper mounting is the most critical safety step in this entire network rack installation guide because a rack that tips or pulls away from a wall can damage equipment, injure people, and push your project back significantly. Whether you’re anchoring to a wall or setting a floor-standing cabinet, the goal is the same: a stable, level mount that holds its rated load without shifting.

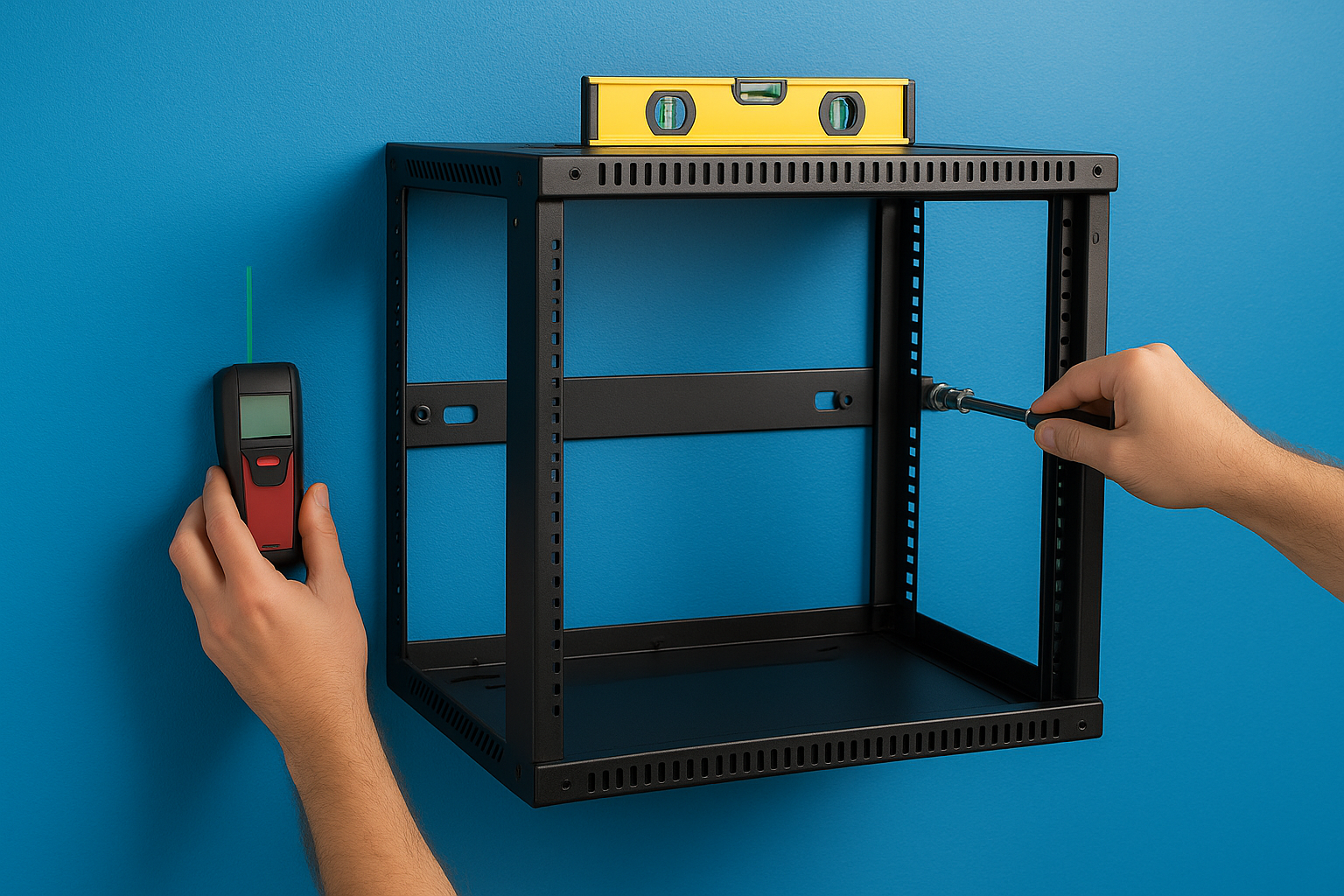

Wall-mount installation
Wall mounting works well for smaller racks in IDF closets, server rooms with limited floor space, or single-room deployments. Start by locating wall studs using a stud finder, since drywall alone cannot support even a lightly loaded rack. Mark two studs at the correct height, then use a level to confirm your mount points are even before drilling. Use lag bolts rated for the rack’s maximum load capacity and thread them directly into the studs.
Never mount a wall rack on drywall anchors alone, even for lightweight enclosures. Stud anchoring is the only reliable method.
Most wall-mount racks include a pre-drilled mounting bracket that attaches to the rear of the enclosure. Hold the bracket against the wall at your marked positions, confirm it’s level, and drill pilot holes before driving your lag bolts. Tighten all bolts to the manufacturer’s specified torque value to prevent loosening over time.
Floor-mount installation
Floor-standing racks need a flat, level surface and proper anchoring to prevent tipping. Position the rack in its final location first, then place a level across the top frame to check alignment in both directions. Adjust the leveling feet until the rack sits perfectly plumb. Bolt the rack’s base anchoring points to the floor using hardware rated for the combined weight of the enclosure and all planned equipment. Confirm all four corners make solid contact with the floor before loading any gear into the cabinet.
Step 3. Install rails, shelves, PDUs, and gear
With your rack secured and your elevation plan in hand, you’re ready to populate the enclosure. This step covers the physical hardware that holds and powers your equipment, so working through it in the right order prevents you from having to remove gear to reach something you installed too early.
Install equipment rails
Rails allow rackmount servers and heavier devices to slide in and out for maintenance without fully removing them. Most modern rails ship as two-piece assemblies: an outer rail that mounts to the rack posts and an inner rail that attaches directly to the equipment chassis. Before mounting anything, verify that the rail length matches your rack depth and that the hardware fits your post type, whether threaded, square-hole, or round-hole. Mismatched rails are one of the most common sources of rework on a job site, so check compatibility against the manufacturer’s specification sheet before you start.
Always test-slide a rail the full length of travel before loading equipment onto it. A rail that binds under weight is far harder to adjust once a server is seated.
Add shelves and power distribution units
Shelves support non-rackmount equipment such as wireless access point controllers, small appliances, or patch panels that lack standard rack ears. Mount shelves at the U positions you designated in your elevation diagram, then confirm each shelf’s weight rating against the equipment it will hold. Install your power distribution unit (PDU) vertically along the inside of the rack post before loading heavier gear, since a vertical PDU keeps outlets accessible and leaves more usable U space for active equipment.
Seat your active equipment
Starting from the bottom of the rack, install equipment according to your elevation diagram. Slide rail-mounted servers in first, secure them with the appropriate screws or latch mechanisms, then move upward to switches and routers. Leave the cable management arms and patch cables for the next step so you maintain clear access to each device while seating gear throughout this network rack installation guide process.
Step 4. Manage cables, label ports, and test
Cable management and testing are the final steps that separate a professional rack build from one that creates problems during maintenance. This stage of the network rack installation guide covers routing patch cables cleanly, labeling every connection so future technicians can work efficiently, and running connectivity checks before you declare the installation complete.
Route and secure cables
Run patch cables along dedicated horizontal cable managers between your patch panel and your switches, keeping slack neatly bundled at the sides of the rack. Use velcro straps instead of zip ties for any cable bundle you might need to adjust later, since velcro allows quick changes without cutting and re-dressing an entire run. Keep power cables on the opposite side of the rack from data cables to reduce electromagnetic interference.
Mixing power and data cables in the same bundle is one of the most common causes of signal degradation in structured cabling environments.
Label every port and cable
Label both ends of every cable before you close the rack. A clear labeling convention removes guesswork during troubleshooting and speeds up any future changes significantly. Here is a simple template you can apply directly to your installation:
| Label Field | Example Value |
|---|---|
| Source port | SW1-P01 (Switch 1, Port 1) |
| Destination port | PP1-P01 (Patch Panel 1, Port 1) |
| Cable ID | CAB-001 |
| Date installed | 2026-06-23 |
Test connectivity before closing up
Use a cable tester on every patch cable after installation to confirm continuity and verify there are no wiring faults or crossed pairs. Power up each active device individually and confirm it receives a link signal from the connected switch port. Document your test results alongside your rack elevation diagram so you have a baseline record to compare against if anything changes later.
Next steps
This network rack installation guide covers the full process from rack selection to post-installation testing. You now have a repeatable workflow for planning your layout, mounting safely, populating equipment in the right order, and keeping cables organized and labeled from day one. Following these steps consistently produces a rack that performs well and stays manageable as your infrastructure grows.
Your installation quality directly affects how your network performs over time. Proper cable management, accurate labeling, and documented test results give your team a solid foundation to troubleshoot quickly and expand confidently without starting over. Keep your rack elevation diagram and test records updated every time you make a change.
