A passive optical network explained in plain terms comes down to this: it’s a fiber-optic architecture that uses unpowered splitters, instead of active electronic equipment, to deliver high-speed connectivity from a single fiber source to multiple endpoints. That simplicity is exactly what makes PON one of the most scalable and cost-effective approaches to modern broadband delivery.
PON technology matters whether you’re running fiber to a hospital campus, a hotel property, or a multi-family residential community that needs reliable high-speed internet across hundreds of units. At Trindom Global, we design, build, and integrate fiber and network infrastructure across these exact environments, so we see firsthand how choosing the right optical network architecture shapes long-term performance, maintenance costs, and scalability.
This article breaks down how PON works from the optical line terminal to the end user, covers the role of passive splitters in the signal path, and walks through the advantages that make this architecture a go-to for service providers and property operators alike. Whether you’re evaluating PON for a new build or comparing it against active Ethernet alternatives, you’ll leave with a clear understanding of the technology and where it fits.
Why PON matters in modern networks
Network operators and property managers face constant pressure to deliver more bandwidth to more endpoints without a matching increase in capital expenditure. Traditional active Ethernet architectures require powered switches and equipment at every distribution point, which means more hardware to buy, more power to supply, and more components that can fail. PON removes that equipment from the signal path entirely, which changes the cost math significantly when you’re deploying fiber across a large campus, a hospital, or a residential property with hundreds of units.
When you eliminate powered equipment from the distribution layer, you cut both installation costs and long-term maintenance overhead in one decision.
Growing bandwidth requirements across every sector
Every major category of end user, from healthcare systems running medical imaging and real-time patient monitoring to hospitality properties streaming high-definition video to guest rooms, is consuming more bandwidth than it did five years ago. You can’t future-proof a network by layering upgrades on top of older active infrastructure indefinitely. PON’s fiber-based architecture supports the jump from GPON, which delivers up to 2.5 Gbps downstream, to XGS-PON at 10 Gbps symmetrical and beyond, without replacing the physical fiber plant you already installed. That means the investment you make today in passive fiber carries forward as standards evolve.
At the property or campus level, this matters in practical terms. A multi-family residential community adding 200 new units doesn’t need to redesign its entire network backbone if it built on PON from the start. You add capacity by upgrading the optical line terminal and the customer-premises equipment, not by ripping out and replacing distribution hardware throughout the building.
Why passive infrastructure reduces operational risk
Part of what makes a passive optical network explained correctly stand out is what it removes from your infrastructure. Active equipment in the field is a liability for any network operator. Every powered component in a distribution cabinet is a potential failure point, requires cooling, draws electricity, and needs physical access for maintenance. PON’s unpowered optical splitters have no moving parts, no power requirements, and a service life measured in decades rather than years. For operators managing infrastructure across multiple buildings or floors, that reduction in active touchpoints translates directly to fewer service calls, lower energy costs, and a simpler maintenance schedule.
For healthcare environments specifically, fewer active components in the network path also means fewer sources of electromagnetic interference, which is a real concern in areas with sensitive diagnostic imaging equipment.
How a passive optical network works

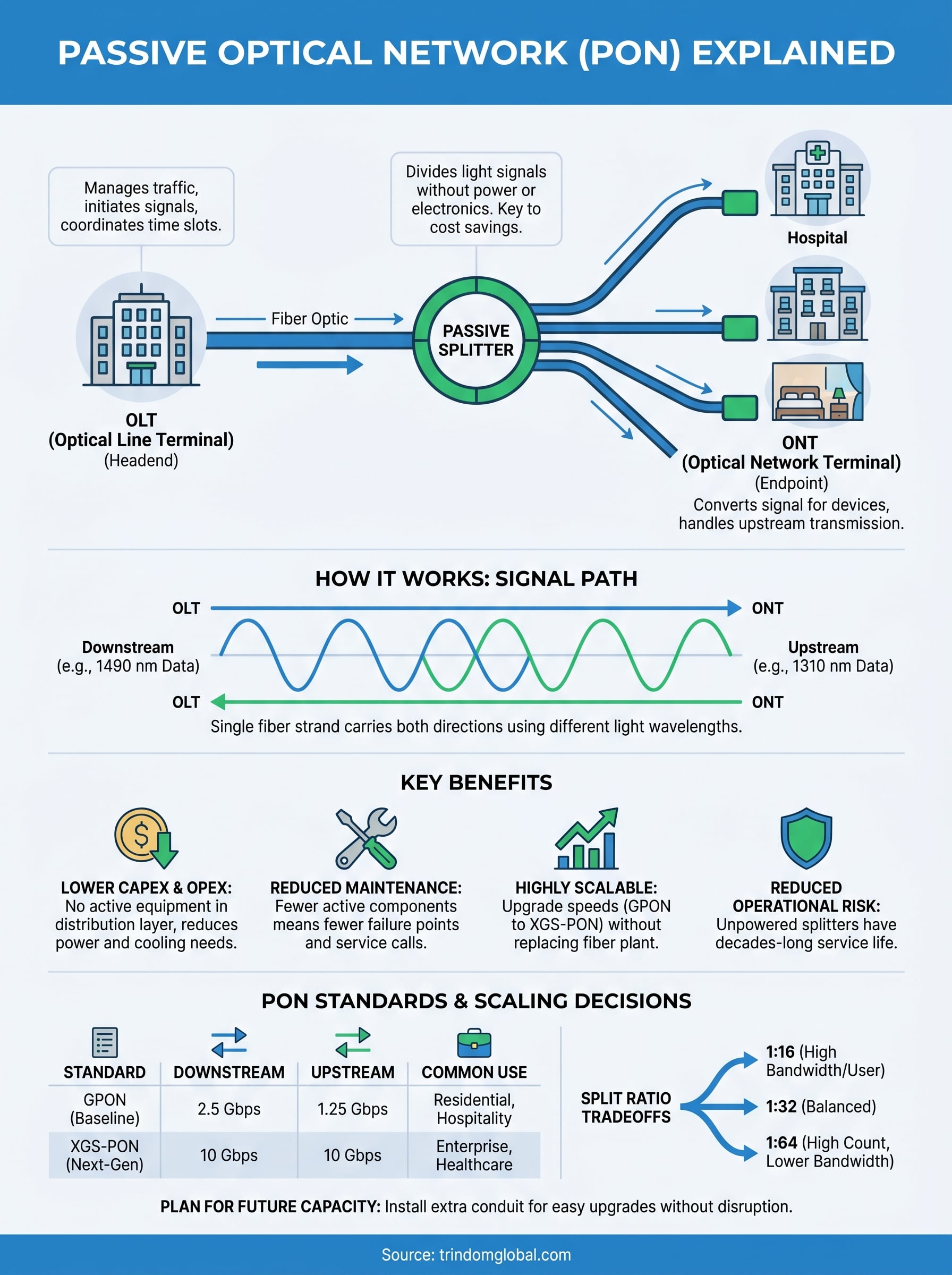

The core idea behind a passive optical network is that fiber carries light signals from a central point to multiple endpoints without any powered equipment in between. A single fiber strand leaves the optical line terminal (OLT) at the provider or building’s headend, travels to a passive optical splitter, and then fans out to individual optical network terminals (ONTs) at each subscriber location. That single fiber path can serve anywhere from 16 to 128 endpoints depending on the split ratio you configure, making it a highly efficient use of physical fiber.
The light signal itself does all the work across the distribution network, which means no power supplies, no cooling, and no active hardware to maintain between the headend and the end user.
How signals travel in both directions
PON handles upstream and downstream traffic on the same fiber strand by using two separate wavelengths of light. Downstream traffic from the OLT travels at one wavelength, typically 1490 nm for data, while upstream traffic from each ONT travels back at a different wavelength. The passive splitter divides and recombines these signals without any electronic processing, keeping the distribution layer completely free of active components.
How the OLT manages multiple users
Each ONT on the network shares the same downstream fiber path, so the OLT uses time-division multiplexing to assign each endpoint a specific time slot for upstream transmission. This prevents signal collisions and keeps traffic organized without requiring active switching hardware anywhere in the distribution layer. When you understand the passive optical network explained through this lens, the design logic becomes straightforward: one set of headend equipment manages all connected endpoints through coordinated timing, with nothing but glass and light connecting them.
PON architecture and key components
Three core components define every passive optical network deployment: the optical line terminal, the passive splitters, and the optical network terminals. Understanding what each one does, and where it sits in the signal path, gives you the foundation to evaluate any PON design decision you’ll encounter.
The optical line terminal
The optical line terminal (OLT) is the headend equipment that initiates and manages all traffic on the network. You install it at your central facility, data center, or building’s main equipment room, and it connects to the upstream internet or service provider link on one side while driving the fiber plant on the other. All downstream bandwidth and upstream time slots are coordinated from the OLT, making it the most critical active component in the entire architecture.
Your OLT selection determines which PON standard you’re running and what maximum speeds each endpoint can receive, so this decision drives everything downstream.
Passive splitters and the distribution layer
Optical splitters are the component that makes a passive optical network explained correctly so distinct from active alternatives. A splitter takes a single fiber input and divides the light signal across multiple output fibers, with no power source, no electronics, and no configuration required. Common split ratios include:
- 1:16 for smaller deployments where higher per-user bandwidth is the priority
- 1:32 for typical multi-family and campus installations
- 1:64 for large-scale deployments where raw endpoint count outweighs per-user throughput
The optical network terminal
The optical network terminal (ONT) sits at each subscriber location, whether that’s a hospital room, a hotel guest room, or a residential unit. It converts the incoming optical signal back into an electrical signal that devices can use, and handles upstream transmission back to the OLT on its assigned time slot.
PON types and standards you will see
When you evaluate a passive optical network deployment, you will encounter multiple standards with different speed tiers and design tradeoffs. The physical fiber plant stays compatible across most standard upgrades, so the fiber you install today carries your network forward even as you move to faster headend equipment over time.
GPON: the baseline standard
Gigabit Passive Optical Network (GPON) is the most widely deployed PON standard globally, and it’s the baseline most installers and operators reference first. It delivers 2.5 Gbps downstream and 1.25 Gbps upstream across split ratios up to 1:128, which covers the majority of multi-family residential and hospitality deployments running today.
| Standard | Downstream | Upstream | Common Use Case |
|---|---|---|---|
| GPON | 2.5 Gbps | 1.25 Gbps | Residential, hospitality |
| XGS-PON | 10 Gbps | 10 Gbps | Enterprise, healthcare campus |
| 25G-PON | 25 Gbps | 25 Gbps | High-density carrier networks |
XGS-PON and next-generation standards
XGS-PON raises the baseline to 10 Gbps symmetrical, meaning equal speeds in both directions, which makes it the right fit for environments with heavy upstream traffic like cloud-connected healthcare systems or large enterprise campuses.
Your OLT standard selection sets the bandwidth ceiling for every endpoint on the network, so you should plan for where your traffic will be in five years, not where it is today.
Beyond XGS-PON, 25G-PON and 50G-PON are entering active deployment in carrier and data center environments. When you work through a passive optical network explained with a long-term lens, matching your standard to projected bandwidth growth is what protects your infrastructure investment without forcing a full headend replacement ahead of schedule.
Design and scaling decisions for real deployments
When you move from understanding how a passive optical network explained covers theory to actually deploying one, the decisions that matter most are split ratio, fiber routing, and headend placement. Choosing the wrong split ratio early locks you into a bandwidth ceiling per endpoint that becomes painful to fix after installation. Split ratio and headend location together determine your cost structure and your ability to expand the network without major rework.
Choosing your split ratio
Your split ratio controls the tradeoff between endpoint count and per-user bandwidth. A 1:32 split is the practical default for most multi-family and hospitality deployments because it balances unit count with enough per-user throughput for current and near-term bandwidth demands. If you’re designing for a healthcare campus with bandwidth-intensive applications like medical imaging systems, a 1:16 split gives each endpoint significantly more headroom.
A common mistake is choosing a 1:64 split to reduce upfront fiber costs without accounting for what that constraint costs you when individual endpoints need higher bandwidth tiers later.
Locking in a 1:64 split to save on day-one costs will create expensive upgrade pressure within a few years on any campus where bandwidth demand is growing.
Planning for future capacity
Fiber infrastructure lasts decades, but the active equipment on both ends of it turns over on a much shorter cycle. When you design your distribution layer, pull extra fiber conduit in every run so you can add splitters or upgrade OLTs without opening walls or trenching again. This approach keeps your capital expenditure predictable and avoids costly disruption from reactive infrastructure work.
- Use loose-tube conduit wherever possible to allow additional fiber pulls later
- Label every splice point and splitter location in your documentation from day one
- Plan your OLT room space for at least one generation of equipment expansion
Final takeaways
A passive optical network explained through real deployment decisions comes down to a few core principles: remove active equipment from the distribution layer, match your split ratio to your actual bandwidth requirements, and pull extra conduit so your fiber plant outlasts multiple generations of headend hardware. PON’s architecture gives you a scalable, low-maintenance foundation whether you’re serving a multi-family residential campus, a hospitality property, or a healthcare facility with demanding connectivity requirements.
Getting these design choices right from the start prevents expensive rework later. Your split ratio, OLT selection, and fiber routing all compound over the life of the network, so the decisions you make during design carry more weight than any single piece of equipment. If you’re planning a fiber infrastructure project and want experienced guidance on how to build it correctly the first time, talk to the team at Trindom Global about your project requirements.
