A poorly designed server room doesn’t announce itself with a single catastrophic failure. It shows up as intermittent overheating, unexpected downtime during peak hours, and security gaps that nobody notices until an audit, or worse, a breach. Following server room design best practices from the start eliminates these problems before they cost you real money and operational continuity.
Whether you’re building a new server room from scratch or retrofitting an existing space, the core challenges stay the same: adequate power delivery, effective cooling, physical security, and structured cabling that doesn’t turn into a tangled mess six months after install. Each of these systems depends on the others. Get one wrong, and it creates a domino effect that undermines everything else in the room.
At Trindom Global, we design, build, and integrate IT infrastructure for hospitals, commercial facilities, government agencies, and multi-family properties. Our teams have planned and executed server room buildouts across sectors where downtime isn’t just inconvenient, it’s unacceptable. That hands-on experience shapes every recommendation in this guide. We’ve seen what works in production environments, not just on paper, and we’ve seen what fails when teams skip steps or cut corners on critical infrastructure decisions.
This article breaks down the essential standards and actionable steps for server room design, covering power architecture, cooling strategies, physical security controls, cable management, and monitoring. By the end, you’ll have a clear framework to plan, evaluate, or improve your server room environment with confidence.
Why server room design matters
The server room is the physical backbone of your IT operations. Every technical decision you make during the design phase shapes the reliability, scalability, and security of your infrastructure for years to come. A room that looks functional on opening day can reveal serious problems within 18 months if the original design ignored how power, cooling, cabling, and access controls interact under real operating conditions.
Organizations that apply server room design best practices from the start consistently see lower operational costs, fewer emergency repairs, and faster recovery when hardware fails. Those that skip the planning phase tend to discover the gaps at the worst possible time, when a circuit trips under peak load or a technician cannot locate the right cable during an active incident.
Downtime carries a direct financial cost
Server downtime is rarely just a technical inconvenience. Even a single hour of unplanned downtime can cost a mid-sized organization tens of thousands of dollars in lost transactions, idle labor, and emergency service fees, and that number climbs significantly in healthcare, finance, and government environments where systems run around the clock.
The physical environment your servers operate in is one of the most controllable variables in your uptime equation. Design it correctly, and you remove an entire category of preventable failures from the equation.
Beyond the immediate dollar loss, unplanned outages damage client relationships, create compliance exposure, and drain your IT team’s capacity with reactive work that should never have been necessary. A server room built with redundant power paths, properly sized cooling, and structured cable management rarely produces these events. The ones that do are almost always rooms where design was treated as an afterthought rather than a foundation.
Design decisions compound over time
The layout you choose on day one determines how every future upgrade will go. Rack placement, aisle orientation, and floor load capacity all interact with each other in ways that are extremely difficult to reverse after construction is complete. A rack positioned without accounting for hot aisle and cold aisle separation will work against your cooling system for the entire operational life of the room.
Power and cooling infrastructure are not independent systems. The capacity of your UPS, the placement of your precision cooling units, and the routing of your power distribution paths all depend on choices made during the initial layout phase. When those choices are made without a full design review, you end up with systems that function in isolation but underperform or conflict at full load, exactly when you need them most.
Scalability is another compounding factor. A room designed for today’s hardware footprint without accounting for future rack density or power draw will force you into costly retrofits within a few years. Planning headroom for expansion during initial design costs far less than rebuilding a live environment under operational pressure.
Compliance and standards set a baseline you cannot ignore
Several standards bodies publish specific requirements that govern how a server room must be built and operated. The Uptime Institute’s tier classification system and the TIA-942 structured cabling standard both define infrastructure requirements around power redundancy, cooling capacity, and physical security that affect your ability to meet SLAs, pass third-party audits, and qualify for enterprise or government contracts.
Regulatory requirements are especially critical in healthcare and government sectors, where server rooms may house systems subject to HIPAA, FedRAMP, or other compliance frameworks. Failing an infrastructure audit in those environments does not just produce a recommendation to fix later. It can suspend operations, trigger contract penalties, or expose your organization to legal liability. Building to published standards from the beginning gives your team a documented, defensible baseline to measure against during every future review.
Plan requirements and constraints early
Skipping requirements planning is the fastest way to invalidate every decision you make downstream. Before you select a location, configure racks, or order equipment, you need a clear picture of what your server room must support today and over the next five years. That foundation shapes every technical choice that follows, from power capacity to cooling strategy to physical footprint.
Know your load and space constraints
Physical space and structural capacity are non-negotiable starting points. The room you choose must support the combined weight of fully loaded racks, raised floor sections, cooling units, and cable trays. A standard 42U rack filled with dense servers can exceed 2,000 pounds, and most office floors are not engineered to handle that load without reinforcement.
Beyond floor load, your power draw estimate needs to account for peak utilization, not just average operating load. Calculate total wattage across all planned hardware, then add 20 to 30 percent as a buffer for future expansion. Underestimating power requirements at this stage forces expensive electrical upgrades later, often while the room is live and operational.
Treat your load and space calculations as binding requirements, not rough estimates. Revising them mid-project costs significantly more than getting them right at the start.
Identify budget and regulatory requirements
Regulatory and compliance requirements directly affect which design choices are available to you. Healthcare environments subject to HIPAA, government facilities operating under FedRAMP, and financial organizations with their own audit obligations all face minimum infrastructure standards that must be reflected in your design from day one. Missing these requirements during planning means retrofitting controls under pressure later.
Budget constraints define the realistic scope of your buildout, but they should never justify skipping redundancy in critical systems. Prioritize spending on power and cooling resilience first, since failures in those systems carry the highest operational cost. Structured cabling and physical security investments follow closely, and both are areas where applying server room design best practices early prevents expensive rework during future expansions.
Procurement timelines for long-lead items like precision cooling units, UPS systems, and switchgear also belong in your planning phase. These components frequently carry lead times of 8 to 20 weeks depending on supply chain conditions. Starting procurement during design rather than after it keeps your project on schedule and prevents costly delays before your go-live date.
Build the right room layout and rack plan
Your room layout determines how well every other system performs. Rack placement, aisle orientation, and cable routing paths all interact in ways that affect cooling efficiency, power distribution, and technician access from day one. Applying server room design best practices during the layout phase means making spatial decisions that align with your thermal, electrical, and operational requirements, not just fitting as much hardware as possible into the available footprint.

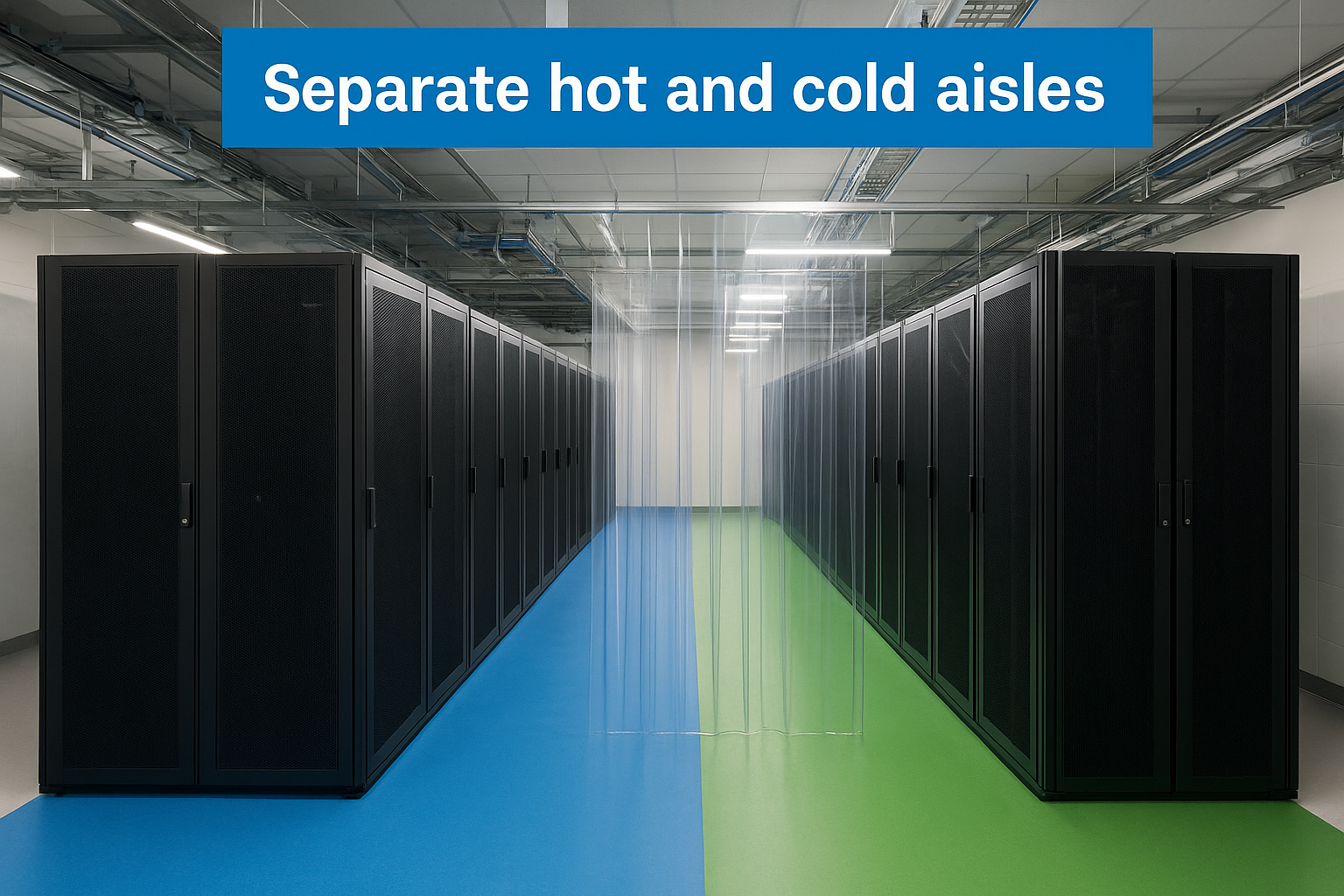

Separate hot and cold aisles
Hot aisle and cold aisle containment is the single most impactful layout decision you will make. Cold aisles face the front of racks where equipment draws in cool air, while hot aisles face the rear where equipment exhausts heat. Alternating this orientation consistently across every row directs airflow in a predictable pattern that your cooling system can manage efficiently.
When aisles are mixed or racks face inconsistent directions, hot exhaust recirculates back into cold supply air, forcing your cooling units to work harder and raising average server inlet temperatures beyond safe operating limits.
Physical containment barriers on each aisle, whether rigid panels or flexible strip curtains, prevent hot and cold air from mixing between rows. This approach reduces cooling energy consumption significantly and keeps your equipment operating within manufacturer-specified temperature ranges across varying load conditions.
Position racks for access, weight, and future growth
Every rack position needs clear front and rear access, with a minimum aisle width of 36 inches to allow technicians to work safely and move equipment without obstruction. Wider aisles of 42 to 48 inches are preferable in high-density environments where cable trays and vertical cable managers add bulk to the rear of each rack.
Floor load capacity directly affects where you can place high-density racks. Map your heaviest racks over structural support points in the subfloor or concrete slab, and distribute weight evenly across the room rather than concentrating dense equipment in a single zone. This step is especially critical in raised floor environments where tiles and pedestals carry specific point load ratings that are easy to exceed with modern server hardware.
Reserve at least 20 percent of your total rack capacity as empty space for planned future expansion. Filling a room to capacity on day one means every hardware refresh forces a layout change, which disrupts cabling, airflow, and power distribution across the entire room. Building in planned headroom from the start keeps your infrastructure stable as your hardware footprint grows over time.
Design reliable power and electrical paths
Power infrastructure failures are responsible for a significant share of server room outages, and most of them trace back to design decisions made before a single rack was installed. Applying server room design best practices to your electrical architecture means thinking beyond simply plugging equipment in. Your power path needs to be designed so that no single component failure can take down the entire room, and every circuit must be sized for the load it will realistically carry at peak utilization.

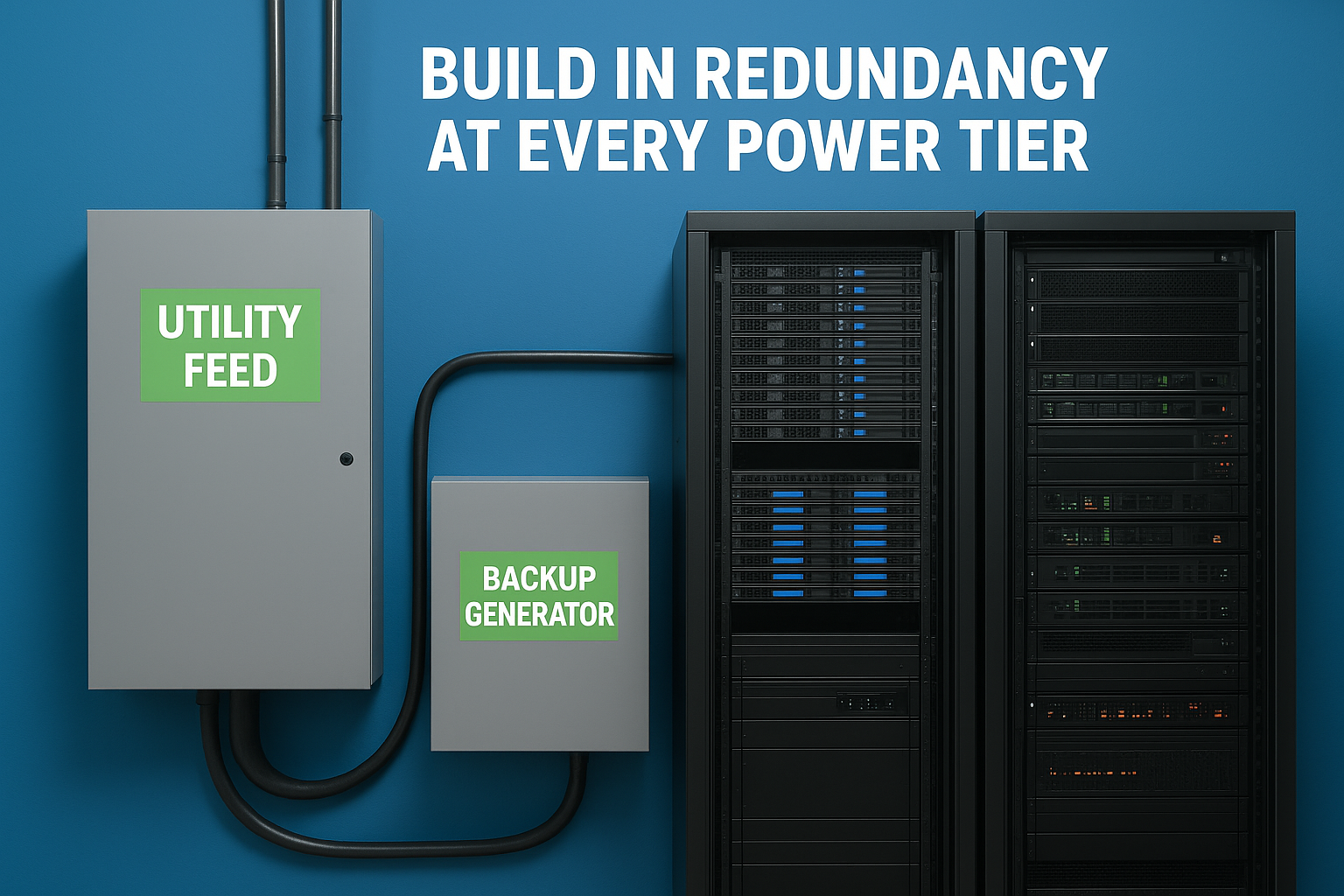

Build in redundancy at every power tier
Redundant power paths start at the utility feed and carry through every layer down to the rack. For environments where uptime is critical, a dual-feed configuration with two separate utility feeds entering the building from independent substations gives you protection against utility-side failures. A single feed with a backup generator provides a lower-cost alternative, but it introduces a brief transfer gap that some sensitive systems cannot tolerate without additional buffering in place.
If your operations cannot accept even a momentary power interruption, design for an A+B power path from the utility all the way to dual power supply units in each server.
Automatic transfer switches handle the switchover between your primary feed and backup generator, but their transfer time and compatibility with your UPS systems must be verified during the design phase, not after installation. ATS units vary in transfer speed, and some sensitive equipment requires nearly seamless transitions that only certain UPS topologies can provide.
Size your UPS and PDUs correctly
Your uninterruptible power supply (UPS) must be sized to handle your full connected load plus the expansion headroom you identified in the requirements phase. A UPS running at or above 80 percent of its rated capacity produces excess heat, shortens battery life, and leaves you with no margin when load spikes during peak hours. Target a runtime that matches your generator start and transfer time, typically five to ten minutes, with an additional buffer.
Power distribution units (PDUs) inside each rack should be selected to match the amperage and connector types your hardware requires. Managed PDUs give you remote monitoring of per-outlet power draw, which lets you catch circuits approaching capacity before they trip. Rack-level metering also feeds directly into your capacity planning process, giving you real data on actual consumption rather than relying on nameplate ratings that rarely reflect true operating loads.
Each circuit feeding a rack or row of racks should be dedicated and labeled clearly on your electrical panel, with breaker ratings that match the load calculations you completed during planning. Shared circuits are a reliable source of unexpected trips under load.
Engineer cooling and airflow that scales
Cooling is where many server room designs fail silently. Equipment runs warm, fans spin faster than intended, and hardware lifespans shorten before anyone traces the problem back to an undersized or poorly configured cooling system. Applying server room design best practices to your thermal strategy means calculating actual heat load, selecting the right cooling infrastructure, and building in flexibility before your equipment density increases.
Match your cooling capacity to actual heat load
Your cooling system needs to remove heat as fast as your equipment generates it, and that calculation starts with accurate power data. Total heat output in BTUs per hour equals your total wattage multiplied by 3.41, so a room drawing 20 kilowatts produces roughly 68,200 BTUs per hour that your cooling infrastructure must continuously remove. Rounding this number down is one of the most common and costly mistakes in server room thermal design.
Size your cooling capacity to handle your projected peak load, not your average operating draw. Average load figures underestimate the heat your room generates during maintenance windows, batch processing jobs, or high-traffic periods.
Precision cooling units designed for server room environments handle humidity control and temperature consistency in ways that standard HVAC systems cannot. A dedicated computer room air conditioner (CRAC) or computer room air handler (CRAH) maintains tighter tolerances and responds faster to load changes than building HVAC, which makes it the right choice for any room where server inlet temperatures must stay within the ASHRAE A1 or A2 thermal envelope.
Distribute airflow at the rack level for dense deployments
Row-based and in-row cooling units position cooling capacity directly adjacent to heat-generating equipment rather than relying on room-level air distribution to reach every rack. In-row cooling reduces the distance that cooled air must travel, which improves efficiency and eliminates the temperature variance that occurs when cold air warms up before it reaches racks positioned far from wall-mounted units.
For high-density rack deployments exceeding 10 kilowatts per rack, rear-door heat exchangers provide another targeted option by capturing exhaust heat at the rack before it enters the hot aisle. This approach works alongside your existing room cooling rather than replacing it, and it scales with each rack you add rather than requiring a full system redesign.
Blanking panels in every empty rack unit are a low-cost but high-impact step that prevents hot air from recirculating through empty rack spaces back into the cold aisle. Fill every unused rack slot before the room goes live, and maintain that discipline through every hardware change going forward.
Lock down physical security and life safety
Physical security is not a feature you add after the room is built. Every server room design best practices framework treats access control, surveillance, and life safety systems as core infrastructure, not afterthoughts. An unlocked door or an unchecked environmental hazard can cause more damage than a power failure, and the consequences are often harder to reverse.
Control physical access at every entry point
Your server room should operate on a strict need-to-enter basis. Multi-factor access control at the main entry, combining something like a key card with a PIN or biometric reader, ensures that physical access requires deliberate authentication rather than a single credential that can be lost or shared. Standard door locks provide almost no real protection in a facility where multiple people come and go during the day.
Logging every entry and exit with timestamped records gives you an audit trail that supports both internal investigations and third-party compliance reviews.
Surveillance cameras positioned to cover the main entry, each aisle, and the equipment side of every rack create a visual record that complements your access logs. Camera placement matters: blind spots near the rear of racks or in corners adjacent to cable entry points are common in rooms where cameras were installed without a systematic coverage plan. Pair camera footage with motion-triggered alerts so your team gets notified immediately when the room is accessed outside of scheduled maintenance windows.
A visitor log, whether paper or digital, should capture the name, purpose, and supervising staff member for every person who enters the room without independent credentials. Many compliance frameworks require this documentation, and it reinforces a culture of accountability around physical access.

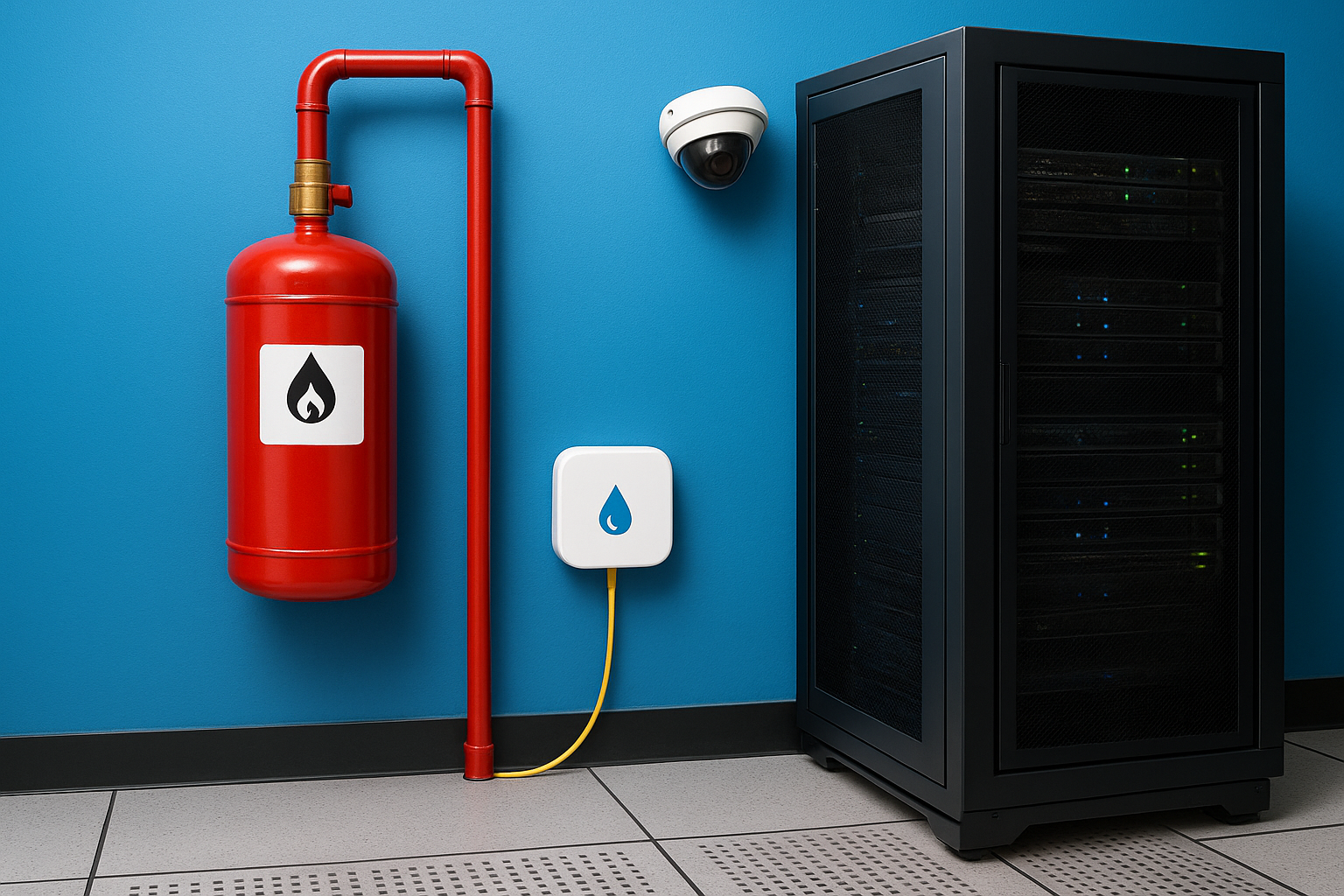

Protect against fire, water, and environmental threats
Suppression systems designed specifically for server rooms use clean agent suppression rather than water, which eliminates the secondary damage that a standard sprinkler system causes to live equipment. Clean agent systems discharge a gas that removes oxygen from the fire triangle without leaving residue or conducting electricity, making them safe to activate in an occupied, energized room.
Water leak detection sensors placed at floor level under raised tiles and near cooling units catch plumbing failures and condensation before they reach your electrical infrastructure. Position sensors at low points where water would naturally pool, and connect them to your monitoring system so alerts reach your team in real time rather than during a scheduled inspection. Combining suppression, leak detection, and smoke detection into a single monitored life safety system gives you layered protection that addresses the environmental threats most likely to cause irreversible hardware damage.
Set up monitoring, documentation, and upkeep
A server room that runs well on day one can quietly degrade over months if nobody is watching the right metrics. Ongoing monitoring, complete documentation, and a structured maintenance schedule are what separate a room that holds its performance over years from one that slowly accumulates problems until something critical fails. Applying server room design best practices to your operational processes matters just as much as the initial build.
Monitor environmental and power conditions in real time
Your monitoring system should track temperature and humidity at multiple points throughout the room, not just at a single sensor near the cooling unit. Sensors positioned at the top and bottom of representative racks give you a vertical temperature profile that catches hot spots forming before they affect hardware. Set alert thresholds below your equipment’s rated maximums so your team has time to respond before anything trips into an unsafe range.
Waiting for hardware to report a thermal fault means your cooling system already failed to maintain safe conditions. Catch the trend before it becomes an event.
Power monitoring through managed PDUs and your UPS management software gives you real-time visibility into circuit-level draw, battery health, and remaining runtime. Review this data regularly and compare it against your original load calculations to identify circuits trending toward capacity limits. Catching a circuit at 75 percent utilization during normal operations leaves you time to redistribute load before peak conditions push it over the edge.
Document everything and maintain it accurately
Your documentation set should cover every installed component, every circuit, every cable run, and every access credential in the room. A current floor plan with rack positions, equipment inventories, and cable labels lets your team resolve incidents faster and onboard new staff without relying on institutional memory that walks out the door when someone leaves.
Change management records are equally important. Every hardware addition, cable move, firmware update, or configuration change should produce a dated log entry that describes what changed and who made the change. This record becomes invaluable during troubleshooting and is often required for compliance audits in regulated environments.
Schedule preventive maintenance at regular intervals to clean dust filters, inspect cable management, test UPS transfer and battery capacity, verify fire suppression system readiness, and confirm that all access control credentials reflect your current staff roster. Preventive maintenance visits take less time and cost less than emergency repairs, and they catch the gradual wear that monitoring alone does not always surface until a component reaches the point of failure.
Next steps
Every section of this guide connects to a central point: server room design best practices work because they treat power, cooling, security, and monitoring as a single integrated system rather than independent problems to solve in isolation. Skipping any one of those layers creates a vulnerability that eventually surfaces under real operating conditions, usually at the worst possible time.
Your next move depends on where you are in the process. If you’re planning a new buildout, start with load calculations and space constraints before you make any other decision. If you’re evaluating an existing room, run through the cooling and power redundancy checks first, since those failures carry the highest cost. Either way, working with an experienced team shortens the path from plan to operational infrastructure.
