A single cable pulled to the wrong location or a patch panel terminated without following standards can cascade into hours of troubleshooting and thousands of dollars in rework. That’s exactly the kind of problem a solid structured cabling design guide addresses before the first cable tray goes up. Whether you’re building out a hospital headend, wiring a hotel for guest Wi-Fi, or connecting a government facility to meet strict compliance requirements, the planning phase determines everything that follows.
At Trindom Global, structured cabling and headend buildout is core to what we do. Our teams design, install, and integrate network and telecom infrastructure across healthcare, commercial, hospitality, and government environments, projects where getting it right the first time isn’t optional. That hands-on experience across sectors is exactly what shaped this guide. We built it to reflect how cabling systems actually get planned and deployed in the field, not just what looks good on paper.
This guide covers the standards you need to follow (TIA-568, ANSI/TIA-606), the components that make up a compliant cabling system, layout planning strategies, and testing procedures that verify performance before handoff. By the end, you’ll have a clear framework for designing a structured cabling system that supports your current operations and scales with your infrastructure over time.
What structured cabling design includes and why it matters
Structured cabling design is the process of planning, specifying, and laying out a telecommunications infrastructure that connects end devices to the network in a predictable, standards-compliant way. It is not just about running cable from point A to point B. It covers every layer of your physical network, from the entrance facility where your service provider connects to the building, all the way to the individual work area outlets at each desk, rack, or medical device. Following a structured cabling design guide keeps each of those layers organized, testable, and replaceable without bringing down the rest of the system.

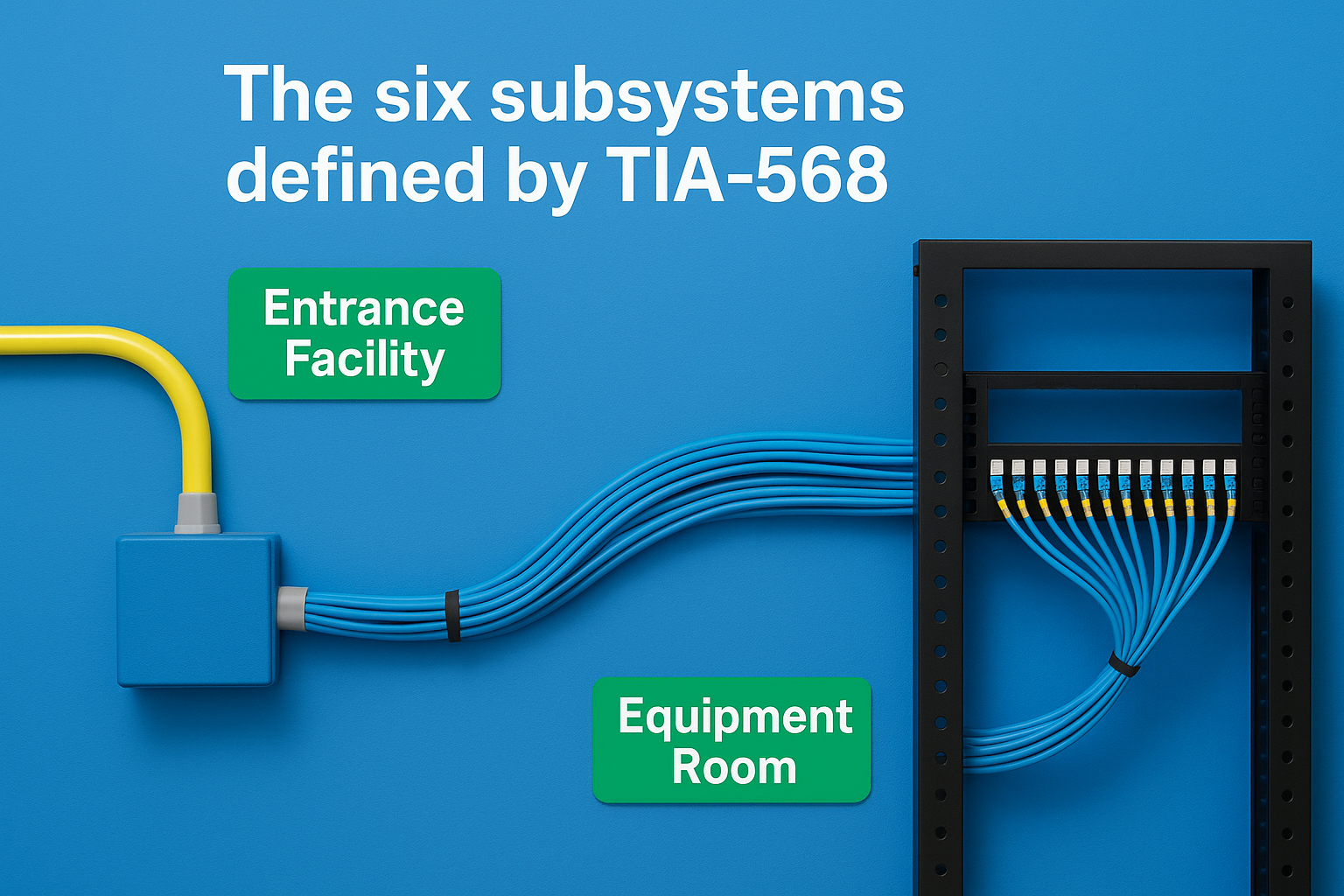

The six subsystems defined by TIA-568
TIA-568, the primary North American standard for commercial building telecommunications cabling, organizes every cabling system into six distinct subsystems. Each one carries its own specifications for cable length, termination method, and hardware type. Understanding what each subsystem covers helps you plan spaces, pathways, and connections correctly from the start.
| Subsystem | What it covers |
|---|---|
| Entrance Facility (EF) | Where outside plant cabling meets the building’s internal cabling |
| Equipment Room (ER) | Houses servers, main distribution frames, and backbone terminations |
| Backbone Cabling | Connects equipment rooms and telecom rooms using fiber or high-pair-count copper |
| Telecommunications Room (TR) | Intermediate distribution points housing patch panels and active equipment |
| Horizontal Cabling | Runs from the TR to each work area outlet, typically limited to 90 meters |
| Work Area (WA) | Includes outlets, faceplates, and patch cords connecting end devices to horizontal cabling |
Getting the boundaries between subsystems wrong during planning, especially between backbone and horizontal runs, is the most common source of link failures during certification testing.
Why early design decisions carry the most weight
The choices you make during the design phase control every performance and cost variable that surfaces later. If you plan pathways too narrow for future cable additions, you pay to rip and replace conduit. If you spec Cat6 when the application requires Cat6A or fiber, you face re-termination costs before the system is even two years old. Infrastructure projects in hospitals and government facilities carry even higher stakes because rework often means coordinating around active operations, restricted access zones, and compliance audits.
Your design documentation also drives contractor accountability on the job site. When your drawings, cable schedules, and labeling conventions follow TIA-606 from day one, every installer works from the same reference point. That consistency is what makes testing, troubleshooting, and future upgrades predictable rather than reactive.
Step 1. Gather requirements and map risks
Before you draw a single cable run or open any structured cabling design guide template, you need to capture what the building actually needs and where the installation could go wrong. Skipping this step is the fastest way to produce a design that looks complete on paper but fails once contractors start pulling cable.
Collect building and application data
Start by pulling the following information for every space you plan to serve:
- Occupancy type and density: How many users or devices will connect per floor or zone?
- Application requirements: Does the space run standard data, voice over IP, building automation, or medical equipment?
- Future growth projections: Will headcounts or device counts increase within the next five years?
- Existing infrastructure: What conduit, cable tray, or riser space is already in place?
This data directly controls your cable type selection, pathway sizing, and TR placement in the next design steps. Without it, you are guessing at specifications that have real cost consequences.
Map physical and compliance risks
Once you have your requirements, walk the building with your drawings and flag every constraint that could affect routing or performance. Look for long horizontal runs that approach the 90-meter TIA-568 limit, areas where cable must share pathways with high-voltage electrical runs, and any zone with temperature or humidity conditions that fall outside the operating range for copper or fiber.
If you’re working in a healthcare or government facility, document any restricted access zones, infection control requirements, or security clearance areas before finalizing pathways, because redesigning routes after construction starts adds significant cost and schedule risk.
For compliance-sensitive environments, build a risk matrix that lists each identified issue alongside its impact level and mitigation approach. This document becomes part of your project record and protects you during inspections and audits.
Step 2. Build standards-based layouts and pathways
With your requirements document and risk matrix in hand, you can now translate that data into actual floor plan layouts and pathway routes. This step is where your structured cabling design guide converts from a planning document into a buildable drawing set. Every layout decision you make here must reference TIA-568 distance limits and subsystem boundaries, because those standards are what certifiers check when they test your finished system.

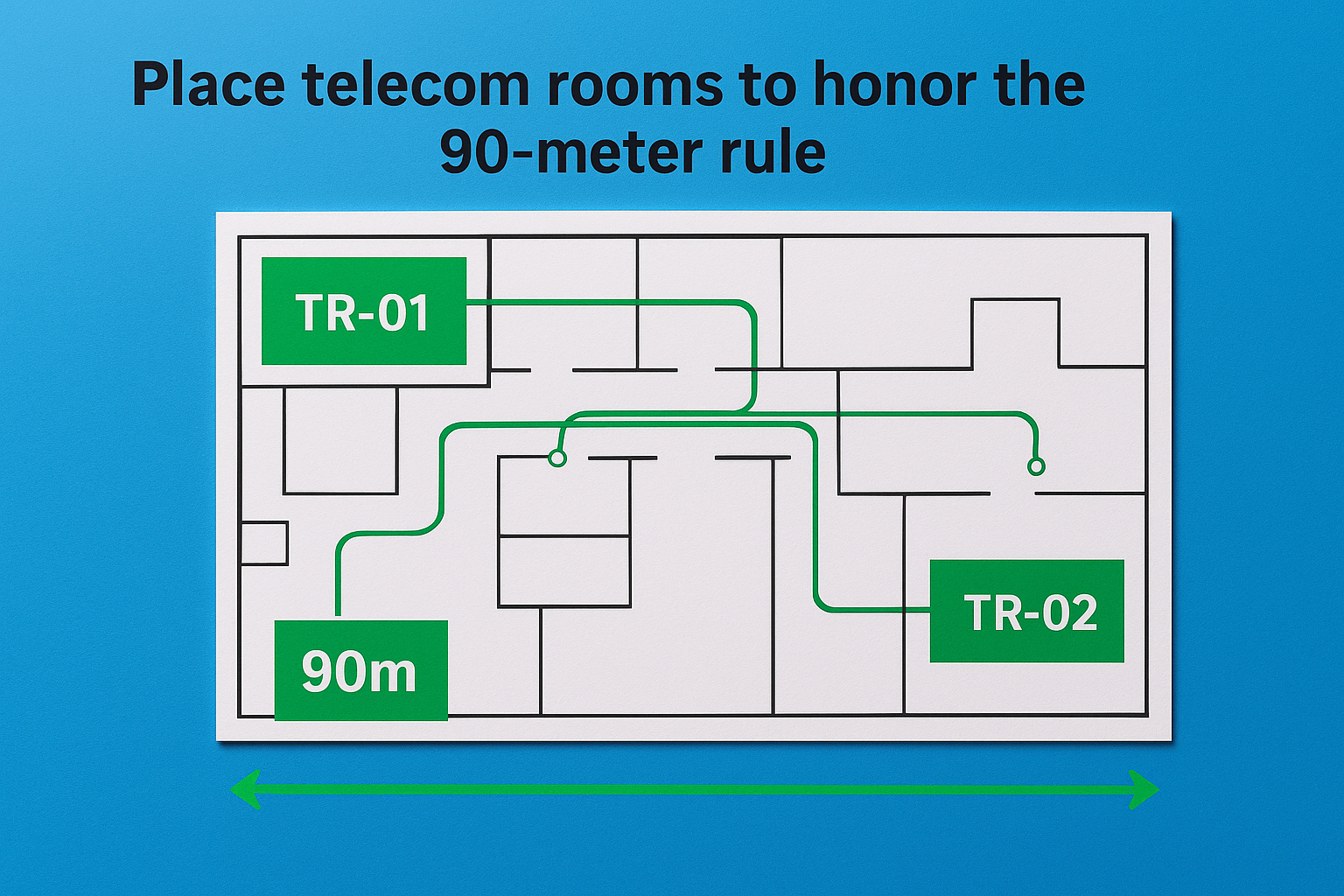

Place telecom rooms to honor the 90-meter rule
Your horizontal cabling runs from each telecommunications room (TR) to every work area outlet it serves. TIA-568 caps that distance at 90 meters for permanent link copper, leaving 10 meters for patch cords at each end. Position each TR so that the farthest outlet it feeds stays within that 90-meter cable travel limit, not straight-line floor plan distance. Cable routes through conduit, up risers, and across trays, so add at least 15% to your measured distances before confirming final TR locations.
Placing a TR even 5 meters too far forces you to split the coverage zone and add another room, which multiplies your hardware and labor costs.
Use this quick coverage check template for each TR you place:
| TR ID | Floor/Zone | Measured Distance | Cable Travel (+15%) | Within Limit? |
|---|---|---|---|---|
| TR-01 | Floor 1 North | 72m | 83m | Yes |
| TR-02 | Floor 2 South | 80m | 92m | No – relocate |
Route pathways to keep signals clean
Once your TR locations are confirmed, map every conduit run, cable tray, and sleeve penetration on your drawings. Separate copper data cable from high-voltage electrical runs using the minimum clearances specified in ANSI/TIA-569. Mark each pathway segment with:
- Type (conduit, tray, or sleeve)
- Fill capacity and current fill percentage
- Direction of travel and destination TR
This labeling gives contractors and inspectors a shared reference and prevents fill violations before they happen.
Step 3. Select cable types, hardware, and spaces
Your requirements document and layout drawings now give you everything you need to specify cable categories, termination hardware, and room dimensions. This is where a structured cabling design guide moves from abstract planning into concrete product selections. Getting these decisions right prevents costly substitutions mid-installation and ensures your system passes certification on the first attempt without re-pulls or re-terminations.
Match cable grade to application requirements
Not every run in your building needs the same cable grade. Each application type carries different bandwidth, distance, and power delivery demands that determine which category you need to spec. If your project mixes multiple application types across zones, spec the highest required grade for any shared backbone runs to avoid pulling separate cables through the same pathway. Use this selection table to match your application to the correct cable tier before ordering materials:
| Application | Minimum Cable Grade | Notes |
|---|---|---|
| Standard data (1GbE) | Cat6 | Suitable for most office and hospitality environments |
| High-density or PoE+ | Cat6A | Better heat dissipation, supports 10GbE to 100 meters |
| Building backbone | OM4 or OS2 fiber | Required for runs exceeding copper distance limits |
| Medical equipment | Cat6A or fiber | Check device manufacturer specs before finalizing |
Specifying Cat6 where Cat6A is required is the most common mid-project cable swap that blows schedules and budgets in healthcare and government builds.
Spec hardware and size your spaces
Every telecommunications room needs patch panels, cable management hardware, and adequate rack space to handle current horizontal terminations plus room for future expansion. Undersized rooms and overloaded cable trays are the two most common hardware mistakes that force rework after installation begins. Size your rooms and hardware before finalizing drawings, not after, and plan for 25% spare capacity in every patch panel and cable tray from day one. Use this checklist:
- Floor space: minimum 2.4m x 2.4m per TR serving a standard floor
- Power: dedicated circuit with UPS backup for active equipment
- Cooling: confirm airflow handles full rack load at peak operation
- Pathway entry: sleeves or conduit stubs sized at 110% of current fill
Step 4. Document, label, test, and certify
A complete structured cabling design guide delivers more than a working network at handoff. It produces a documentation package, labeling scheme, and certified test record that any technician can use to troubleshoot, expand, or hand off the system years later. Skipping documentation at this stage turns a clean installation into a mystery the next team has to reverse-engineer at your client’s expense.
Build your documentation package
Your documentation package needs four core deliverables before the project closes: as-built drawings that reflect actual cable routes and termination points, a cable schedule mapping every run to its origin, destination, and identifier, a rack elevation diagram for each TR, and a copy of all test reports. Store these files in a format your client can access and update without proprietary software.
Apply TIA-606 labeling to every component
TIA-606 defines the labeling standard for telecommunications infrastructure, and you must apply it to every patch panel port, outlet, conduit, and cable before testing begins. Each identifier should follow a consistent hierarchy. For example: TR-01-PP-A-01 for Telecom Room 1, Patch Panel A, Port 1. Print labels on a thermal label printer and use the same format in both your physical installation and your as-built drawings so they match exactly.
If your physical labels and your documentation use different identifiers, every future move, add, or change takes twice as long to execute.
Run certification tests on every link
Use a Tier 2 certifier such as a Fluke DSX CableAnalyzer to test every permanent link against the TIA-568 channel requirements for the cable grade you specified. Run tests for insertion loss, NEXT, return loss, and length, then export the full report for each link. Fail any link that does not meet spec, fix it, and retest before issuing the final certificate to your client.
Next steps for a clean, scalable network

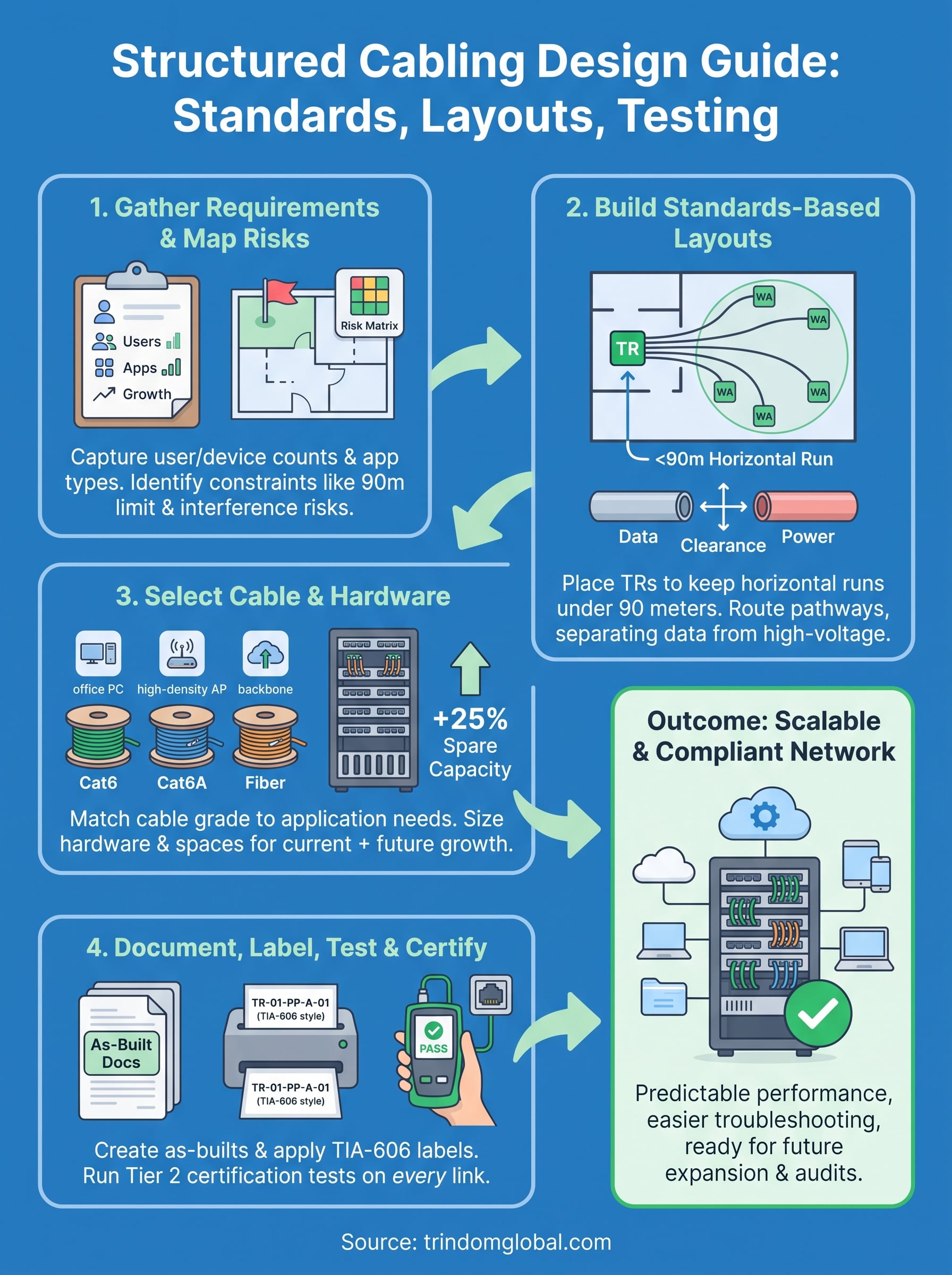

This structured cabling design guide gives you a complete framework: requirements gathering, standards-based layout, cable and hardware selection, and certified documentation at handoff. Every step builds on the one before it, and skipping any of them creates problems that surface at the worst possible time, during testing, during an audit, or when your client needs to expand the system two years from now.
