A single cable pulled to the wrong location or a patch panel installed without a plan can cascade into hours of troubleshooting and thousands of dollars in downtime. That’s why understanding structured cabling system components matters before any cable gets run through a ceiling or wall. These components aren’t random, they follow standardized subsystems defined by ANSI/TIA-568, giving every network a repeatable, scalable blueprint from the ground up.
At Trindom Global, we design, build, and install structured cabling systems for hospitals, commercial facilities, government buildings, and multifamily properties. Our teams have seen firsthand how getting the component architecture right from the start determines whether a network performs reliably for a decade or becomes a patchwork of workarounds within a year.
This article breaks down the six core components that make up a structured cabling system, from the entrance facility where outside lines meet your building to the work area outlets where end users connect. Whether you’re planning a new buildout or evaluating an existing installation, this guide gives you the technical foundation to make informed decisions about your network infrastructure.
1. Entrance Facilities
The entrance facility is where outside cabling infrastructure meets your building’s internal network. This is the physical demarcation point between the service provider’s responsibility and yours, and it sets the foundation for every signal that travels through your building.

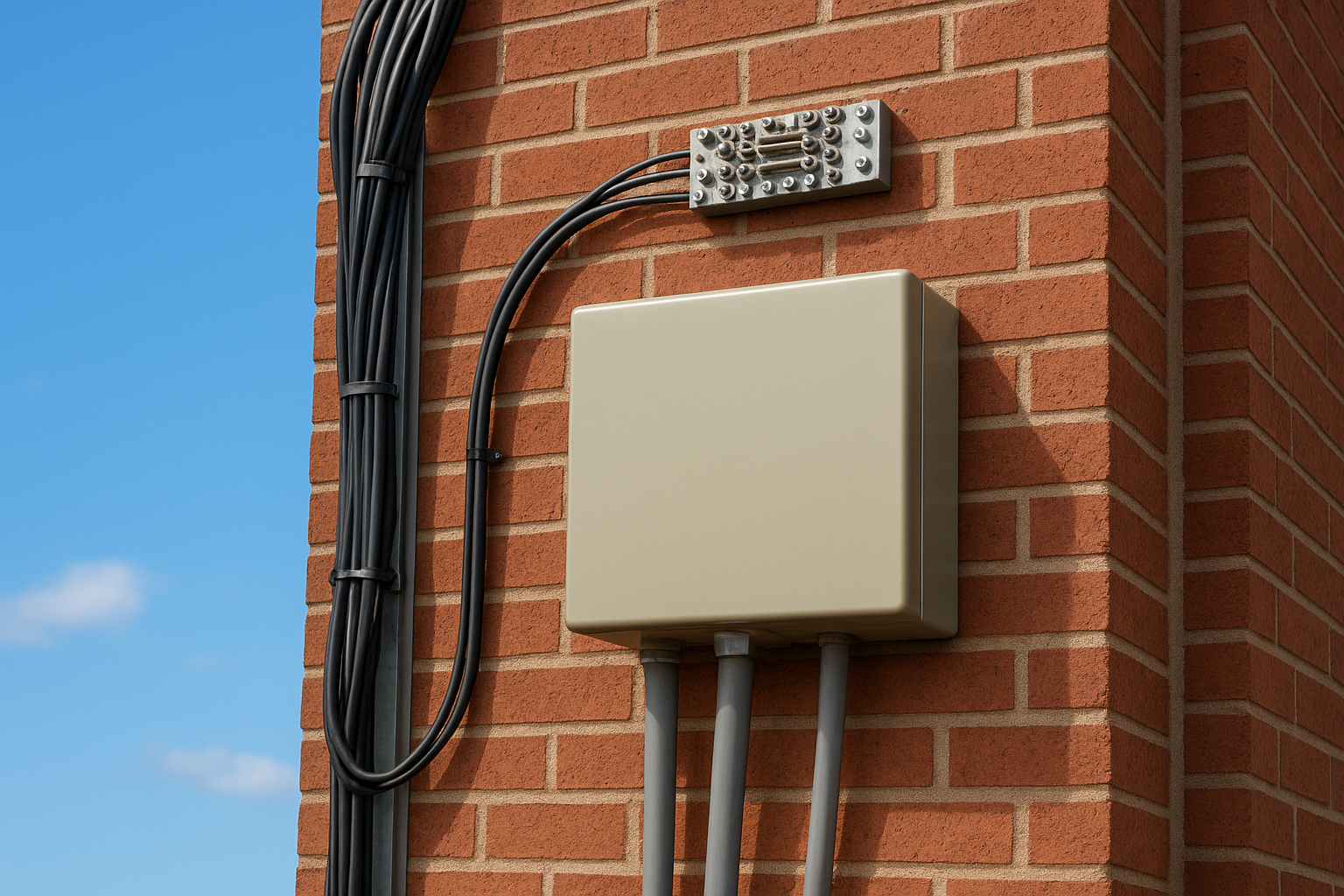

What this component is and where it sits in the network
The entrance facility sits at the boundary of your building, typically at ground level or in a basement. It serves as the handoff point where telecommunications carriers and internet service providers transfer their connections to your internal cabling. This location also marks where regulatory and code compliance responsibilities shift from the provider to the building owner.
Acting as the first point of signal contact in your network, the entrance facility carries every voice, data, and video service entering your building. This means any structural weakness at this point affects every downstream component.
What it includes
Your entrance facility holds termination hardware and protection devices, along with bonding and grounding equipment. Common elements include:
- Protectors and surge arrestors
- Grounding bars and bonding conductors
- Incoming cables from carriers (fiber, copper, or coaxial)
- Demarcation blocks or panels
Key requirements for safety, grounding, and protection
Proper grounding is a firm requirement at the entrance facility. The National Electrical Code (NEC) mandates bonding to the building’s grounding electrode system to protect both equipment and personnel from voltage surges. Lightning protection and surge suppressors must be installed on any metallic cable entering the building to guard against transient voltage damage.
Skipping proper grounding at the entrance facility exposes your entire network to surge damage and creates safety risks that affect both personnel and equipment throughout the building.
Common failure points and how to prevent them
Water intrusion ranks as the most frequent problem at entrance facilities, particularly where conduits penetrate the building envelope. Improperly sealed entry points allow moisture to travel along cable sheaths and degrade terminations over time. You should also inspect for corroded bonding connections on a regular schedule, since corrosion weakens grounding effectiveness and leaves downstream equipment exposed.
Scheduling annual visual inspections and sealing conduit penetrations with approved duct sealant catches most of these issues before they disrupt service. Keeping a simple maintenance log at the entrance facility also gives your team a baseline to identify degradation trends early.
How it connects to the rest of the cabling system
From the entrance facility, cabling runs to your equipment room or main telecommunications room, where internal distribution begins. Backbone cabling carries signals from that point to every floor and zone in your building. A poorly built entrance facility passes its weaknesses along to every downstream component in your structured cabling system.
2. Equipment Room
The equipment room is the centralized hub where your building’s internal network infrastructure lives. Unlike the entrance facility, which handles external handoffs, the equipment room hosts the core hardware that manages and distributes signals throughout your entire building.
What this component is and why it acts as the hub
The equipment room contains your main switching and routing hardware, along with the primary termination points that connect to backbone cabling running to each floor. Every data path in your building passes through or originates here, making its design and condition critical to overall network performance.
What it includes
This room typically houses servers, main distribution frames (MDFs), patch panels, network switches, and power distribution units. You’ll also find UPS systems and cable management hardware that organize the connections between all these devices.
A well-organized equipment room cuts troubleshooting time significantly because technicians can trace any connection without guessing or digging through unlabeled bundles.
Space, power, cooling, and physical security basics
Your equipment room needs dedicated cooling to handle the heat load from active hardware running continuously. Plan for redundant power circuits and a UPS system that gives you time to shut down cleanly during outages. Physical access should be restricted to authorized personnel only, using keyed locks or card readers.
Cable management, labeling, and documentation standards
Horizontal and vertical cable managers keep patch cords organized and protect them from accidental disconnection. Every cable and port should carry a unique label that matches your documentation system so any technician can work efficiently without prior knowledge of the installation.
Practical sizing tips for growth and upgrades
Build in at least 30% extra rack space from day one. Your structured cabling system components will expand as your organization adds users, devices, and services, and retrofitting a cramped room costs far more than planning ahead.
3. Backbone Cabling
Backbone cabling forms the vertical spine of your network, moving signals between the main equipment room and every telecommunications room in your building or across a campus. Without a reliable backbone, all downstream components in your structured cabling system have nowhere dependable to connect.
What backbone cabling does in a building or campus
Backbone cabling carries the highest traffic volumes in your entire cabling infrastructure, linking your equipment room to each floor’s telecommunications room. Every voice call, data request, and video stream from every user in your building passes through these runs, which means a weak backbone affects everyone simultaneously.
Common media types and when to use each
Your media choice depends on run length and bandwidth targets. Common options include:
- Single-mode fiber: campus runs exceeding 300 meters
- Multimode fiber (OM3/OM4): building risers under 300 meters
- Category 6A copper: short backbone segments in smaller facilities
Pathways, protection, and separation from interference
Backbone cables must travel through dedicated conduit or cable trays, physically separated from electrical wiring by the minimum distances specified in ANSI/TIA-569. This separation prevents induced interference that quietly degrades signal quality over time without triggering obvious failures.
Routing backbone cabling through shared conduits with power wiring is one of the most common causes of chronic interference and unexplained network slowdowns.
Performance planning for bandwidth and distance
Plan your backbone capacity at least one technology generation ahead of current demand. Structured cabling system components at the backbone level are the most disruptive and expensive to replace, so oversizing at installation avoids forced upgrades during peak operations.
Testing expectations and acceptance criteria
Every backbone link requires insertion loss and return loss testing against TIA-568 specifications before you commission any equipment. Fiber runs also need an OTDR trace to verify splice quality and confirm that end-to-end attenuation falls within the acceptable range for your chosen media type.
4. Telecommunications Room
The telecommunications room serves as the floor-level distribution point between your backbone cabling and every horizontal run on that floor or zone. Each room functions as a local hub, keeping connections organized and faults contained within a defined coverage area.
What a telecommunications room does on each floor or zone
Each telecommunications room manages signal distribution for its assigned floor or zone, receiving backbone connections from the equipment room and extending them outward to individual work areas. Keeping distribution localized limits any outage to one zone rather than disrupting the entire building simultaneously.
What it includes
Your telecommunications room holds patch panels, network switches, horizontal cable managers, and termination blocks. Together, these structured cabling system components form a contained, manageable connection point between backbone infrastructure and every end-user drop on the floor.

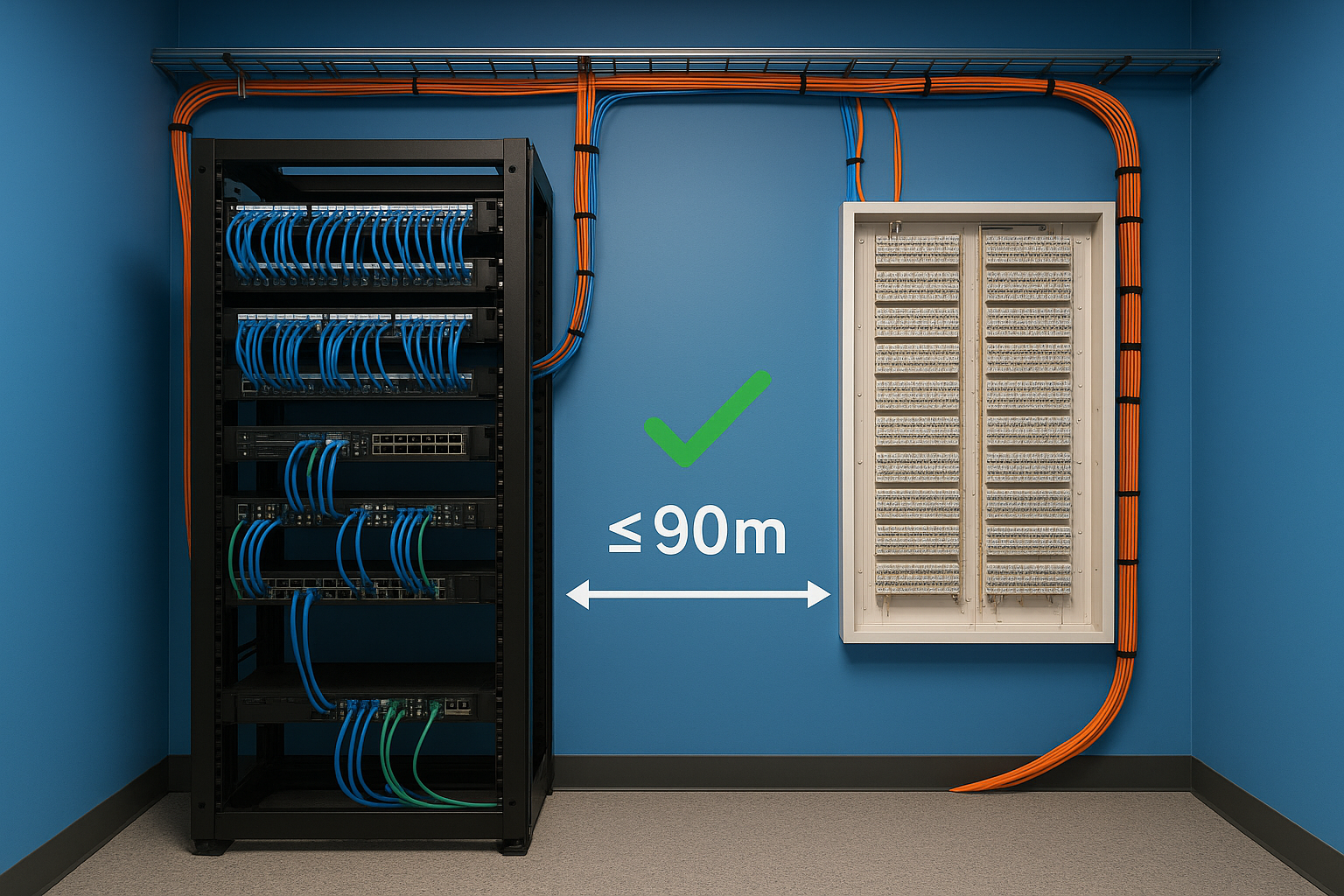

Placement rules that control horizontal cable lengths
Horizontal cable runs from the telecommunications room to each outlet must stay within 90 meters under TIA-568, with 10 meters reserved for patch cords on both ends. Placing each room centrally within its coverage zone keeps most runs well under that ceiling and preserves headroom for future layout changes.
Pushing runs close to the 90-meter limit leaves no margin for reroutes, and future moves can push those cables over spec without any visible warning.
Patch panel practices that speed up troubleshooting
Labeling every port with a unique identifier that matches your floor plan documentation lets any technician trace a connection in minutes rather than hours. Use cable management panels between patch rows to protect bend radius and keep cords from blocking airflow across active hardware.
Environmental and access control considerations
Your telecommunications room needs consistent temperature and humidity control to protect switches and patch equipment running continuously. Restrict entry with keyed locks or badge readers, and log every visit so your team can correlate network events directly with physical access to the room.
5. Horizontal Cabling
Horizontal cabling connects every work area outlet to the telecommunications room on the same floor. This layer of your structured cabling system components carries actual user traffic, so its quality directly determines what end users experience every day.
What horizontal cabling covers and what it must support
Each horizontal cable run spans from the telecommunications room patch panel to every outlet within its coverage area, making it the most widely distributed layer in your building.
Your users rely on this layer for the full range of services they need, including data, voice, and low-voltage applications such as IP cameras and access control systems.
Common cable categories and typical use cases
Category 6A is the current standard for new installations, supporting 10 Gigabit Ethernet across the full horizontal channel. Category 6 fits standard office environments with lower bandwidth needs. Common choices include:
- Cat 6A: 10GbE support, required for high-power PoE devices
- Cat 6: 1GbE, adequate for basic office environments
Length limits and why they matter
TIA-568 sets a firm 90-meter limit for horizontal runs from patch panel to outlet. Your remaining 10 meters covers patch cords at both ends. Exceeding this limit causes signal attenuation that no equipment upgrade can fix without pulling new cable.
Measuring every run before installation prevents discovering an out-of-spec link after drywall is already closed.
Installation practices that protect signal quality
Maintaining the cable’s rated bend radius throughout every pull prevents signal degradation at turns and corners.
Secure cables with hook-and-loop fasteners rather than zip ties, which compress internal pairs and deform the jacket when overtightened.
Certification tests and what “pass” should include
Every horizontal run needs channel and permanent link certification using a field tester calibrated to TIA-568 standards. A full passing report must document:
- Insertion loss and return loss within TIA-568 limits
- NEXT and ANEXT values confirming pair isolation
- Propagation delay and delay skew verifying signal timing
6. Work Area
The work area is the final layer of your structured cabling system components, covering everything between the wall outlet and the user’s device. While this zone receives less attention than backbone or horizontal infrastructure, it’s where every end user directly experiences your network’s performance every day.
What counts as the work area and what it touches
Your work area spans from the face of each outlet jack to the port on every endpoint device your building supports. Common work area locations include:
- Desk workstations
- Conference room AV connections
- IP camera mounts
- Access control readers
Accounting for all endpoint types during design prevents outlet shortages after installation.
Outlets, jacks, patch cords, and endpoint connections
Work area hardware includes keystone jacks, faceplates, and patch cords that complete the channel between the wall and each device. Match your patch cord category to your horizontal cable rating to avoid downgrading the entire link at the final connection point.
Using a Cat 5e patch cord on a Cat 6A channel drops the full link to Cat 5e performance, regardless of what’s installed behind the wall.
Planning for moves, adds, and changes without rewiring
Design modular faceplates with spare ports so your team can relocate users without pulling new cable. A per-workstation capacity plan with reserved ports pays back its cost at the first office reorganization.
Common user-side issues and how to avoid service calls
Damaged or wrong-spec patch cords cause more connectivity complaints than any other work area failure. Stocking a supply of tested replacement cords on each floor lets technicians resolve most issues in under five minutes without escalation.
Labeling conventions that help IT support fast
Mark every outlet faceplate with a unique identifier that matches your floor plan documentation. Pairing outlet labels directly to patch panel port numbers lets any technician trace a connection without calling the original installer.
Next Steps
Now that you understand each of the six structured cabling system components, you have the technical foundation to evaluate any installation with real confidence. Whether you’re planning a new buildout or auditing what’s already in place, knowing how each subsystem connects to the next lets you spot weaknesses before they turn into unplanned downtime.
Design decisions made early in a project determine how well your network performs years later. Every component covered here, from the entrance facility to the work area outlet, depends on choices made before the first cable runs through a wall. Poor planning at any layer creates problems that are expensive to fix and difficult to troubleshoot without a complete picture of your infrastructure.
Putting that knowledge into action is the next step. Trindom Global’s structured cabling team designs, installs, and certifies network infrastructure for hospitals, commercial facilities, government buildings, and multifamily properties. Reach out to discuss your project goals and get a plan built around your specific requirements.
