Every cable pull, every termination, every pathway in a commercial building traces back to a single set of rules: telecommunications cabling standards. These standards, primarily the ANSI/TIA-568 series, define how structured cabling systems should be designed, installed, and tested so that networks perform reliably from day one and scale without headaches years later.
Whether you’re building out a hospital headend, wiring a hotel for guest Wi-Fi, or running backbone cabling through a government facility, ANSI/TIA-568 is the baseline your work gets measured against. Ignoring it leads to failed inspections, warranty issues, and network problems that cost far more to fix than to prevent. Following it correctly means your infrastructure supports current applications and remains ready for future technology upgrades without a full rip-and-replace.
At Trindom Global, structured cabling design and installation is core to what we do across healthcare, commercial, hospitality, and government projects. We’ve seen firsthand how well-applied standards separate infrastructure that lasts from infrastructure that limps along. This article breaks down the ANSI/TIA-568 standard in plain terms, its components, key requirements, and practical impact on your cabling projects, so you can approach your next build with a clear technical foundation.

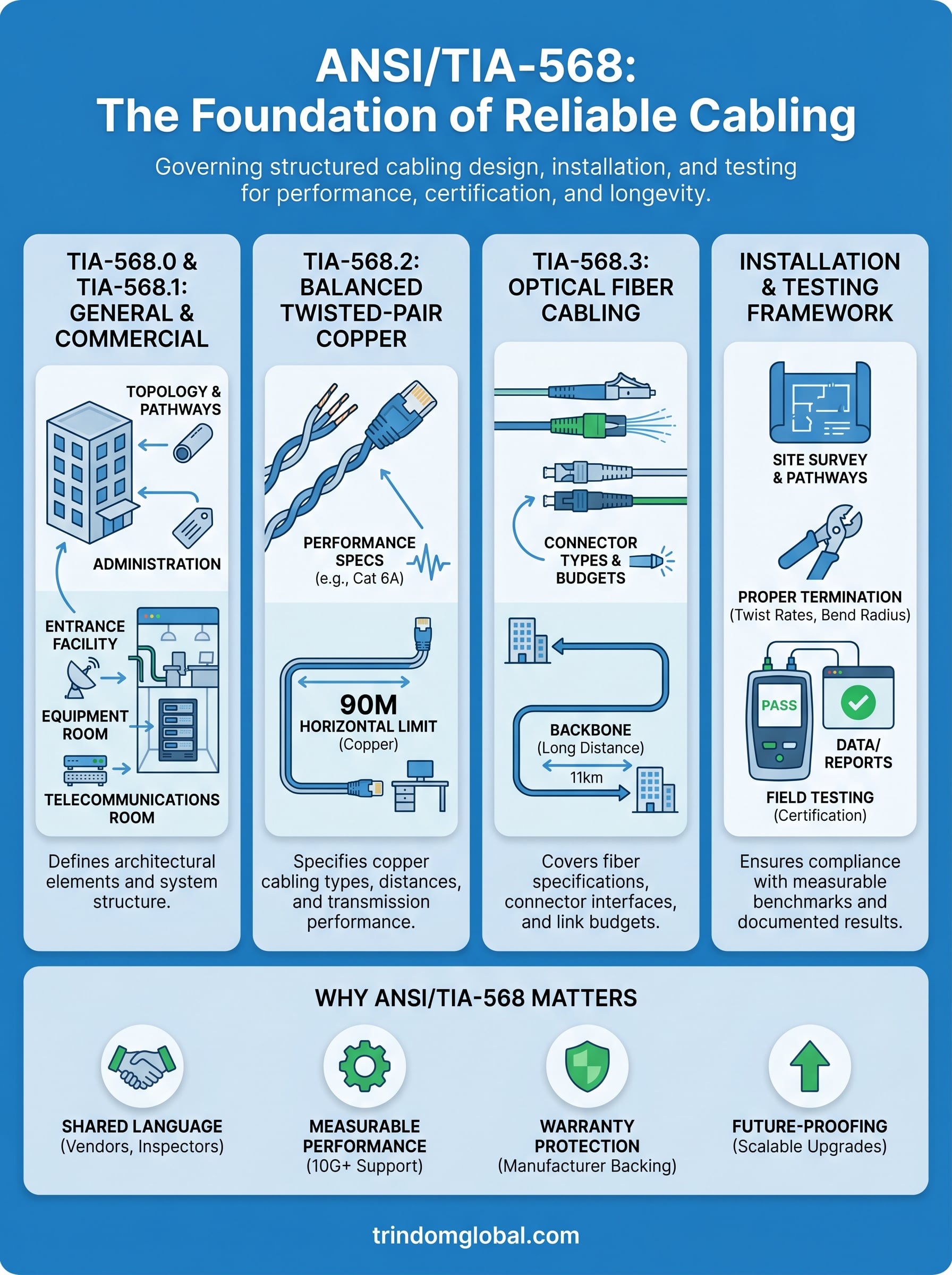

What ANSI/TIA-568 is and what it governs
ANSI/TIA-568 is a series of standards published by the Telecommunications Industry Association (TIA) and accredited by the American National Standards Institute (ANSI). It defines the minimum requirements for planning, installing, and testing telecommunications cabling systems inside commercial buildings. Think of it as the rulebook that tells you how to route cables, terminate connectors, and organize infrastructure so your system performs reliably and can be certified once the work is complete.
The history and scope of ANSI/TIA-568
The standard first appeared in 1991 as TIA-568-A, replacing an older Bell System specification that had become outdated as Ethernet and structured cabling practices matured. TIA has revised it several times since, with the current generation split across TIA-568.0, TIA-568.1, TIA-568.2, and TIA-568.3, each addressing a distinct portion of the overall framework. The scope covers commercial buildings of all types, including office campuses, healthcare facilities, hospitality environments, and government buildings.
When you design to ANSI/TIA-568, you build to a standard that has been tested, debated, and refined by engineers across the industry for more than three decades.
Your project benefits directly from that accumulated knowledge, since the standard captures lessons from thousands of real-world installations across every major building type and application.
The documents that make up the standard
The current ANSI/TIA-568 series divides its requirements across several numbered documents, each handling a specific cabling technology or scope. TIA-568.0 sets the general requirements that apply regardless of cable type, covering topology rules, pathway design, and administration labeling. TIA-568.1 focuses on commercial building cabling and defines the architectural elements of a structured cabling system, including entrance facilities, equipment rooms, and horizontal distribution areas.
TIA-568.2 addresses balanced twisted-pair copper cabling, covering everything from Category 6A patch cords to the performance specifications your cables must meet at each frequency range. TIA-568.3 covers optical fiber cabling, specifying connector types, bend radius limits, and the insertion loss budgets your fiber runs need to satisfy. Together, these four documents govern virtually every cabling decision you make on a structured cabling project, from the cable you pull to the connector you terminate and the test report you deliver to your client.
Why telecommunications cabling standards matter
Telecommunications cabling standards give every party on a project, owners, contractors, inspectors, and vendors, a shared technical language and measurable benchmarks. Without them, each contractor makes independent decisions about cable categories, link lengths, and connector types, and you end up with systems that perform inconsistently and fail when the load increases.
Performance you can measure and verify
Standards define specific performance thresholds for parameters like insertion loss, return loss, and crosstalk at defined frequencies. When your installation meets these thresholds, you have test data that proves the system can support 10-Gigabit Ethernet or higher rather than simply hoping it will hold up under real traffic.
That test report also protects you if a network problem surfaces six months after commissioning. You can point to certified results and rule out cabling as the cause, which saves time and avoids costly disputes between vendors over who is responsible for the failure.
A standards-compliant cabling system hands you documented evidence of performance, not just an assumption that everything was done correctly.
Compliance, warranties, and long-term value
Most major cable and connector manufacturers tie their product warranties directly to ANSI/TIA-568 compliance. Install outside the standard and you may void the 25-year system warranty before the job is even done. Clients in healthcare, government, and hospitality sectors often require proof of standards compliance as a contractual condition, especially on projects that involve federal funding or accreditation requirements.
Systems built to current specifications can be upgraded, certified, and expanded without replacing the entire cabling plant, which protects the long-term value of the infrastructure. Your client gets more useful life from the investment, and you build the kind of trust that brings repeat work and referrals over the long run.
How ANSI/TIA-568 structures a building cabling system
ANSI/TIA-568 divides a commercial building into a defined set of cabling subsystems, each with specific rules for cable types, maximum distances, and connection methods. Understanding this hierarchy tells you exactly where each cable segment belongs and how it connects to the rest of your infrastructure.
The six subsystems

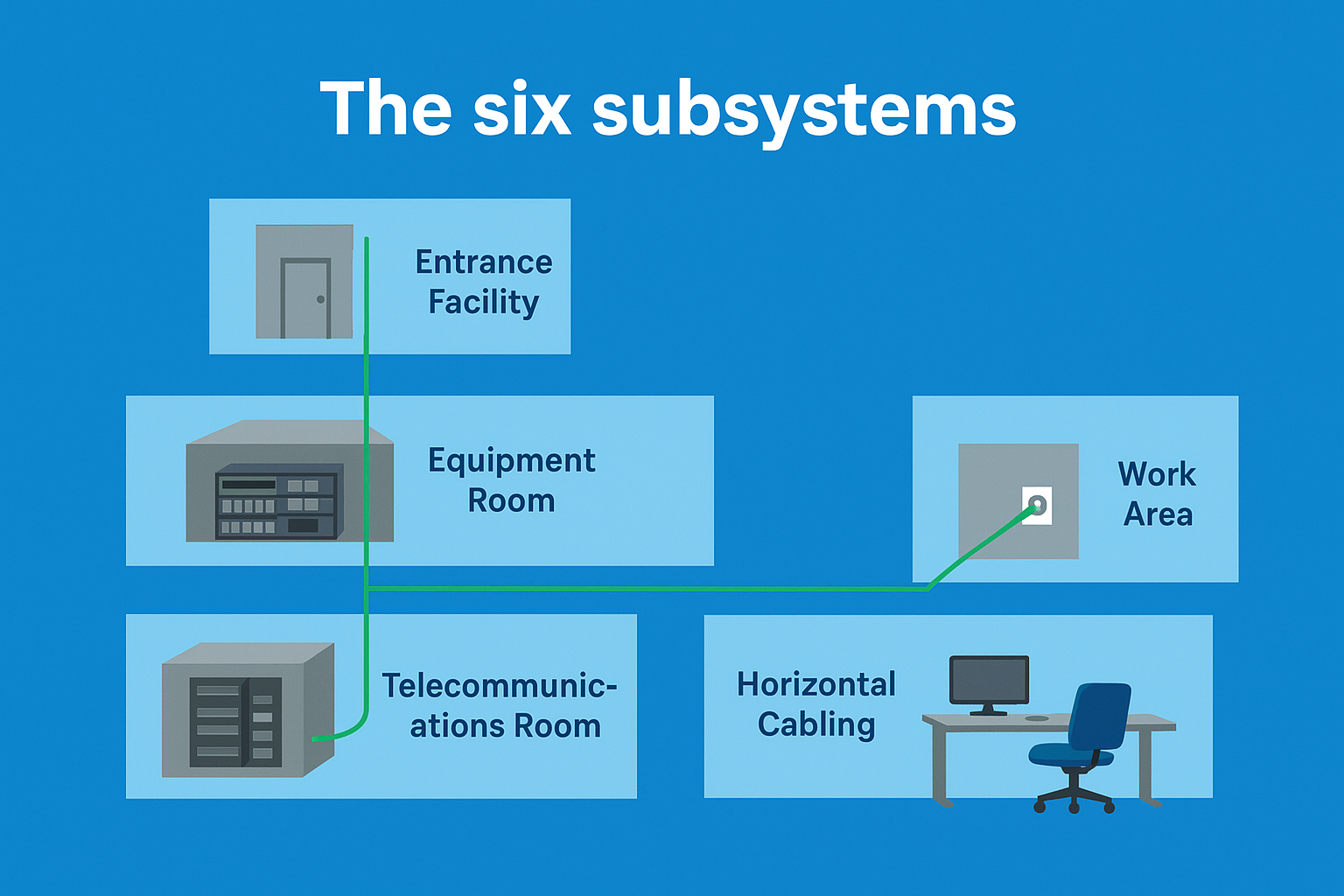

The standard breaks a building cabling system into six functional areas: the entrance facility, equipment room, backbone cabling, telecommunications room (or floor distributor), horizontal cabling, and the work area. Each subsystem has a clear role. The entrance facility is where outside plant cables from carriers or campuses terminate and transition to inside plant wiring. Equipment rooms house your central cross-connect hardware and active network gear, while telecommunications rooms serve as the floor-level distribution point connecting backbone runs to horizontal cable.
Keeping these subsystems distinct during design prevents the common mistake of mixing backbone and horizontal infrastructure, which creates certification failures and limits future upgrades.
Horizontal and backbone distance limits
Horizontal cabling runs from the telecommunications room to each work area outlet, and ANSI/TIA-568 caps this segment at 90 meters for copper regardless of cable category. That limit preserves enough overhead for the patch cords on each end while keeping total channel length within performance specifications. Backbone cabling connects equipment rooms to telecommunications rooms and follows separate distance rules based on the application, ranging from 100 meters for copper backbone runs to several kilometers for single-mode fiber.
These distance limits are not suggestions. Exceeding them degrades signal quality in ways that telecommunications cabling standards testing will catch immediately, and your client ends up with failed reports that require re-pulls or additional closets to resolve before the system can be certified.
How to design and install to ANSI/TIA-568
Designing to ANSI/TIA-568 starts well before you pull a single cable. Your design documents need to account for pathway routing, closet locations, and outlet density based on the standard’s subsystem framework. Get those decisions right on paper, and the physical installation follows a clear, repeatable process that produces certifiable results.
Start with a complete site survey
A thorough site survey is the foundation of any compliant installation. Walk the building and document ceiling heights, pathway obstructions, and the location of each telecommunications room relative to the work areas it will serve. This lets you verify that every horizontal run stays within the 90-meter copper limit before you commit to closet placement and cable routing paths.
During the survey, confirm that your telecommunications rooms meet the standard’s minimum space and environmental requirements, including adequate cooling, grounding provisions, and rack clearances. Skipping this step leads to installations where active equipment overheats or conduit fills before the project is half complete.
A site survey that catches a single oversized horizontal run saves you a costly re-pull and a failed certification report later.
Follow the pathway and space requirements
Telecommunications cabling standards specify that horizontal pathways must support your planned cable loads without exceeding fill ratios or bend radius limits. Design your conduit, cable tray, and J-hook spacing to those limits from the start, and document every pathway decision in your as-built drawings.
During installation, maintain the cable’s specified bend radius and pair twist rates all the way to the termination point. Untwisting pairs beyond the standard’s tolerance at a punch-down block or keystone jack is one of the most common causes of crosstalk failures on certification tests. Train your crew to work to those specifications on every single termination, not just the ones you plan to test first.
Testing, documentation, and related TIA standards
Once your installation is complete, field testing is what confirms your work meets the spec. Every channel needs to be tested with a calibrated field tester running the appropriate limits for your cable category before you hand the project over to your client.
Certifying your installation
Testing to ANSI/TIA-568 requires your tester to run the correct suite for each link type. For copper, you measure insertion loss, near-end crosstalk, and return loss against the standard’s published performance limits. Every link that passes creates a saved result you deliver as documented proof of compliance, and failures point you to the exact termination or cable run causing the problem so you fix the specific issue rather than guessing.
Deliver a complete, organized test report at project closeout – it protects both parties and confirms the system meets the standard.
Fiber runs require measuring insertion loss and optical return loss against TIA-568.3 limits using the correct reference method for your connector type. Document pass and fail results for every link, including the test limits used and the tester firmware version, so your report holds up if anyone audits the installation later.
Documentation and related standards
As-built drawings and labeled records for every outlet, patch panel port, and cable run are required under TIA-568.1 and TIA-606. Your client’s facilities team depends on these records to manage moves, additions, and changes for years after your crew leaves the site. Keep digital copies organized and easy to locate.
Several companion standards work directly alongside TIA-568. TIA-569 covers pathways and spaces, TIA-606 governs administration and labeling, and TIA-607 addresses grounding and bonding. Aligning your project with all of these produces a complete telecommunications cabling standards installation, not just one that passes the cable tests while missing critical requirements elsewhere.
Next steps
Telecommunications cabling standards give your project a clear framework from first design decision to final test report. When you apply ANSI/TIA-568 correctly, every subsystem, cable type, distance limit, and documentation requirement works together to produce infrastructure that performs, certifies, and holds its value over the long term. Skip any piece of that framework and you trade short-term convenience for expensive problems that show up at the worst possible moment.
Your next move is to take these requirements into your actual project planning. Confirm your closet locations meet the 90-meter horizontal limit, select the right cable category for your target application, and build your test and documentation plan before the first cable goes in the ground. If you want experienced professionals who design and install to these standards across healthcare, commercial, hospitality, and government environments, contact Trindom Global to discuss your project requirements directly.
