Every network starts with cables, connectors, and pathways, but how they’re organized makes the difference between an infrastructure that scales and one that falls apart. If you’ve been asking what is structured cabling, the short answer is this: it’s a standardized method of designing and installing cabling infrastructure so that your entire network, data, voice, video, runs through an organized, predictable system rather than a tangled mess of point-to-point connections.
Without a structured approach, even well-funded networks become difficult to troubleshoot, expensive to expand, and risky to maintain. That’s a problem whether you’re running a hospital, a hotel, or a multi-family residential campus. Structured cabling gives you a backbone that supports current operations and future growth, all while reducing downtime and simplifying day-to-day management.
At Trindom Global, structured cabling design and installation is core to what we do. We build these systems across healthcare, commercial, hospitality, and government environments, from network backbone and headend buildouts to full integration with existing IT infrastructure. This article breaks down the components, standards, and benefits of structured cabling so you can understand exactly what goes into a system built to last.
What structured cabling is and how it works
Structured cabling is a unified cabling infrastructure that supports multiple hardware uses, including data, voice, video, and building management systems, within a single organized framework. Rather than running separate, dedicated cables for each device or application, structured cabling uses a defined architecture where all cables follow consistent pathways, terminate at known points, and connect through a central distribution system. The result is a network foundation that technicians can read, test, and modify without guesswork.
A structured cabling system treats your entire building as one connected infrastructure rather than a collection of isolated, undocumented connections.

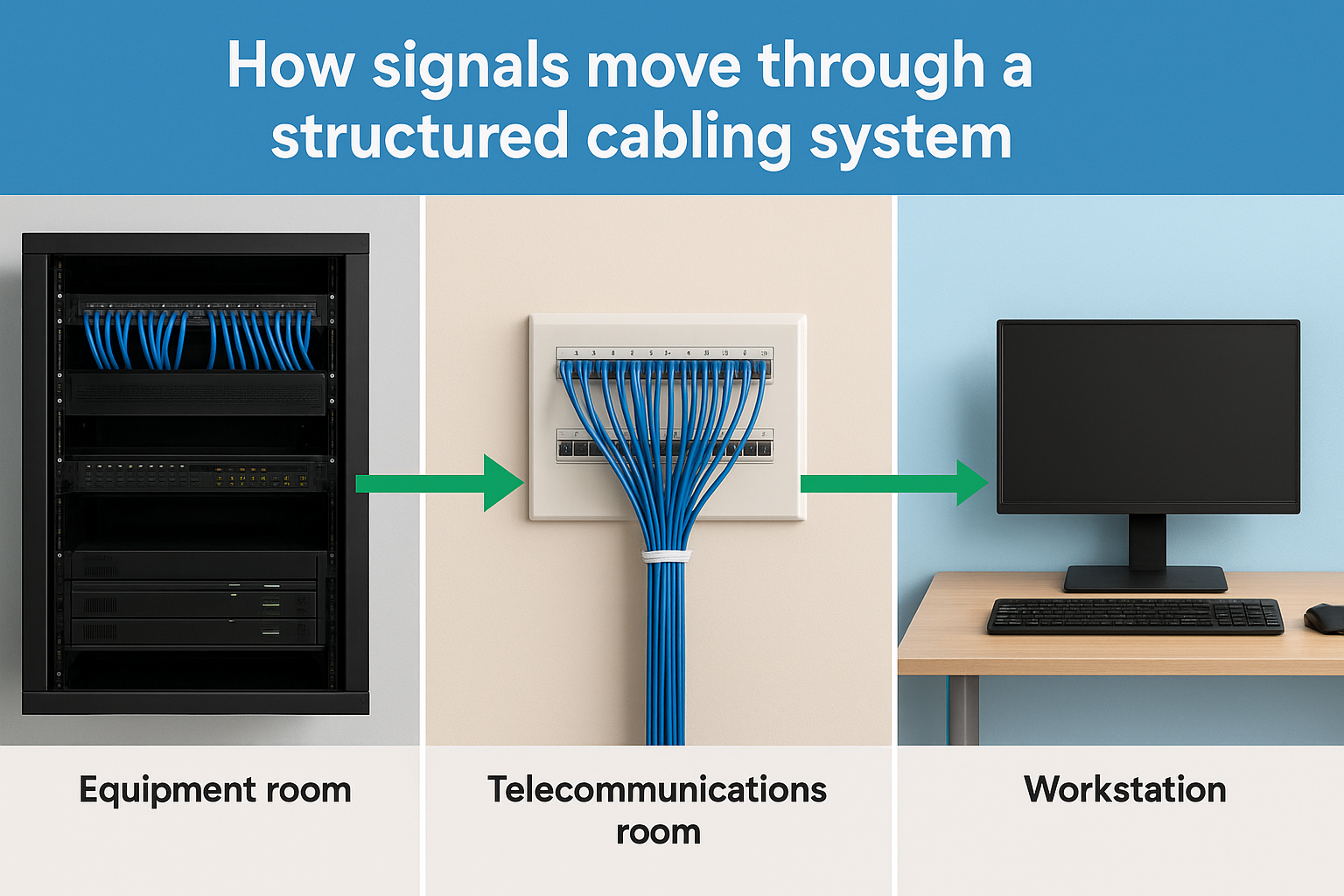

How signals move through a structured cabling system
Every structured cabling system routes signals through a hierarchy of distribution points, starting from an equipment room or data center, then out to telecommunications rooms on each floor, and finally to individual workstations or devices. This path runs through horizontal cabling (from the telecom room to each wall outlet) and backbone cabling (between the main equipment room and the telecom rooms on each floor). When you plug a device into a wall outlet, that connection traces back through patch panels, switches, and ultimately to your main distribution frame.
The system relies on standardized connectors and cable categories, such as Cat6 or Cat6A for copper runs, or single-mode fiber for longer distances, to ensure each segment performs predictably. Because every connection terminates at a labeled, known patch panel location, your IT team can reroute, add, or remove devices without disturbing wall or ceiling cable runs. That keeps disruption minimal and turnaround fast when changes are needed.
Point-to-point wiring vs. structured cabling
To fully understand what is structured cabling and why it matters, contrast it with the alternative. Point-to-point wiring connects each device directly to its destination, a workstation to a switch, a printer to a router, with no central organization and no shared termination points. This approach works when you have a small number of devices, but it creates compounding problems over time: every new device adds another unique cable run, and you eventually end up with overlapping, unlabeled cables that are difficult to audit, trace, or troubleshoot.
Structured cabling eliminates that problem by routing everything through defined termination points from day one. When you need to move a workstation, replace a switch, or expand into an additional floor, the infrastructure already supports it. Your technician patches a cable at the panel rather than pulling new runs through conduit, which saves both time and labor cost over the full life of the system. That efficiency compounds as your organization grows.
Why structured cabling matters for businesses
When you understand what is structured cabling, the business case becomes clear immediately. Disorganized cabling is not just an aesthetic problem; it creates real operational risk. When cables are unlabeled and routes are undocumented, a single failed connection can take hours to trace, and adding new equipment means sending a technician into walls and ceilings rather than making a quick patch panel change.
A well-built structured cabling system pays for itself through reduced labor hours and faster incident response over its 10 to 15 year lifespan.
Reliability and troubleshooting
Structured cabling gives your IT team a documented map of every connection in your building. When something goes wrong, technicians can isolate the problem at the patch panel rather than tracing cables through walls and ceiling tiles. That reduction in mean time to repair translates directly into less downtime, which matters most in high-stakes environments like hospitals, hotels, and government facilities where network outages carry real operational and financial consequences.
Every cable run, port, and patch point carries a label and a documented location, so your team never has to guess which cable connects where. That clarity keeps your staff efficient and reduces the chance of accidental disconnections during routine maintenance.
Scalability and future-proofing
Your cabling infrastructure needs to support business change without requiring a full rebuild. Structured cabling systems are designed with growth in mind, using a tiered distribution architecture that lets you add workstations, floors, or entire buildings by extending the existing framework rather than starting from scratch.
Choosing higher-category cables, such as Cat6A, during initial installation also gives your infrastructure headroom for faster network speeds down the line, so you are not locked into the limitations of the cabling you laid today.

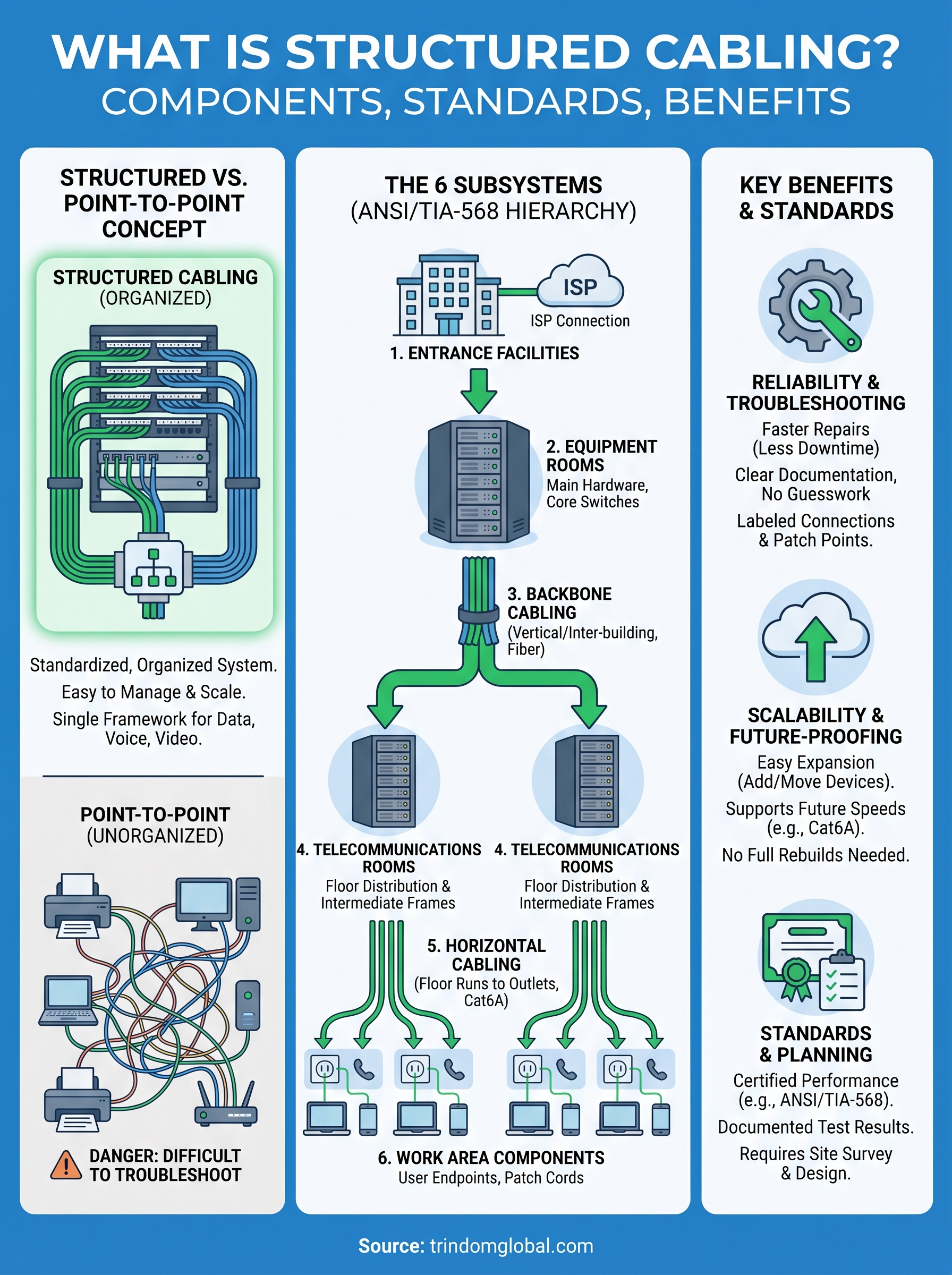

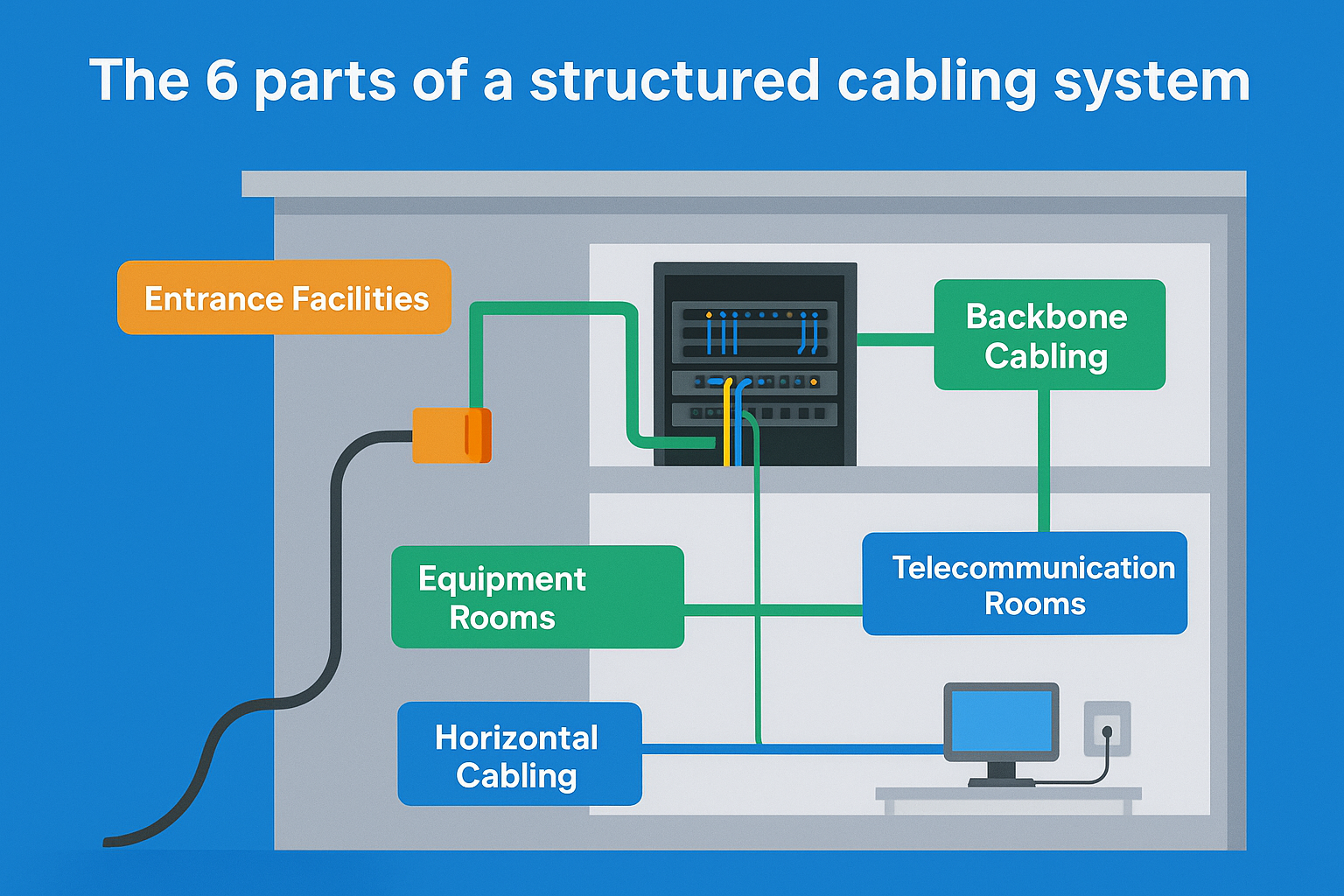

The 6 parts of a structured cabling system
Understanding what is structured cabling starts with recognizing its six defined subsystems. ANSI/TIA-568 breaks every structured cabling installation into these components, and each one has a specific function in moving signals from your network equipment to your end devices. Together, they form a complete, end-to-end infrastructure.
Getting each subsystem right during installation prevents bottlenecks and performance gaps that are costly to fix after the fact.
The six subsystems are:
- Entrance Facilities: The point where outside cables, such as from your ISP or telecom provider, enter the building and connect to your internal network.
- Equipment Rooms: Centralized spaces that house your main network hardware, including servers, core switches, and main distribution frames.
- Backbone Cabling: The high-capacity cable runs connecting equipment rooms to telecommunications rooms across floors or buildings, typically using fiber.
- Telecommunications Rooms: Floor-level spaces that house intermediate distribution frames and connect backbone cabling to horizontal runs.
- Horizontal Cabling: The cable runs from each telecommunications room to individual work area outlets, typically copper Cat6 or Cat6A.
- Work Area Components: The cables, adapters, and connectors at each user endpoint that link devices to the wall outlet.
How these subsystems connect in practice
Each subsystem hands off to the next in a linear path. Your signal travels from the entrance facility through equipment rooms, up backbone cabling, into telecommunications rooms, across horizontal runs, and finally reaches your device at the work area. No subsystem works in isolation, which is why a weak link at any single point affects the performance of your entire network.
Planning these subsystems in sequence during the design phase also prevents expensive rework. When each layer is properly specified and installed before the next begins, your team avoids conflicts between cable pathways, equipment placement, and wall finish schedules.
Structured cabling standards and key requirements
Standards are what separate a properly engineered cabling system from one that just happens to work for now. When you understand what is structured cabling at a technical level, the standards behind it, primarily ANSI/TIA-568 in the United States and ISO/IEC 11801 internationally, define exactly how every component must perform and how each subsystem connects. Following these standards protects your investment and ensures your system qualifies for manufacturer warranties and third-party certification.
Certified structured cabling systems carry documented test results for every cable run, giving you proof of performance rather than a promise.
ANSI/TIA-568 and what it covers
ANSI/TIA-568, published by the Telecommunications Industry Association, sets the specifications for commercial building telecommunications cabling across the US. It defines exactly what your installation must deliver to qualify as compliant, including:
- Cable types and minimum performance grades for each subsystem
- Connector and hardware specifications for patch panels, outlets, and jacks
- Channel length limits, including the 90-meter permanent link cap for horizontal copper runs
- Testing procedures that every run must pass before project sign-off
Your contractor should provide certified test reports for every cable run before you accept the finished installation. Those reports are your documentation that the system performs to spec, and you will want them on hand for any future troubleshooting, warranty claims, or building audits.
Cable categories and performance tiers
Selecting the right cable category determines your current bandwidth capacity and your ability to support faster speeds without re-pulling cable later. Cat6A has become the recommended baseline for new commercial installations because it sustains 10 Gbps across the full 100-meter horizontal run and supports high-wattage Power over Ethernet applications for devices like wireless access points, IP cameras, and digital signage. Cat6 remains a cost-effective option for lower-demand environments, but the price difference between the two categories is small compared to the labor cost of an upgrade down the road. For backbone runs connecting equipment rooms to telecom rooms across floors, single-mode or multimode fiber handles the longer distances and higher throughput that copper cannot sustain. Locking in the right tier during the design phase is significantly cheaper than reworking your infrastructure once walls and ceilings are finished.
How to plan and install structured cabling
Planning a structured cabling project starts well before anyone pulls a single cable. The most common mistakes in these installations happen during the design phase, not the physical installation, so investing time upfront protects your budget and project timeline from preventable problems.
Skipping a proper site survey before installation is the fastest way to recreate the same disorganized infrastructure you were trying to replace.
Start with a site survey and design
Before you can apply what is structured cabling in the context of your specific building, you need a complete picture of your physical environment. A thorough site survey documents your floor plan, existing pathways, conduit availability, and equipment room locations so your designer can map a cabling architecture that fits your actual space. This step also identifies conflicts between cable routes and existing mechanical, electrical, or plumbing systems before they become on-site problems that delay your schedule and increase your costs.
Your design should specify cable categories, pathway types, rack layouts, and port counts for every telecom room and work area. Locking those details into a set of drawings before installation begins gives your crew a clear reference and gives you a documented scope to hold them accountable to throughout the project.
Follow the right installation sequence
Installing structured cabling in the correct order prevents rework and keeps your project on schedule. Backbone infrastructure, including conduit, innerduct, and fiber runs, goes in first because those pathways are harder to access once ceilings are closed. Horizontal copper runs follow next, then terminations at patch panels and wall outlets, and finally testing and labeling of every circuit.
Certified testing on every run is not optional. Your contractor should deliver test reports that document attenuation, return loss, and length for each cable before you sign off. Those reports are your proof that the system performs to the standards your project specified, and you will need them for any future audits or warranty claims.
Final takeaways
Understanding what is structured cabling puts you in a better position to make decisions about your network infrastructure that hold up over time. A properly designed and installed structured cabling system gives your organization a documented, organized foundation that reduces troubleshooting time, supports future growth, and meets the performance standards your applications demand. Every component, from backbone cabling to work area outlets, serves a specific purpose in that framework, and cutting corners on any one of them creates problems that compound as your network expands.
Your next step is finding an installation partner who knows how to design and build these systems correctly the first time. Certified technicians, documented test results, and standards-compliant installation are non-negotiable if you want a system that performs and lasts. If your organization needs structured cabling designed and installed by an experienced team, contact Trindom Global to discuss your project requirements.
